Lewmar Ocean Series Hatch Flat Bases.

$649.95

~~$782.95~~ $649.95

Sold out

-17%

Shipping calculated at checkout.

Low stock: 3 left

Size: 10 10 20 30 60

Description

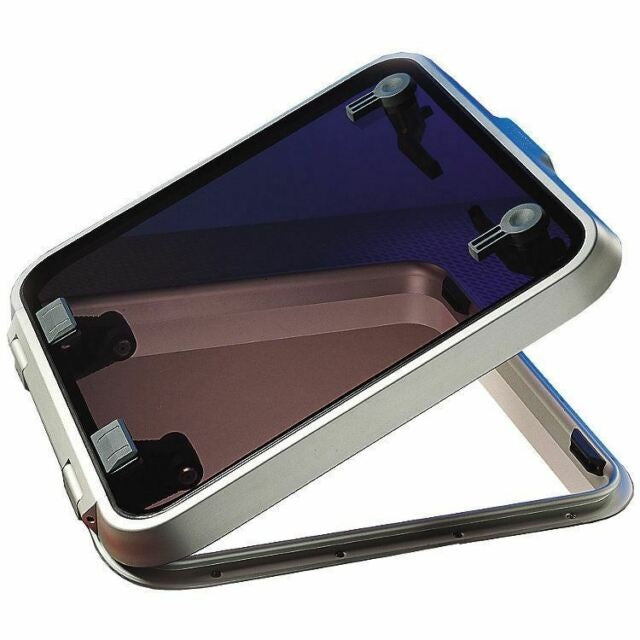

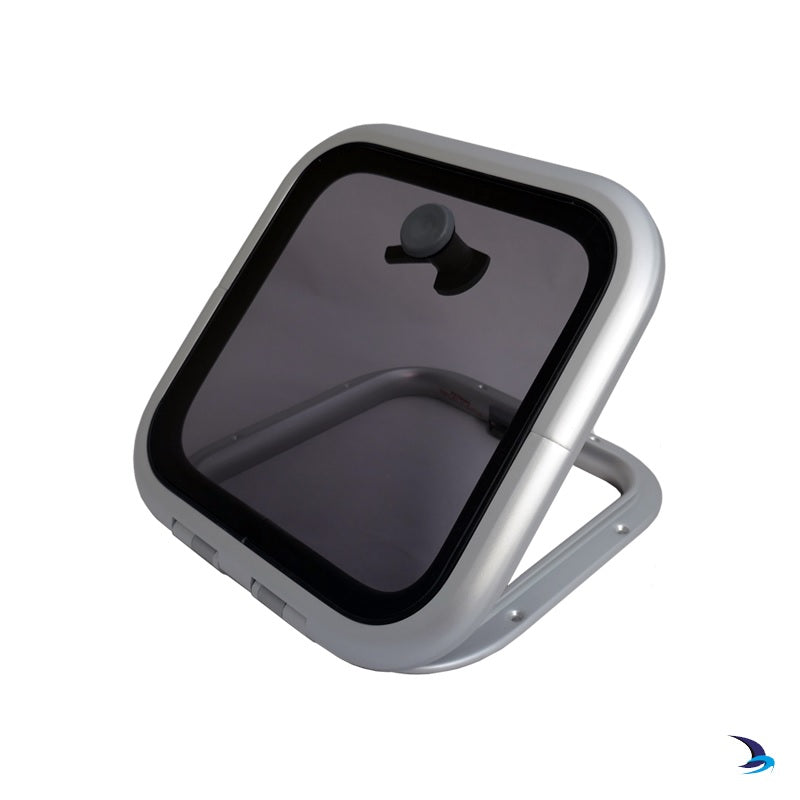

Lewmar Ocean Series Hatch Flat Bases

Models:

Size 10 – Ocean Hatch Flat Base (39610050)
Size 20 Ocean Hatch Flat Base (39620050)
Size 30 Ocean Hatch Flat Base (39630050)
Size 60 – Ocean Hatch Flat Base (39660050)

Product Description

The Lewmar Ocean Series Hatch Flat Bases offer durable mounting solutions for deck hatches, designed to fit flat surfaces with a maximum tolerance of +/- 1mm using M6/1/4" hinge fasteners and 5mm CSK No.10 UNC/2 BA lower frame screws. Featuring Smoke Grey acrylic in 3/8" or 1/2" thickness, these flat bases provide rugged protection with anodised aluminium frames for corrosion resistance and friction levers that hold lids open up to 95°. Note that flat base hatches are incompatible with trim kits or roller shades, making them ideal for straightforward installations on decks, coachroofs, cockpits, and transoms in CE Area 2 applications.

Key Features

Fits flat surfaces with +/- 1mm tolerance for secure mounting
Friction levers hold hatch open in any position up to 95°
Anodised aluminium frame resists marine corrosion
Smoke Grey acrylic color with 3/8" or 1/2" window thickness
Hinge fastening: M6 / 1/4" screws; lower frame: 5mm CSK No.10 UNC / 2 BA
Suitable for CE Area 2 (deck, coachroof, cockpit, transom); no trim kits or roller shades

Comparison Table

Feature	Size 10	Size 20	Size 30	Size 60
Hatch Weight (lb)	5.77	-	-	17.6
Acrylic Thickness (in)	3/8	3/8	3/8	1/2
Length X (in)	12 3/4	-	15 3/8	22 5/8
Width Y (in)	12 3/4	-	20 1/2	22 5/8
Height Z (in)	1 9/16	-	1 9/16	1 11/16
Radii R (in)	2 15/16	-	-	3
Hinge Length HX (in)	5 7/16	-	13 3/16	14 7/16
Hinge Width HY (in)	10 1/16	-	-	19 3/4
Cut-Out Length X1 (in)	10 1/16	-	12 11/16	19 3/4
Cut-Out Width Y1 (in)	10 1/16	-	17 13/16	19 3/4
Cut-Out Radii R1 (in)	1 9/16	-	1 9/16	1 9/16
