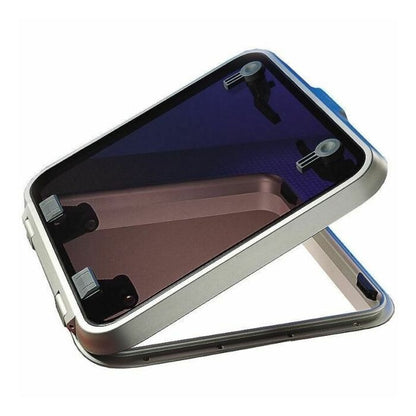

Lewmar Ocean Series Hatch Flange Bases.

$795.95

~~$795.95~~ $795.95

Sold out

Shipping calculated at checkout.

Low stock: 3 left

Size: 20 20 30 40 44 50 60 70

Description

Lewmar Ocean Series Hatch Flange Bases

Models:

Size 20 – Ocean Hatch Flange Base
Size 30 – Ocean Hatch Flange Base
Size 40 – Ocean Hatch Flange Base
Size 44 – Ocean Hatch Flange Base
Size 50 – Ocean Hatch Flange Base
Size 60 – Ocean Hatch Flange Base
Size 70 – Ocean Hatch Flange Base

Product Description

The Lewmar Ocean Series Hatch Flange Bases provide a robust mounting foundation for premium deck hatches, designed to fit flat surfaces with a maximum tolerance of +/- 1mm for secure installation. Featuring a 1" flange in Smoke Grey acrylic with 3/8" or 1/2" window thickness depending on size, these bases support M6/1/4" hinge fasteners and 5mm CSK No.10 UNC/2 BA lower frame screws. Engineered for marine environments, they offer precise cut-out dimensions, rounded radii for smooth deck integration, and varying weights to suit different vessel applications from small cabins to large deckhouses.

Key Features

Fits flat surfaces with +/- 1mm tolerance for reliable mounting
1" flange design in Smoke Grey acrylic color
Hinge fastening: M6 / 1/4" screws
Lower frame fastening: 5mm CSK No.10 UNC / 2 BA screws
Precise cut-out dimensions with rounded radii for clean installation
Acrylic window thickness: 3/8" (smaller sizes) or 1/2" (larger sizes)

Comparison Table

Feature	Size 20	Size 30	Size 40	Size 44	Size 50	Size 60	Size 70
Hatch Weight (lb)	6.04	9.09	10.5	11	16.1	17.6	23.8
Acrylic Thickness (in)	3/8	3/8	3/8	1/2	1/2	1/2	1/2
Length X (in)	10 1/8	15 3/8	19 1/8	20 1/16	17 1/2	22 5/8	27 5/16
Width Y (in)	16 3/16	20 1/2	19 1/8	20 1/16	22 5/8	22 5/8	27 5/16
Height Z (in)	1 9/16	1 9/16	1 9/16	1 11/16	1 11/16	1 11/16	1 11/16
Radii R (in)	2 11/16	2 15/16	2 15/16	3	3	3	3
Hinge Length HX (in)	8 7/8	13 3/16	11 3/4	11 7/8	14 7/16	14 7/16	19 3/16
Hinge Width HY (in)	7 15/16	12 7/8	16 9/16	17 3/8	14 13/16	19 15/16	24 1/2
Cut-Out Length X1 (in)	13 11/16	18	9/16	17 3/8	19 15/16	19 15/16	24 1/2
Cut-Out Width Y1 (in)	1 7/16	1 11/16	1 11/16	1 11/16	1 11/16	1 11/16	1 11/16
Cut-Out Radii R1 (in)	3/16	3/16	3/16	3/16	3/16	3/16	3/16
