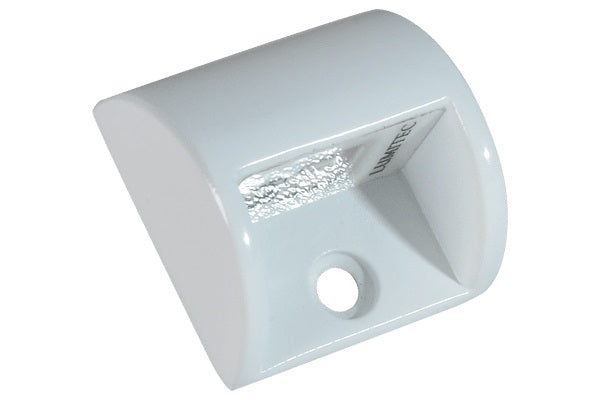

The Lumitec Andros courtesy/accent lights are compact, attractive, and remarkably bright, originally designed for livewells but ideal for versatile uses such as under cabinets, lockers, and toe kicks. Constructed with durable polycarbonate and fully water-sealed, they are IP67 compliant, suitable for both wet and dry locations. Available in polished or white powder-coated 316 stainless steel finishes, they offer reliable performance and ease of installation.
Key Features
Small, compact design with high light output (45 lumens).
IP67 waterproof and weather-resistant for marine environments.
Available in white, blue, and red LED color outputs.
Operates at 10-16 V DC with a low current draw of 45mA at 12V.
Rated power consumption of 0.55 Watts.
Color temperature (CCT) of 5000 K, CRI over 70.
Third-party dimmer compatible and color match commitment for consistent styling.
Mounting hole diameter of 5/16".
Suitable for wet or dry installations with silicone gasket included.
Specifications Comparison
Feature
Model 101046 White
Model 101047 Blue
Model 101048 Red
Lumens
45
45
45
Voltage
10-16 V DC
10-16 V DC
10-16 V DC
Current Draw @ 12V
45 mA
45 mA
45 mA
Rated Watts
0.55 W
0.55 W
0.55 W
CCT
5000 K
5000 K
5000 K
CRI
70+
70+
70+
IP Rating
IP67
IP67
IP67
Mounting Hole Diameter
5/16"
5/16"
5/16"
Depth
0.78 in (1.98 cm)
0.78 in (1.98 cm)
0.78 in (1.98 cm)
Dimensions (Diameter)
0.88 in (2.22 cm)
0.88 in (2.22 cm)
0.88 in (2.22 cm)
What’s in the Box
Four Lumitec Andros Courtesy/Accent LED Lights of the selected color
