Lumitec Illusion Down Light Warm White Spectrum LED Reflector Series 10-30v.

$196.19

~~$196.19~~ $196.19

Sold out

Shipping calculated at checkout.

Low stock: 6 left

Reflector Type: Black Black White Mirror

Description

Lumitec Illusion Down Light Warm White Spectrum LED Series

Model Numbers and Finishes:

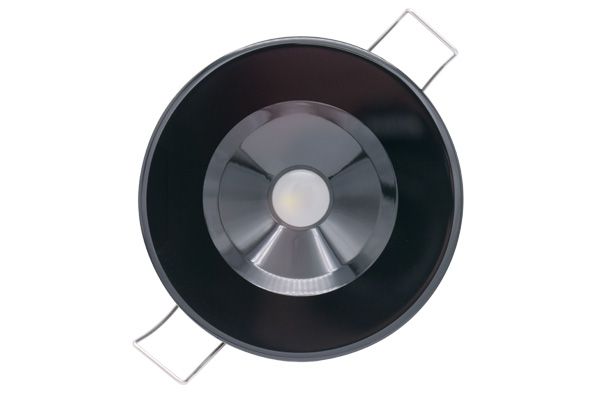

117155 — Black Reflector, Warm White Spectrum LED

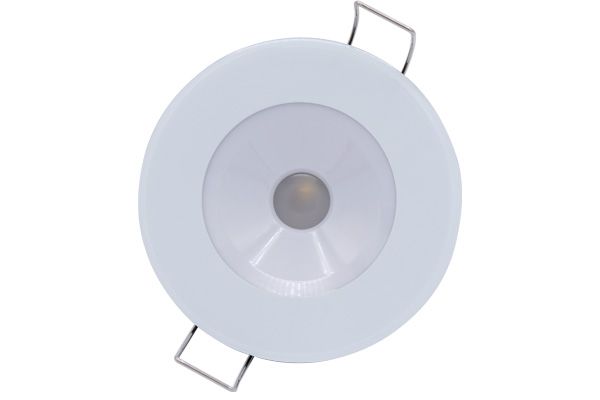

117125 — White Reflector, Warm White Spectrum LED

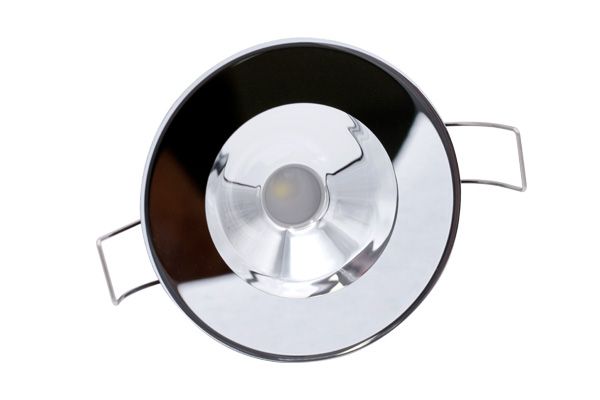

117145 — Mirror Reflector, Warm White Spectrum LED

Overview:

The Lumitec Illusion Down Light Warm White Spectrum LED series redefines marine interior lighting with an ultra-thin, wafer-like profile for a seamless and modern look. Using chemically hardened glass and a shallow housing, the design reduces the mounting depth to fit tight interior spaces like hardtops and ceilings. A proprietary finishing process allows unique face finishes—from bezel illusions to wood grain and metallic colors—to match contemporary boat aesthetics. The butterfly mount clip system ensures quick installation with no exposed fasteners. This series is PLI-enabled for advanced "Sound-to-Light" control when paired with Lumitec's Poco module, offering intuitive, customizable lighting scenes. Fully IP67 rated, it is rugged and versatile.

Key Features:

Ultra-thin profile: 0.7" (1.77 cm) depth for flush, minimalist installation.
Color output: Warm white spectrum RGBW LEDs offering advanced color control.
Chemically hardened, thin glass face for durability and reduced housing depth.
Butterfly mount clip system for easy, no-exposed-fastener installation.
High color rendering index (CRI) of 80+ providing natural, rich light.
Customizable face finishes to blend with boat design themes.
Compatible with Lumitec Poco system for digital lighting control and sound synchronization.
Rated for 10–30 V DC operation; IP67 rated for water resistance.
Operating temperature range: -31°F to 131°F (-35°C to +55°C).
Timed toggled protocol enabled; no third-party dimmer compatibility.
Color Match Commitment ensures uniformity in multi-light setups.

Specifications Comparison

Feature	117155 Black Reflector	117125 White Reflector	117145 Mirror Reflector
Lumens	250	285	310
Voltage	10-30 V DC	10-30 V DC	10-30 V DC
Current Draw 12 V	430 mA	430 mA	430 mA
Current Draw 24 V	230 mA	230 mA	230 mA
Rated Power	6 W	6 W	6 W
Correlated Color Temperature	3000 K	3000 K	3000 K
Color Rendering Index (CRI)	80+	90+	90+
Depth (Mounting Profile)	0.7 in (1.77 cm)	0.7 in (1.77 cm)	0.7 in (1.77 cm)
Diameter	2.5 in (6.35 cm)	2.5 in (6.35 cm)	2.5 in (6.35 cm)
Mount Style	Butterfly Clip	Butterfly Clip	Butterfly Clip
IP Rating	IP67	IP67	IP67
Timed Toggled Protocol	Yes	Yes	Yes
Third Party Dimmer Compatible	No	No	No
Color Match Commitment	Yes	Yes	Yes
PLI Enabled	Yes	Yes	Yes
