Lumitec Mantis Dock Light Series.

$581.79

~~$581.79~~ $581.79

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Lights: 1- Light 1- Light 3-Lights

Description

Lumitec Mantis Dock Light Series

Model Numbers:

101526 — Mantis Add-on Dock Light (1- Light)
101525 — Mantis Dock Light Kit (3-light system)

Overview:

The Lumitec Mantis Dock Light system leverages the advanced technology of the SeaBlaze Quattro Spectrum underwater light, enhancing it with an innovative Zip-Mount™ universal mounting system and a fully sealed rear to prevent water intrusion. The lights mount easily to square or round pilings up to 14" diameter or 12" square, even those with typical fenders. The Mantis lights provide powerful illumination of more than 2,000 lumens per light, with full RGBW color cycling, bright white, or user-selected colors. Installation is quick (under 90 minutes) and simple, requiring no permits in many areas. The dock light kit is UL listed and includes a weatherproof IP68-rated power supply and all necessary wiring, connectors, mounts, and hardware, designed for easy plug-and-play installation.

Key Features:

High output of 2,000+ lumens per light, with mesmerizing RGBW full-color cross-fade and bright white modes.
Innovative Zip-Mount™ system allowing rapid mounting on various piling types and sizes.
Completely sealed IP68-rated design with heat-tempered glass and marine-grade bronze housing.
Self-contained with no external control boxes required.
Operates on 10-30 V DC with 25 W power consumption per light.
Easy installation with integrated 25' cables for each light in the kit.
Compatible with adding a fourth light to the 3-light kit for expanded lighting.
Operating temperature range: -31°F to 131°F (-35°C to +55°C).
3-year warranty provided.

Specifications Comparison

Feature	101526 Mantis Add-on Light	101525 Mantis Dock Light Kit (3 lights)
Lumens (White)	2,000+	2,000+ per light, 6,000+ total
Voltage	10-30 V DC	10-30 V DC
Current Draw 12 V	2.1 A	2.1 A per light
Current Draw 24 V	1.1 A	1.1 A per light
Rated Power	25 W	25 W per light
Color Output	Full Spectrum RGBW	Full Spectrum RGBW
Mounting Hole Diameter	0.5"	0.5"
Depth	0.71" (1.8 cm)	0.71" (1.8 cm)
Diameter	3.85" (9.8 cm)	3.85" (9.8 cm)
IP Rating	IP68	IP68
Mount System	Zip-Mount™	Zip-Mount™
Timed Toggled Protocol	Yes	Yes
Third Party Dimmer Compatible	No	No
Color Match Commitment	N/A	N/A

What’s in the Box:

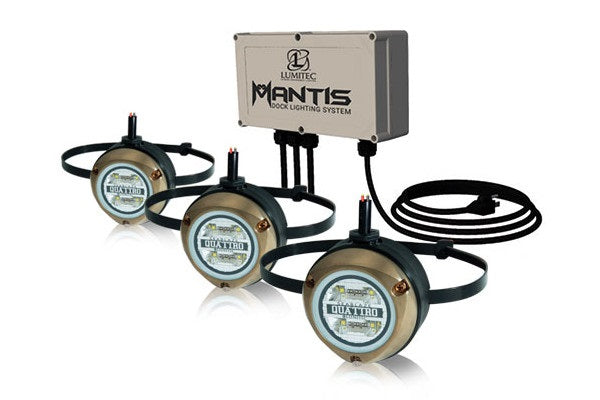

For 101525 Mantis Dock Light Kit:
- Three full-color RGBW dock lights with integrated 25' cables
- Three Zip-Mount universal light mounting straps
- AC to DC power converter enclosed in a weatherproof housing
- All necessary mounting hardware and connectors

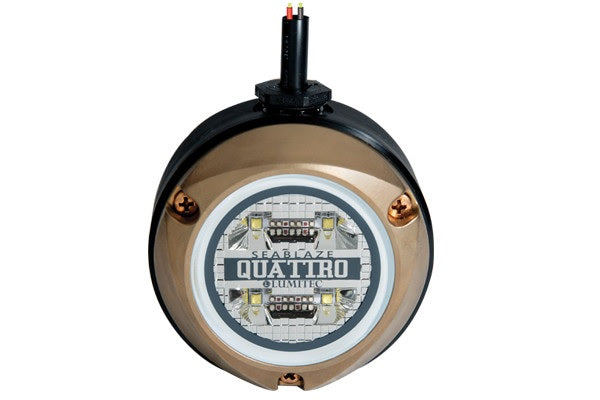

For 101526 Mantis Add-on Dock Light:
- One full-color RGBW dock light
- Zip-Mount mounting hardware
- Installation accessories
