Lumitec Maxillume H120 Flood White LED Series 12/24v.

Lumitec Maxillume H120 LED Flood Light Series

Model Numbers and Finishes:

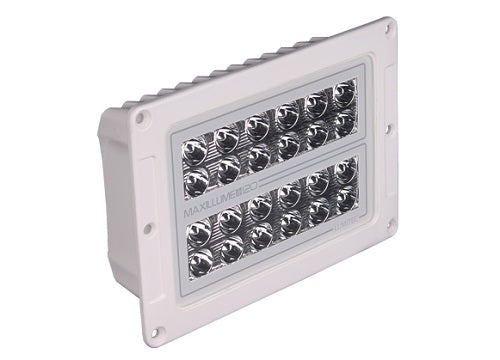

• 101348 — White Housing, White Light Flush Mount

• 101347 — Black Housing, White Light Trunnion Mount

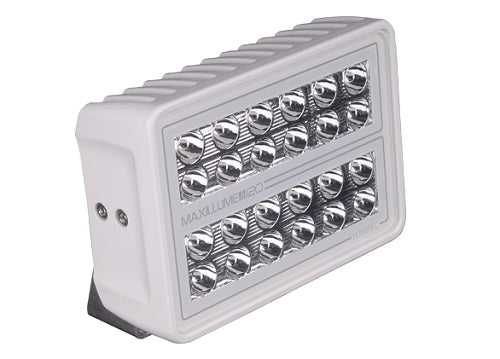

• 101346 — White Housing, White Light Trunnion Mount

Overview:

The Lumitec Maxillume H120 raises the standard in DC powered LED work lights, delivering over 12,000 true lumens in a rugged, heavy-duty aluminum housing. Built to replace traditional quartz floodlights like the GE "QF" series, it is completely water sealed (IP67), shock and vibration tested, and engineered for the toughest conditions. Each light is hand assembled and tested in the USA, making it ideal for demanding marine, industrial, and commercial applications. Intelligent internal controls include timed toggled protocol and dimmer support (except black finish model), combined with Lumitec’s color match commitment to ensure a consistent appearance.

Key Features:

• Ultra-high white LED output at 12,000 lumens with 70+ CRI.

• Robust heavy-duty aluminum housing in white or black finishes.

• Power requirements: 10-30 V DC, 120W load (10A @ 12V, 5A @ 24V).

• IP67 water sealed and vibration/shock tested for extreme durability.

• Timed toggled protocol enabled for advanced control.

• Third-party dimmer compatibility available on white housing models.

• Color Match Commitment ensures uniform fixture appearance across installations.

• Sizes approximately 8" wide x 6" high x 3.3" deep (flush mount) or 8.3" wide x 3.25" deep (trunnion mount).

Specifications Comparison

What’s in the Box:

• Lumitec Maxillume H120 LED Work Light (specific model)

• Mounting hardware suitable for flush or trunnion mount

• Installation instructions
