Lumitec Maxillume H60 Flood White LED - White Finish 12/24V.

$573.39

~~$570.99~~ $573.39

Sold out

Shipping calculated at checkout.

Low stock: 4 left

Mount: Trunnion Mount Trunnion Mount Flush Mount

Description

Lumitec Maxillume H60 LED Flood Light Series

Model Numbers:

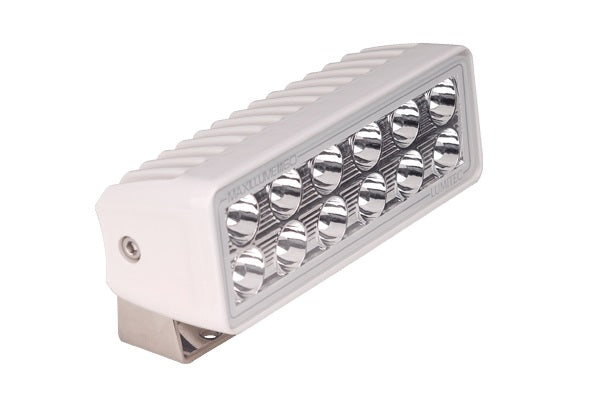

101334 — White LED Trunnion Mount

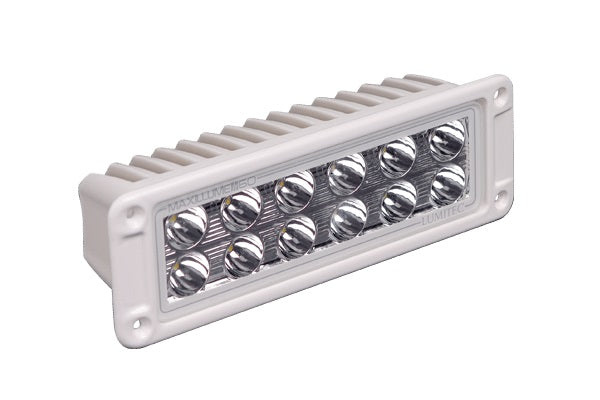

101336 — White LED Flush Mount

Overview:

Lumitec’s Maxillume H60 flood lights deliver exceptional performance with over 6,000 true lumens of white LED output, doubling the brightness of previous Maxillume models. Trusted by top custom yacht builders and the US Coast Guard, these flood lights incorporate internal dimmer control and new mounting options for versatile installation. Designed, hand-assembled, and rigorously tested in the USA, the Maxillume H60 offers robust, high-output illumination suitable for demanding marine environments.

Key Features:

Extreme high output LED flood light with 6,000 lumens at 70+ CRI.
Operates on 10-30 V DC with power consumption of 60W.
Internal dimmer control with timed toggled protocol support for advanced light management.
Not compatible with third-party dimmers.
IP67 rated for marine durability and wide operating temperature range from -31°F to 131°F (-35°C to 55°C).
Color Match Commitment ensures uniform appearance across fixtures.
Two mounting options: trunnion mount (model 101334) and flush mount (model 101336).
Hand-assembled in the USA for quality and performance assurance.

Specifications Comparison

Feature	101334 Trunnion Mount	101336 Flush Mount
Lumens (White)	6000	6000
Voltage	10-30 V DC	10-30 V DC
Current Consumption 12 V	5A	5A
Current Consumption 24 V	2.5A	2.5A
Rated Power	60 W	60 W
Correlated Color Temperature	5000 K	5000 K
Color Rendering Index (CRI)	70+	70+
Timed Toggled Protocol	Yes	Yes
Third Party Dimmer Compatible	No	No
Color Match Commitment	Yes	Yes
Mounting Hole Diameter	N/A	7.2" x 2.44"
Height	7.13 in (18.11 cm)	8.3 in (21.08 cm)
Width	3.15 in (8 cm)	2.72 in (6.92 cm)
Depth	2.6 in (6.6 cm)	2.5 in (6.33 cm)
