Lumitec Maxillume TR150 Flood White LED - White Housing 12/24v.

Lumitec Maxillume TR150 LED Flood Light Series

Model Numbers:

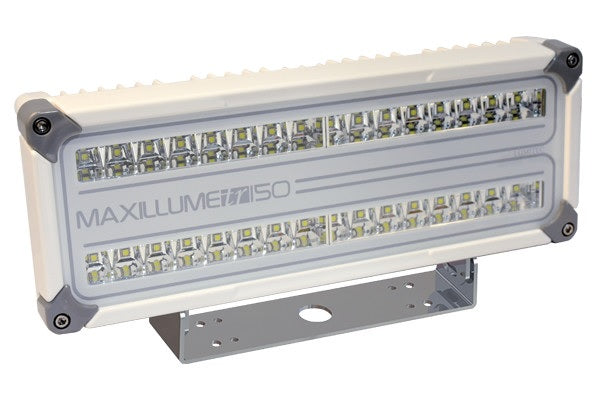

• 101413 — Trunnion Mount

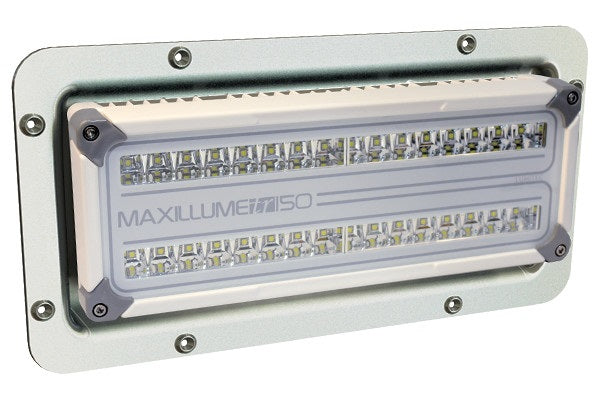

• 101414 — Semi-Recess Mount

Overview:

The Lumitec Maxillume TR150 LED Flood Lights deliver rugged, reliable high-output illumination with 20,000 measured lumens, setting a new standard for 150W LED spot/flood work lights. Engineered for demanding industrial and marine environments, these lights enhance safety and productivity with powerful, wide-area lighting. They are fully sealed to IP67 standards and tested to military specifications for shock and vibration resilience. Designed for versatility, the series offers both trunnion mount and semi-recessed mount options.

Key Features:

• Ultra-bright 20,000 lumen LED output with 70+ CRI for clear, accurate lighting.

• Operates from 10-36 V DC with a power rating of 210W.

• High current draw of 17.5A at 12V DC, requiring robust power wiring.

• Completely water-sealed to IP67 standards for marine and outdoor durability.

• Tested to military specifications for shock and vibration resistance.

• Broad operating temperature range from -31°F to 131°F (-35°C to +55°C).

• No timed toggled protocol or third-party dimmer compatibility.

• No color match commitment.

• Available in two mounting styles: trunnion mount and semi-recess mount.

Specifications Comparison

What’s in the Box:

• Lumitec Maxillume TR150 LED Flood Light (specific model)

• Mounting hardware suitable for trunnion or semi-recess installation

• Installation instructions
