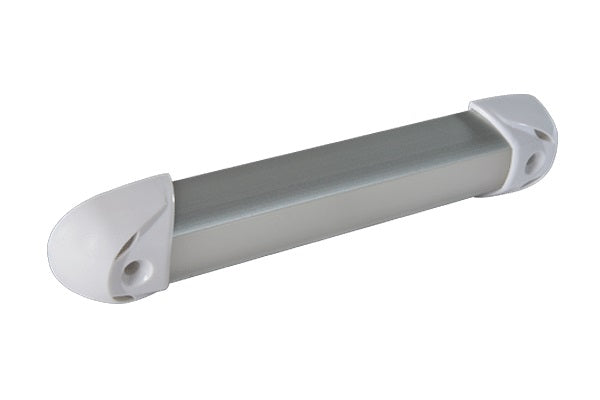

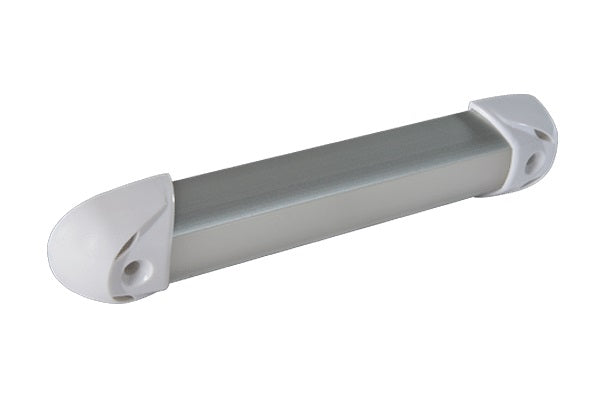

Lumitec Mini RAIL2 6in LED Light Series Brushed Finish.

Lumitec Mini RAIL2 6" LED Utility Light Series

Models and Colors:

• 101078 — White LED Light

• 101079 — Blue LED Light

• 101080 — Red LED Light

• 101241 — Warm White LED

• 101545 — Mini RAIL2 LED Utility Light (various colors)

Overview

The Lumitec Mini RAIL2 6" series delivers a small, attractive, and powerful LED utility light that fits both interior and exterior applications with an IP67 water-sealed rating for durability. Constructed to offer high lumen output with efficient power consumption, these lights provide versatile color options including warm white, neutral white, blue, red, and RGBW spectrum in some models. The compact design makes it ideal for tight spaces requiring quality illumination, with a consistent output and wide applicability.

Key Features

• Bright output ranging from 95 to 145 lumens depending on the model and color.

• Water-sealed and IP67 compliant for reliability in marine environments.

• Voltage range: 10-30 V DC.

• Low current draw for energy efficiency.

• Rated wattage around 2-4 watts.

• High Color Rendering Index (CRI) of 70+ to 90+ for natural color appearance.

• Rated operating temperature from -31°F to +131°F (-35°C to +55°C).

• Third-party dimmer compatible for flexible lighting control.

• Color Match Commitment for uniform appearance in multi-light installations.

• Mounting hole diameter of 5/32".

• Dimensions approximately 5.9" length, 1.11" width, and 0.6" depth.

Specifications Comparison

What’s in the Box

• Lumitec Mini RAIL2 6" LED Utility Light (model-specific)

• Mounting hardware

• Installation instructions
