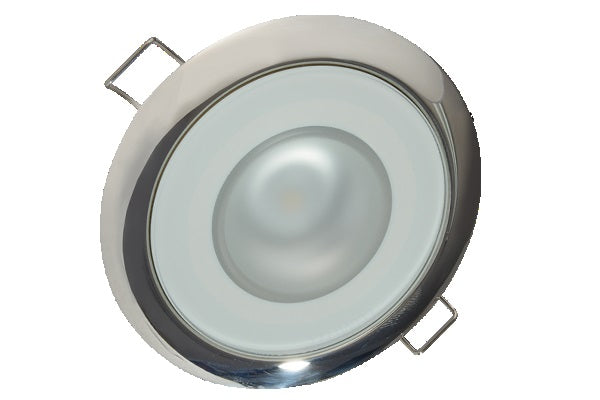

Lumitec Mirage Down Light LED Series- Polished Finish.

Lumitec Mirage Down LED Light Series Polished Finish

Models:

• 113119 —  Warm White LEDs

• 113118 —  Red/White/Blue LEDs

• 113117 — Spectrum RGBW LEDs

Overview

Lumitec’s Mirage LED down lights are top performers in the down light category, offering extraordinary brightness with a slim profile that outperforms comparable 20W halogen lamps by up to 300%. Fully sealed and IP67 rated, these lights are perfect for a wide range of indoor and outdoor overhead lighting applications. The Mirage series offers architectural-grade, high CRI warm white, multi-color white/blue/red LEDs, and full-color Spectrum RGBW options, enabling nearly limitless color possibilities for sophisticated lighting designs.

Key Features

• Highly efficient with lumens ranging from 226 to 305 depending on the model.

• Slim design profile minimizes space requirements while maximizing illumination.

• Fully sealed and IP67 rated for marine and outdoor durability.

• Output options include warm white (90+ CRI), multi-color white/blue/red, and full RGBW spectrum.

• Voltage range of 10-30 V DC, with power consumption between 6 and 9 watts.

• Operating temperature between -31°F to +131°F (-35°C to +55°C).

• Timed Toggled Protocol (TTP) enabled.

• Compatible with third-party dimmers for flexible lighting control.

• Color Match Commitment ensures consistent illumination across lights.

• Requires a 2" mounting hole.

Specifications Comparison

What’s in the Box

• Lumitec Mirage Down Light (selected model)

• Mounting hardware

• Installation instructions
