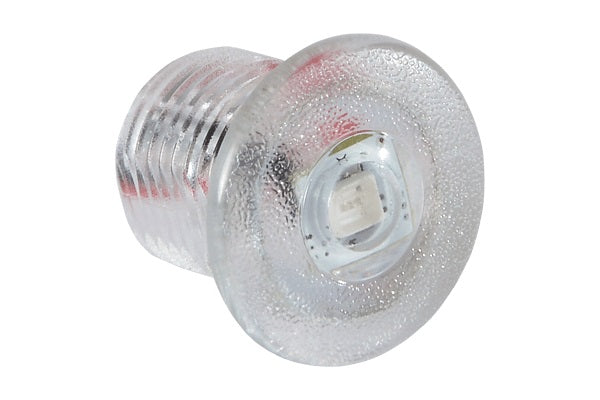

The Lumitec Newt is a tiny but powerful LED light designed originally for livewells but popular as an under-cabinet, storage locker, toe-kick, or overhead light. Its small size and high output, combined with ease of installation, make it a versatile choice. Constructed from durable polycarbonate, the Newt is fully water-sealed and IP67 compliant, suitable for wet or dry locations. Includes a silicone gasket for reliable sealing.
Key Features
Compact and lightweight polycarbonate housing.
IP67 waterproof rating for marine and harsh environments.
Available in White, Blue, Red, and Warm White color outputs.
Voltage range: 10-16 V DC.
Low current draw: 45 mA at 12 V DC.
Rated wattage: 0.55 W.
Color temperature (CCT): 5000 K for White/Blue/Red, 3000 K for Warm White.
High Color Rendering Index (CRI): 70+ for White/Blue/Red, 80+ for Warm White.
Third-party dimmer compatible for flexible lighting control.
Mounting hole diameter: 5/8".
Beam type: courtesy and accent light.
Specifications Comparison
Feature
101084 White
101085 Blue
101086 Red
101240 Warm White
Lumens (White)
45
45
45
45
Voltage
10-16 V DC
10-16 V DC
10-16 V DC
10-16 V DC
12V DC Amps
45 mA
45 mA
45 mA
45 mA
24V DC Amps
N/A
N/A
N/A
N/A
Rated Watts
0.55 W
0.55 W
0.55 W
0.55 W
CCT
5000 K
5000 K
5000 K
3000 K
CRI
70+
70+
70+
80+
IP Rating
IP67
IP67
IP67
IP67
Mounting Hole Diameter
5/8"
5/8"
5/8"
5/8"
Depth
0.78" (1.98 cm)
0.78" (1.98 cm)
0.78" (1.98 cm)
0.78" (1.98 cm)
Diameter
0.88" (2.22 cm)
0.88" (2.22 cm)
0.88" (2.22 cm)
0.88" (2.22 cm)
What’s in the Box
Four Lumitec Newt Courtesy/Accent LED Lights of the selected color
