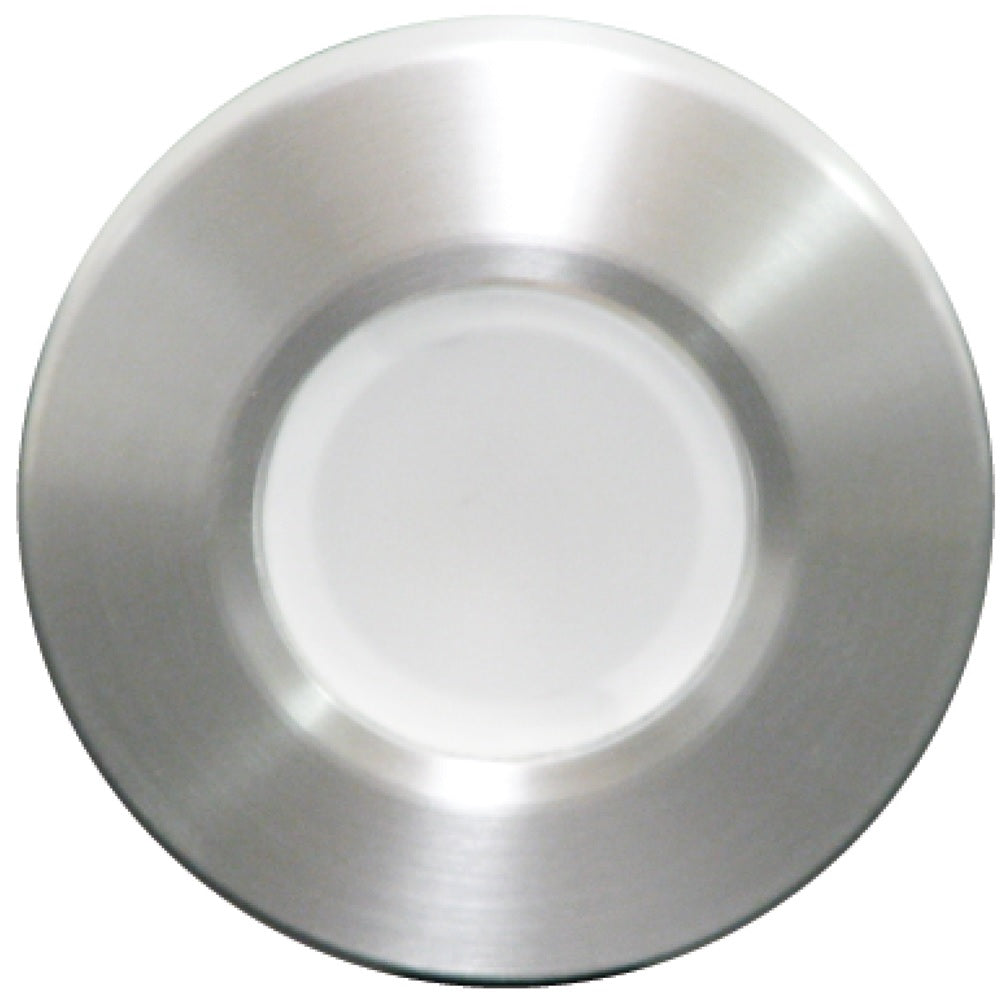

Lumitec Orbit Down Light LED Series - Brushed Finish.

Lumitec Orbit  LED Down Light Series

Model Numbers and Finishes:

• 112503 —  White LED

• 112508 — White/Blue/Red Multi-Color LED

• 112509 —  Warm White LED

• 112507 — Spectrum RGBW LED

Overview:

Lumitec Orbit down lights set a new benchmark for marine LED overhead lighting with class-leading output, weatherproof construction, and the simplest installation in the industry. Featuring a very shallow profile with less than 1/2" mounting depth and a secure composite mounting system, these lights are suitable for interior and exterior marine applications, including salons, staterooms, helm stations, and flybridges. They are fully sealed, IP67 rated for waterproofing, and incorporate intelligent circuitry that offers dimming and multi-color control without the need for external control modules, specialized switches, or additional wiring runs. This allows for easy retrofit into existing switch systems.

Key Features:

• High-quality LED output with lumens ranging from 160 to 187 depending on the model.

• Very shallow mounting depth of 0.75" (1.9 cm) for versatile installation options.

• IP67 waterproof rating for durability in marine environments.

• Intelligent circuitry enabling advanced dimming and multi-color control without extra hardware.

• Compatible with most third-party dimmers.

• Color Match Commitment ensures consistent appearance across fixtures.

• Operating temperature range from -31°F to 131°F (-35°C to +55°C).

• Compact mounting hole diameter of 1 1/4".

Specifications Comparison

What’s in the Box:

• Lumitec Orbit Flush Mount LED Down Light (specific model)

• Composite mounting hardware

• Installation instructions
