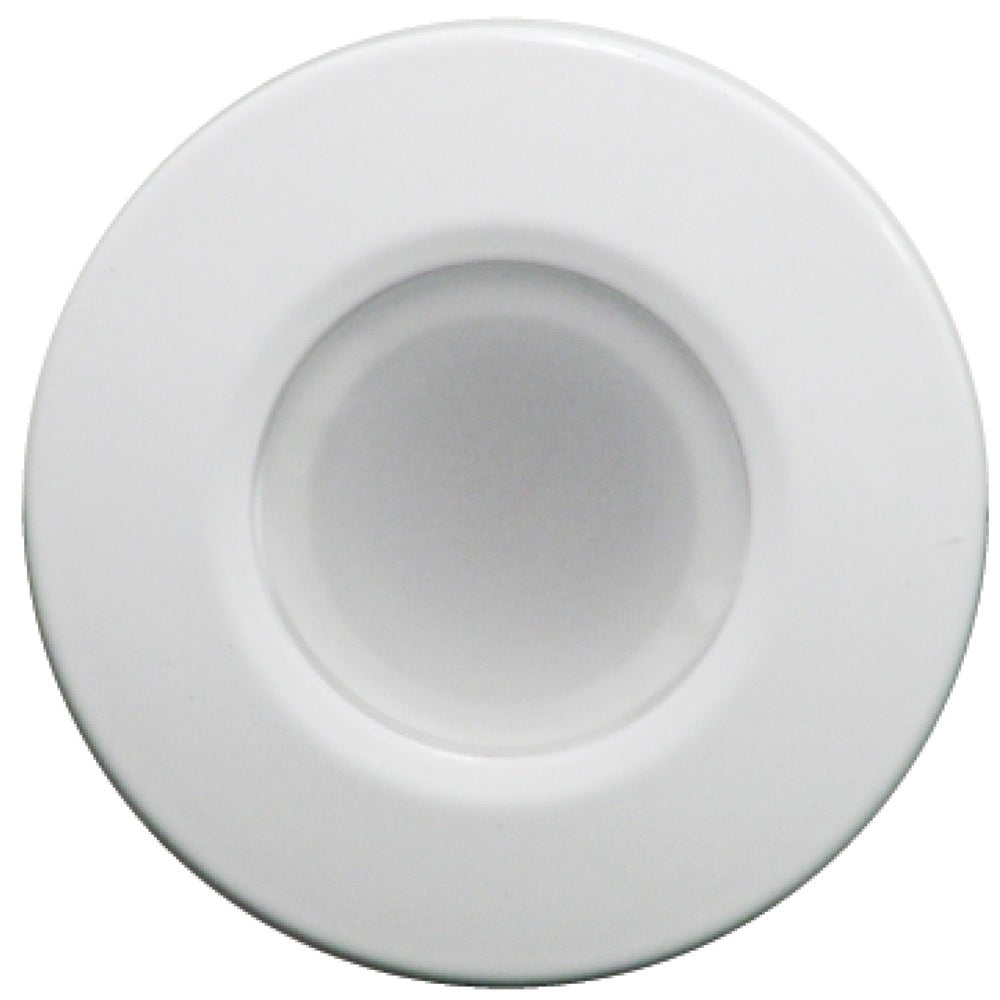

Lumitec Orbit Down Light LED Series- White Finish.

Lumitec Orbit Down LED Light Series

Models:

• 112523 — White LED, White Finish

• 112528 — White/Blue/Red LED, White Finish

• 112520 — Full Spectrum RGBW LED, White Finish

• 112522 — Red/White LED, White Finish

• 112527 — Spectrum RGBW LED, White Finish

• 112529 — Warm White LED, White Finish

Overview

The Lumitec Orbit Down Lights set a new standard for overhead lighting with shallow “less than ½” below mounting surface profiles and weatherproof IP67 rated construction. Designed for both interior and exterior uses aboard vessels, they are ideal for salons, staterooms, helm stations, flybridges, and hard tops. Intelligent internal circuitry enables dimming and multi-color control without requiring external modules, specialized switches, or multiple wire runs. The mounting system is secure yet easy to install.

Key Features

• High lumen outputs ranging from 130 to 160 lumens depending on model.

• Intelligent circuitry for dimming and multi-color control directly from existing switches.

• IP67 water-sealed for reliability in marine environments.

• Available outputs: single white, dual color white/red, white/blue/red, full RGBW spectrum, warm white.

• Voltage: 10-30 V DC, power draw from 290mA to 360mA @ 12V.

• Consistent color rendering index 70+ and correlated color temperature around 5000K.

• Low profile design with secure composite mounting system.

Specifications Comparison

What’s in the Box

• Lumitec Orbit Down Light, model specific

• Mounting hardware

• Installation instructions
