Lumitec PICO Expansion Module Series.

Lumitec Pico Expansion Modules for Poco Digital Lighting Control

Model Numbers:

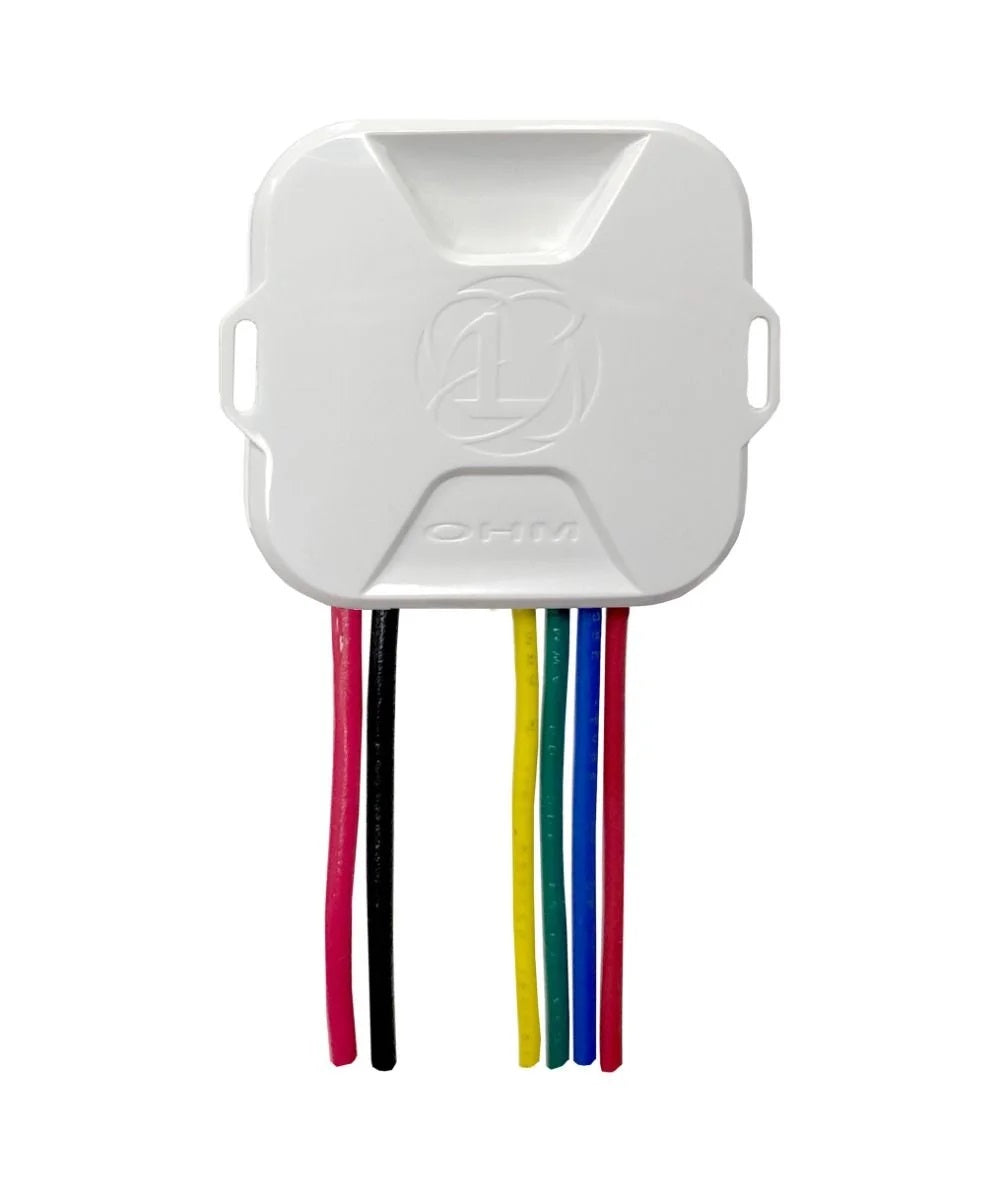

• 101829 — Pico OHM Expansion Module

• 101609 — Pico C4 Expansion Module

• 101873 — Pico C4-MAX Expansion Module

Overview:

Lumitec Pico Expansion Modules significantly extend the capabilities and connectivity of the Poco Digital Lighting Control system, enabling streamlined control of third-party luminaires, lighting accessories, and devices without built-in PLI technology. These modules reduce wiring complexity and installation time, allowing easy integration of RGB or RGBW devices into the Poco ecosystem.

• Pico OHM Expansion Module (101829): Designed for Poco-only control of third-party RGB accessories without timed toggled protocol. It connects directly to accessories such as speakers or cup holders via an easy two-wire system. Sold in packs of four, each module handles a max load of 400mA.

• Pico C4 Expansion Module (101609): Provides Poco or timed toggled protocol (TTP) control of third-party RGB or RGBW accessories, supporting more advanced lighting control and third-party dimmer compatibility.

• Pico C4-MAX Expansion Module (101873): Delivers Poco and TTP control with higher current capacity (10A max per channel), compatible with a wide range of lighting accessories including strip lights and color/intensity control via standard switches on vessels without Poco systems.

Key Features Comparison

What’s in the Box:

• Pico Expansion Modules (pack of 4 for OHM, single unit for C4 and C4-MAX)

• Installation instructions (vary by module and application)
