Lumitec RAIL2 12in Rail Light LED Series Brushed Finish 12/24v.

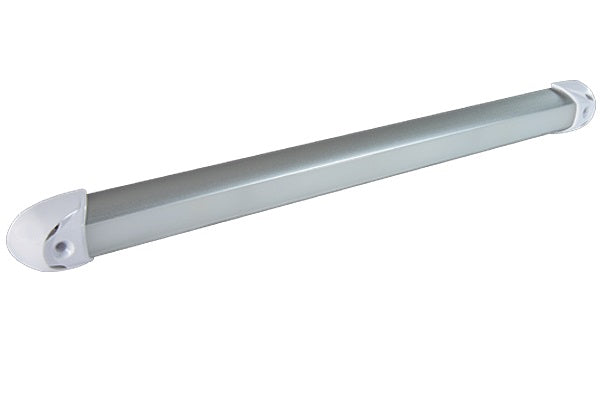

Lumitec RAIL2 12" Rail Light Series

Model Numbers:

• 101242 — Warm White LED

• 101243 — White/Red/Blue LED (3-Color)

• 101283 — Spectrum RGBW LED

Overview:

The Lumitec RAIL2 12" Rail Light series delivers up to 100% greater light output compared to its predecessor, with a sleek, modern design ideal for marine interior and exterior applications. These lights are fully water-sealed and IP67 rated, ensuring suitability for harsh marine environments. Available in warm white with dimming, white/red/blue 3-color, and full spectrum RGBW versions, the Rail2 series provides versatile lighting options for railings, equipment areas, and other installations. The intelligent design includes advanced features such as timed toggled protocol and compatibility with third-party dimmers (except the RGBW model), offering convenient control without external modules.

Key Features:

• High lumen output ranging from 360 to 900 lumens depending on the model.

• Sleek 12-inch linear design with low profile: 1.11" height, 11.72" width, 0.60" depth.

• IP67 water-sealed for exterior and interior marine use.

• Operates on 10-30 V DC with efficient power consumption.

• Timed toggled protocol enabled on all models.

• Third-party dimmer compatibility for warm white and 3-color models.

• Color Match Commitment for consistent fixture appearance.

• Mounting hole diameter 5/32" for secure attachment.

• Wide operating temperature range from -31°F to 131°F (-35°C to +55°C).

Specifications Comparison

What’s in the Box:

• Lumitec RAIL2 12" Rail Light (specific model)

• Mounting hardware

• Installation instructions
