Lumitec Scallop Pathway Light Spectrum Cool White 10-30vDC.

$200.29

~~$200.29~~ $200.29

Sold out

Shipping calculated at checkout.

15 in stock

Housing: Stainless Steel Stainless Steel Bronze

Description

Lumitec Scallop Pathway Light Spectrum RGBW — Cool White

Models:

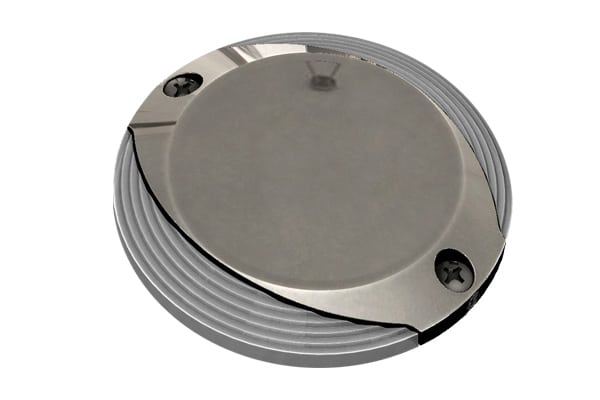

101627 — Stainless Steel Housing

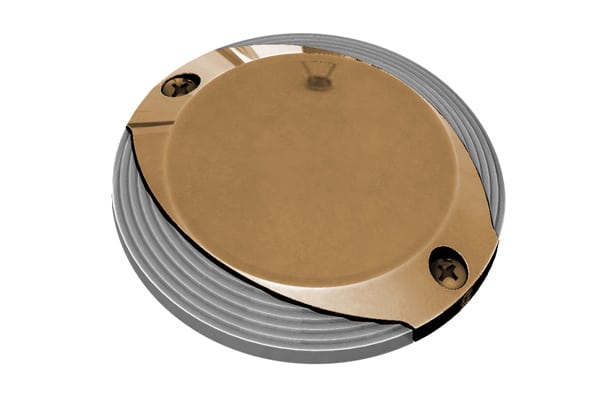

101628 — Bronze Housing

Overview

The Lumitec Scallop Pathway Light is the world's first ADA-compliant, PLI-compatible dock and pathway light featuring a sleek, low-profile design. With a carefully engineered beam angle, it minimizes glare while providing clean illumination of walkways and dock surfaces. Available in polished 316 stainless steel or bronze finishes, the Scallop is fully water-sealed and IP67 rated, designed for durability in marine environments. It integrates seamlessly with Lumitec’s Mantis and Kraken dock lighting systems.

Key Features

ADA compliance and PLI compatibility for enhanced accessibility and control.
Hand-polished 316 stainless steel or bronze finish options for corrosion resistance and aesthetic appeal.
Beam pattern optimized to minimize glare while highlighting pathway surfaces.
Compatibility with 12V-24V DC power supplies, Mantis, and Kraken lighting systems.
Third-party dimmer compatibility and Color Match Commitment for uniform appearance.
IP67 waterproof rating for reliable, marine-grade protection.
Operating temperature range of -31°F to +131°F (-35°C to +55°C).

Specifications Comparison

Feature	Model 101627 (Stainless Steel)	Model 101628 (Bronze)
Lumens (White)	80	80
Voltage	10-30 V DC	10-30 V DC
12V DC Amps	340 mA	340 mA
24V DC Amps	190 mA	190 mA
Rated Watts	5.2 W	5.2 W
CCT	5000 K	5000 K
CRI	70+	70+
Operating Temp Range	-31°F to +131°F (-35°C to +55°C)	-31°F to +131°F (-35°C to +55°C)
Timed Toggled Protocol (TTP)	Yes	Yes
Third Party Dimmer Compatible	Yes	Yes
Color Match Commitment	Yes	Yes
Dimensions (Depth x Diameter)	0.56" x 3.8" (1.42 x 9.65 cm)	0.56" x 3.8" (1.42 x 9.65 cm)
