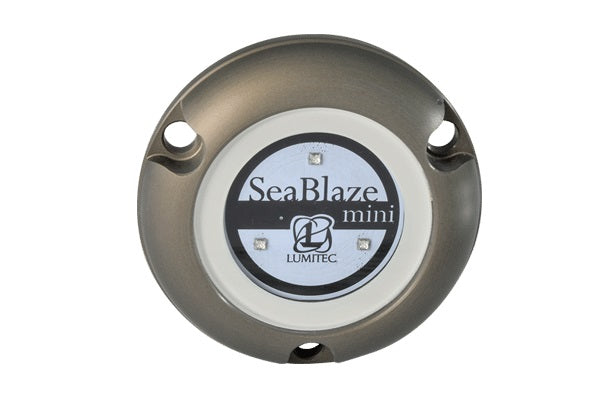

101245 — White LED Underwater Light (sold as a pair)
101246 — Blue LED Underwater Light (sold as a pair)
Overview:
The compact Lumitec SeaBlaze Mini underwater lights offer exceptional value with reliable performance derived from the proven SeaBlaze3 technology platform. Delivering almost 900 lumens for the white model, these lights are ideal for smaller boats such as trailer boats, skiffs, or dinghies. They feature a compact form factor with a shallow profile suitable for tight underwater mounting spaces. With a durable design and easy installation, the SeaBlaze Mini provides years of trouble-free service, sold conveniently as a pair.
Key Features:
White LED model outputs approximately 800 lumens; blue model lumens not specified.
Compact size: White model diameter 2.98" with 0.58" depth; Blue model diameter 3.90" with 1.50" depth.
Marine-grade construction, designed for underwater use on smaller boats.
Operates on 10-30 V DC with 12 W power consumption.
Compatible with third-party dimmers (white and blue models).
No color match commitment or timed toggled protocol.
Small 1/4" mounting hole for secure installation.
Operating temperature range: -31°F to 131°F (-35°C to 55°C).
Specifications Comparison
Feature
101245 White LED Model
101246 Blue LED Model
Lumens (White)
800
N/A
Voltage
10-30 V DC
10-30 V DC
Current Draw 12 V
990 mA
990 mA
Current Draw 24 V
450 mA
450 mA
Rated Power
12 W
12 W
Color Temperature (CCT)
6500 K
N/A
Color Rendering Index (CRI)
70+
N/A
Depth
0.58" (1.48 cm)
1.50" (3.81 cm)
Diameter
2.98" (7.57 cm)
3.90" (9.93 cm)
Mounting Hole Diameter
1/4"
1/4"
Timed Toggled Protocol
No
No
Third Party Dimmer Compatible
Yes
Yes
Color Match Commitment
No
No
What’s in the Box:
Pair of Lumitec SeaBlaze Mini LED Underwater Lights (specific color model)
