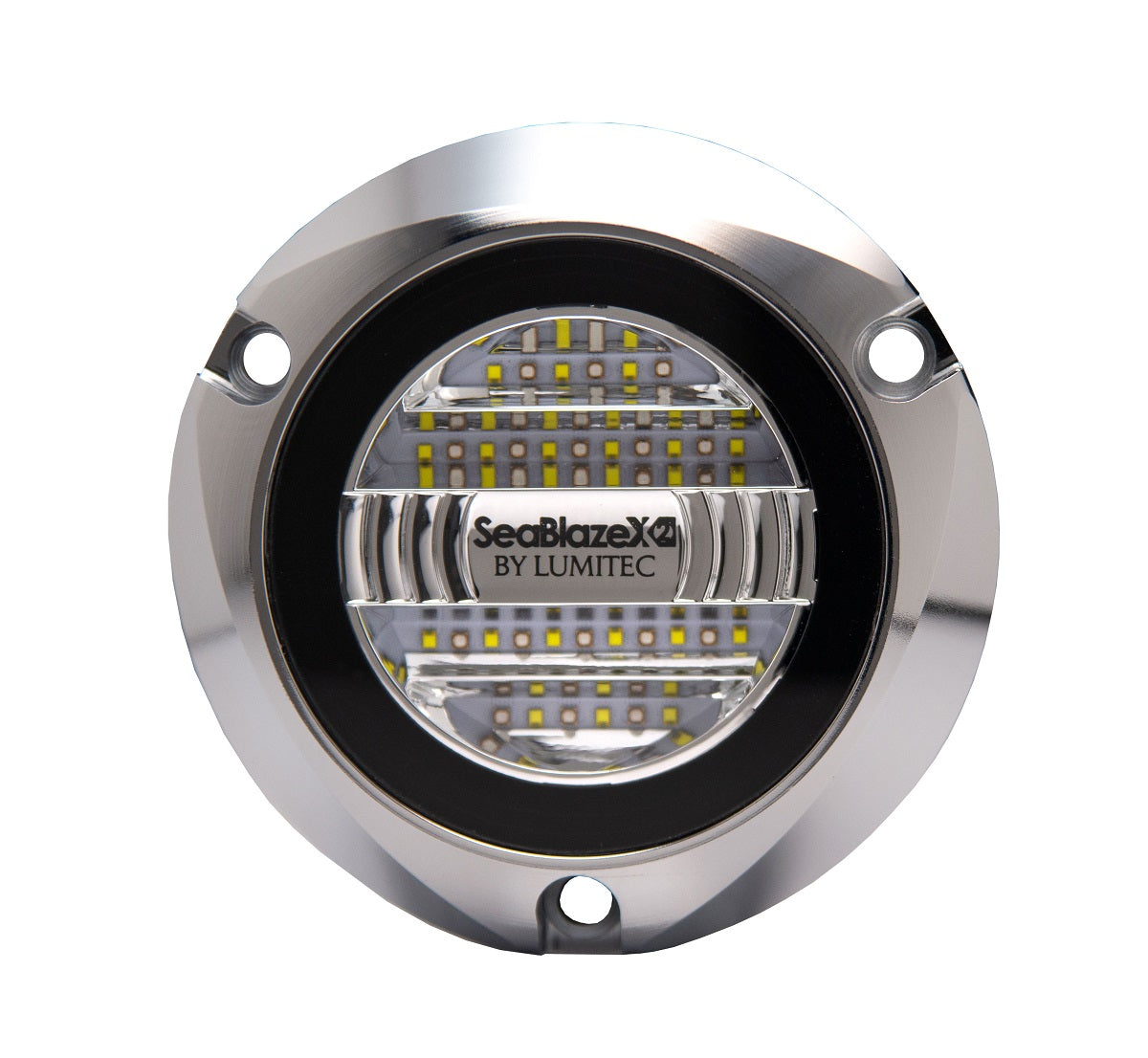

Lumitec Seablaze X2 LED Surface Mount Polished Housing 12/24v.

Lumitec SeaBlazeX2 LED Underwater Light Series

Model Numbers:

• 101592 — Dual-Color LED Underwater Light (White/Blue)

• 101591 — RGBW Spectrum LED Underwater Light

Overview:

The Lumitec SeaBlazeX2 series represents an evolution in underwater lighting, delivering significantly enhanced performance, reliability, and value compared to the original SeaBlazeX. Both the Dual-Color (White/Blue) and RGBW Spectrum models produce more than 6,000 lumens, feature full-color spectrum capabilities or dual-color modes, and boast a color cycle mode for dynamic lighting effects. Engineered with marine-grade bronze housings and heat-tempered glass, these fixtures are fully sealed to IP68 standards for submersion and endure over 2,000 hours of ASTM B-117 salt spray testing for corrosion resistance. Installation is straightforward with a surface mount design requiring only a small 1/2" through-hull hole and simple 3-wire hookup, without needing external controllers.

Key Features:

• High light output exceeding 6,000 integrative sphere-measured lumens (white).

• Dual-Color model offers synchronized white/blue light modes.

• RGBW Spectrum model enables multi-color cycling and full spectrum lighting.

• Built from marine-grade bronze with heat-tempered glass lens.

• IP68 waterproof rating for full submersion durability.

• Easy surface mount installation with no external drivers required.

• Operates on 10–30 V DC, consuming 60 W (5A @ 12 V, 2.5A @ 24 V).

• Operates effectively in temperature range from -31°F to 131°F (-35°C to +55°C).

• Timed toggled protocol supported for advanced control.

• No third-party dimmer compatibility and no color match commitment.

• Proudly designed and manufactured in the USA with a 3-year warranty.

Specifications Comparison

What’s in the Box:

• Lumitec SeaBlazeX2 Underwater Light (specific model)

• Mounting hardware

• Installation instructions
