Maxwell HRC10 12v Horizontal Windlass With Chain & Line.
Couldn't load pickup availability
Description
Description

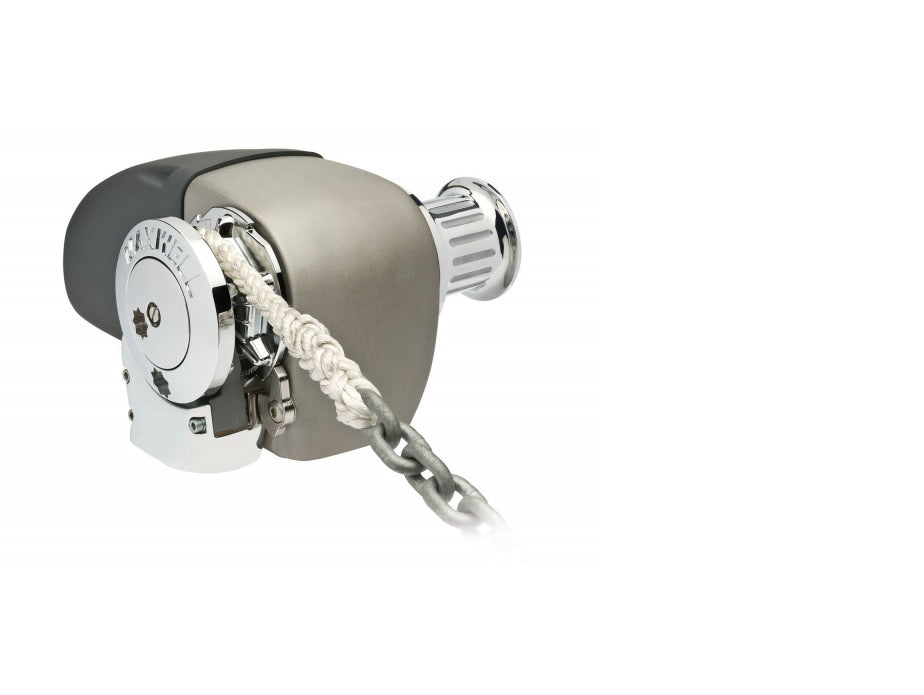

Maxwell HRC10 Series 12V Horizontal Windlass
Models
HRC10812V – 12V Horizontal Windlass for 5/16" Chain & 9/16" Line
HRC101012V – 12V Horizontal Windlass for 9/16" Chain & 5/8" Line
Product Description
Maxwell HRC10 series fully automatic horizontal windlasses effortlessly retrieve and deploy short link chain and three strand/8-braid rope with integrated drum design. Both 12V models deliver 1000W motor power and 700kg maximum pull/lift, with the HRC10812V optimized for 8mm (5/16") chain + 14-16mm (9/16") rope, and HRC101012V for 10mm (9/16") chain + 16mm (5/8") rope, ideal for boats requiring reliable anchoring performance.
Key Features
-
Fully automatic rope/chain retrieval and deployment
-
1000W motor with 700kg maximum pull/lift capacity
-
Integrated drum for secure rope handling
-
12VDC operation
-
Compatible with short link chain and 3-strand/8-braid rope
Comparison Table
| Feature | HRC10812V | HRC101012V |
|---|---|---|
| Chain Size | 8mm (5/16") | 10mm (9/16") |
| Rope Size | 14-16mm (9/16") | 16mm (5/8") |
| Motor Power | 1000W | 1000W |
| Max Pull/Lift | 700kg | 700kg |
| Voltage | 12VDC | 12VDC |
| Drum | Yes | Yes |
What's in the Box
-
HRC10 windlass (model specific)
-
Circuit breaker
-
Reversing solenoid (12V)
-
Up/Down switch panel
-
Clutch release handle
