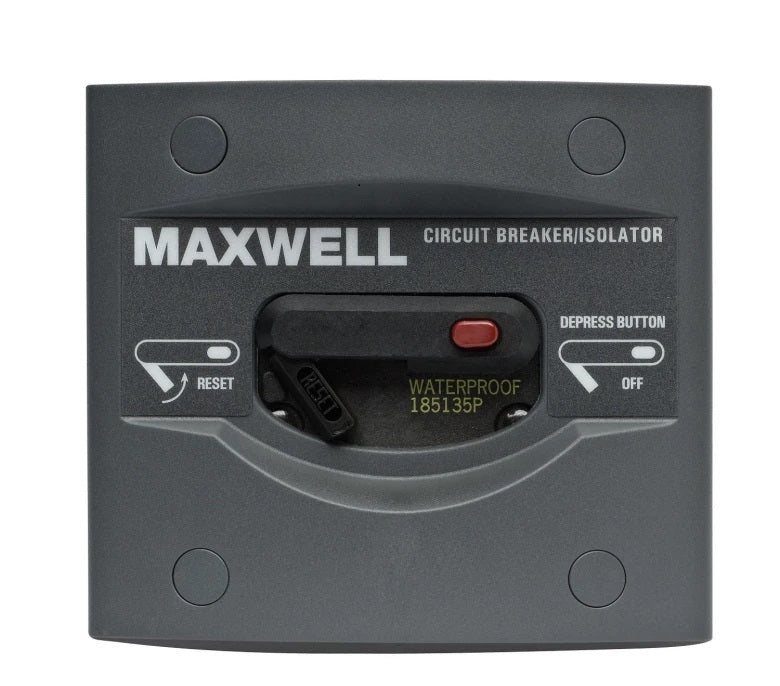

Maxwell P100791 135 Amp Circuit Breaker

Product Description

The Maxwell 135 Amp Circuit Breaker is a marine-grade breaker/isolator panel for windlass protection.

Product Overview

Designed for anchoring systems on boats, it safeguards DC winches against overloads while allowing battery isolation. Ideal for Maxwell 800-3500 series 12V windlasses and 4000 series 24V units in marine power setups.

Key Specifications

• Rating: 135 Amps continuous.

• Voltage: 12V or 24V DC systems.

• Manual on/off switch for isolation.

• Surface mount near battery.

Technical Specifications

• Protects main conductor circuit from shorts and overloads.

• Reduces DC motor burn-out risk during winch operation.

• Compact dimensions: 230mm L x 70mm W x 160mm H; 0.2kg.

• 3-year warranty from Vetus Maxwell.

What's in the Box

• One 135 Amp circuit breaker/isolator panel (P100791).
