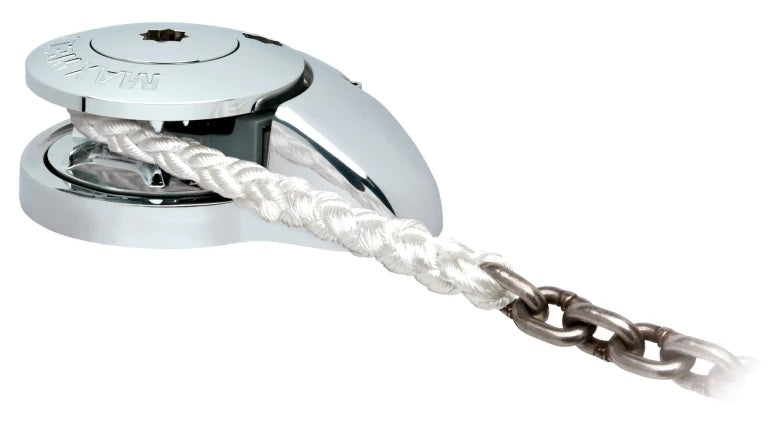

Maxwell RC8 Vertical 12v Windlass With Chain & Line.

$1,787.00

~~$1,508.00~~ $1,787.00

Sold out

Shipping calculated at checkout.

Low stock: 2 left

Chain & Line Size: 1/4" Chain & 1/2" Line 1/4" Chain & 1/2" Line 5/16" Chain & 5/8" Line

Description

Maxwell RC8 Series Vertical Windlasses

Models

RC8612V – RC8-6 Vertical Windlass for 1/4" Chain & 1/2" Line
RC8812V – RC8-8 Vertical Windlass for 5/16" Chain & 5/8" Line

Product Description

Maxwell RC8 series vertical windlasses feature patented Wave Design™ gypsies that accommodate chain pitch variations and smooth rope/chain splice handling, with heavy-duty stainless steel (AISI 316) pressure arms, chromed bronze construction, and sealed oil bath gearboxes for reliable performance. Designed for simple two-piece installation through any deck thickness, these 12V models include manual override/free fall capability, through-deck hawse pipes, and require chain stoppers for secure anchoring.

Key Features

Wave Design™ gypsy for wide chain pitch tolerance and effective rope/chain transitions
Heavy-duty stainless steel pressure arm with preloaded spring for maximum control
Sealed oil bath, hard anodized alloy gearbox with precision worm drive
Simple two-piece installation, self-aligning gearbox, through-deck hawse pipe
Full topworks disassembly with Allen key only, manual clutch release handle
Marine-grade 316 stainless steel and chromed bronze durability

Comparison Table

Feature	RC8612V	RC8812V
Chain Size	6-7mm (1/4")	8mm (5/16")
Rope Size	12mm (1/2")	14-16mm (5/8")
Motor Power	600W	1000W
Max Pull/Lift	350kg	600kg
Weight	12.5kg	8kg
Voltage	12VDC	12VDC
Drum	No	No
Orientation	Vertical	Vertical
