Minn Kota Precision On-Board Charger (PCL Series) 10 Amps.
Couldn't load pickup availability
Description
Description
Minn Kota Precision On-Board Charger (PCL Series)
Models:
-

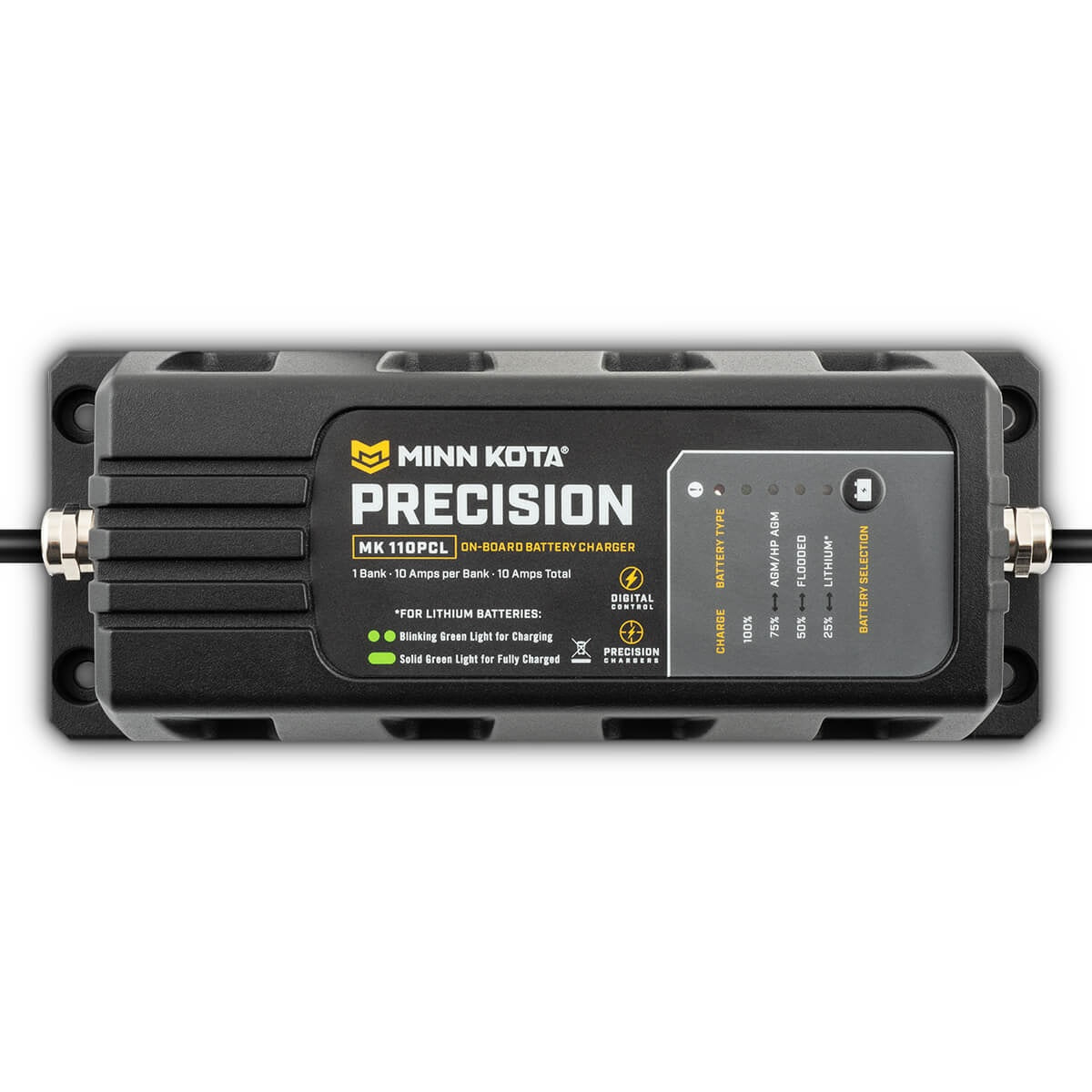

MK110PCL (1 Bank, 10A, Model 1831101)
-

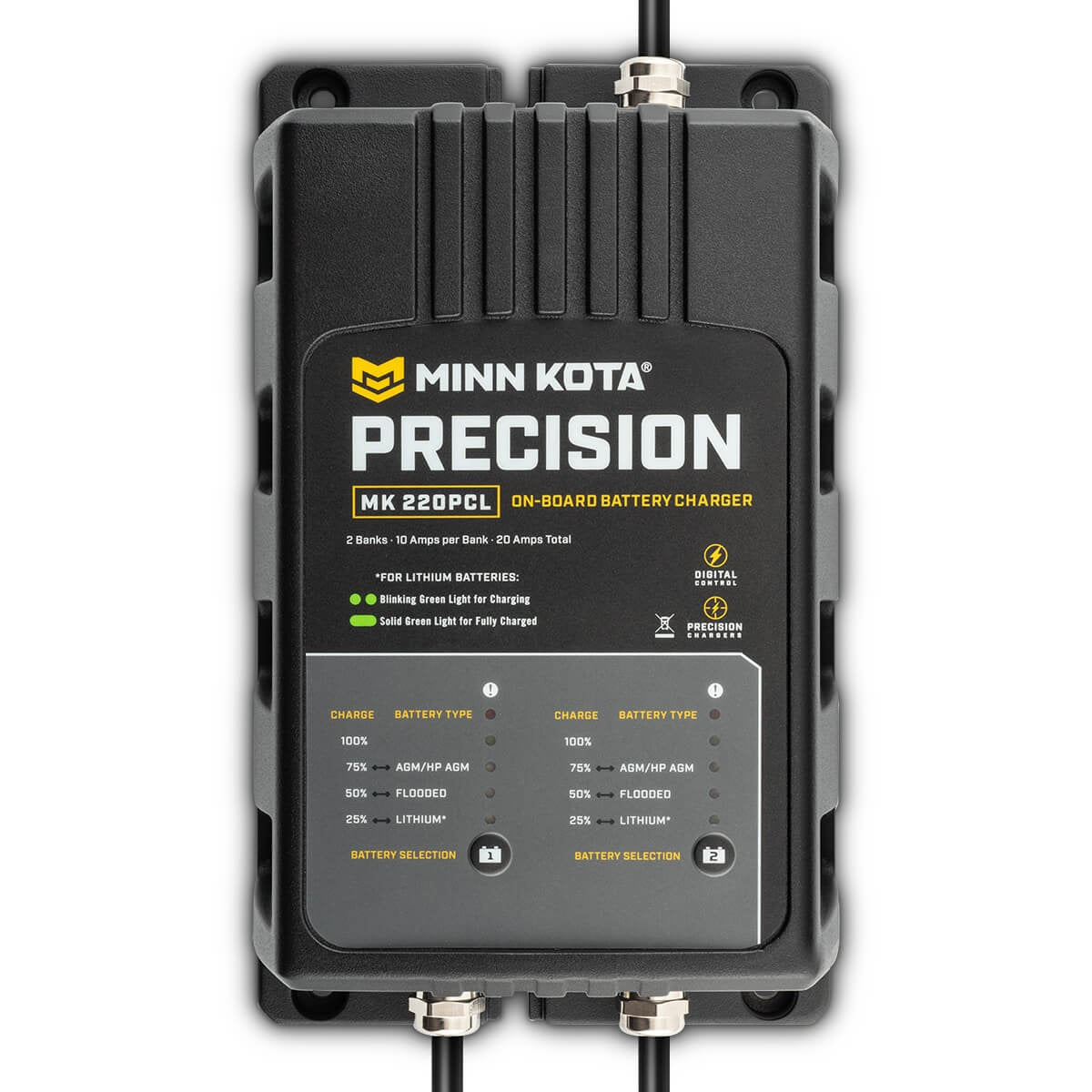

MK220PCL (2 Bank, 20A, Model 1832201)
-

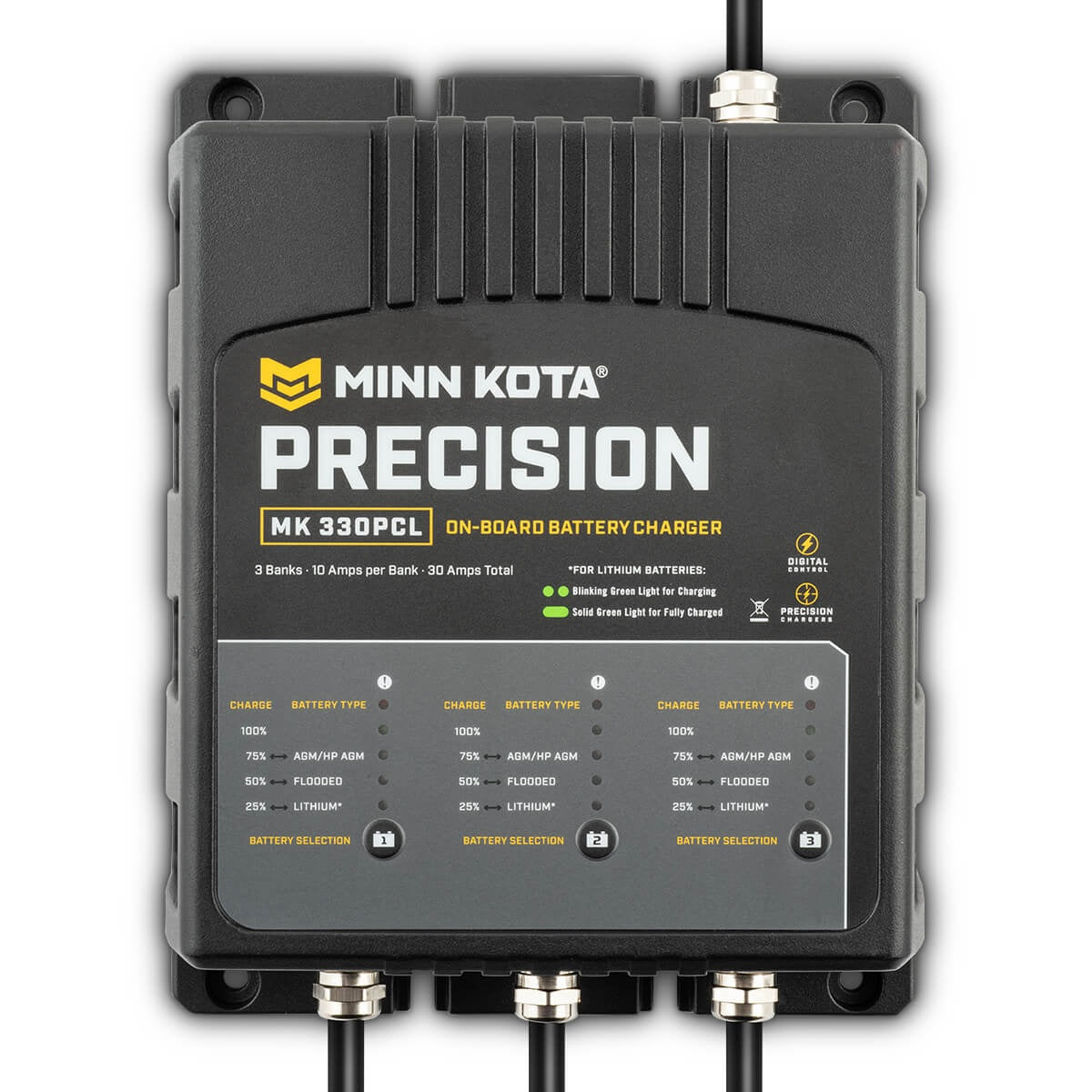

MK330PCL (3 Bank, 30A, Model 1833301)
-

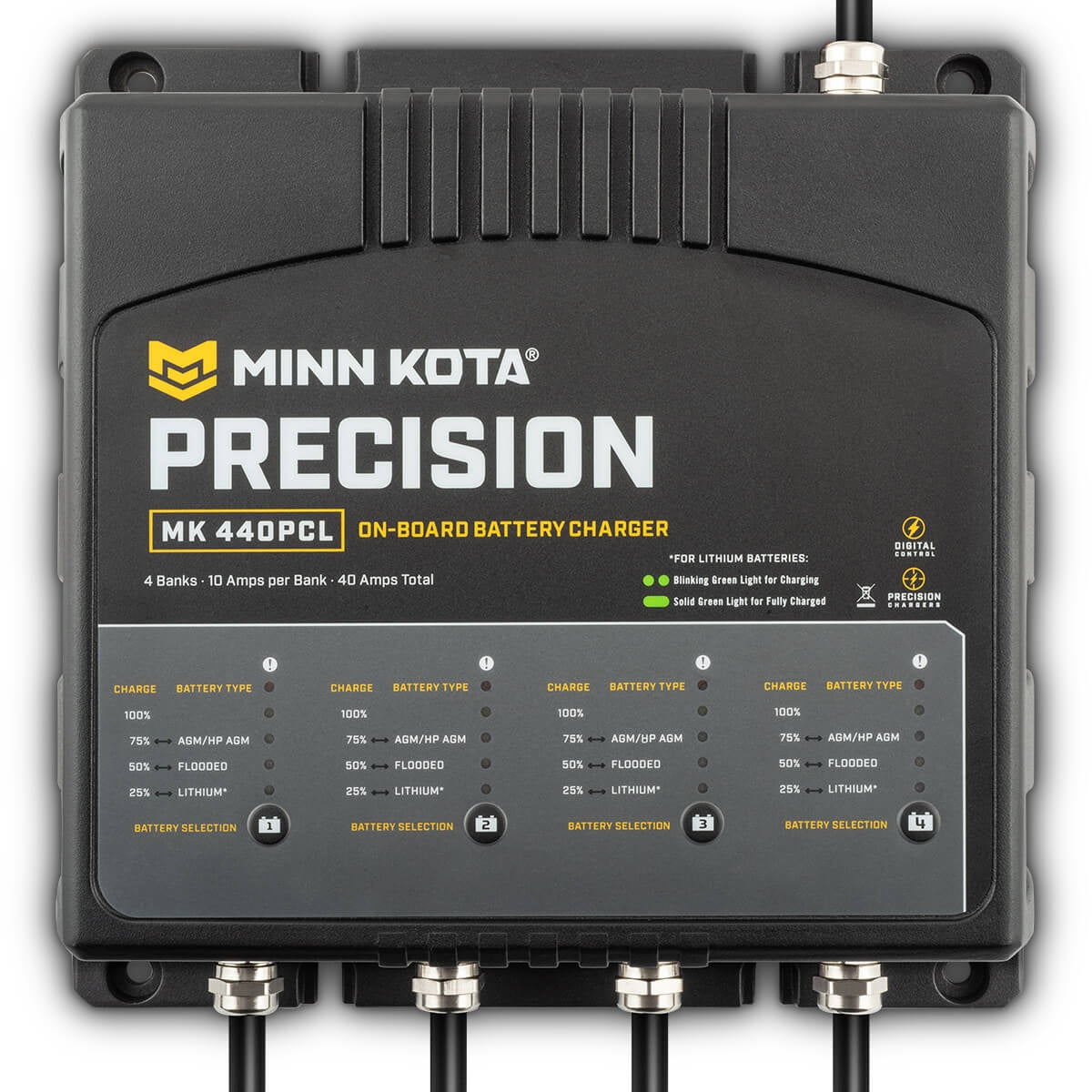

MK440PCL (4 Bank, 40A, Model 1834401)
-

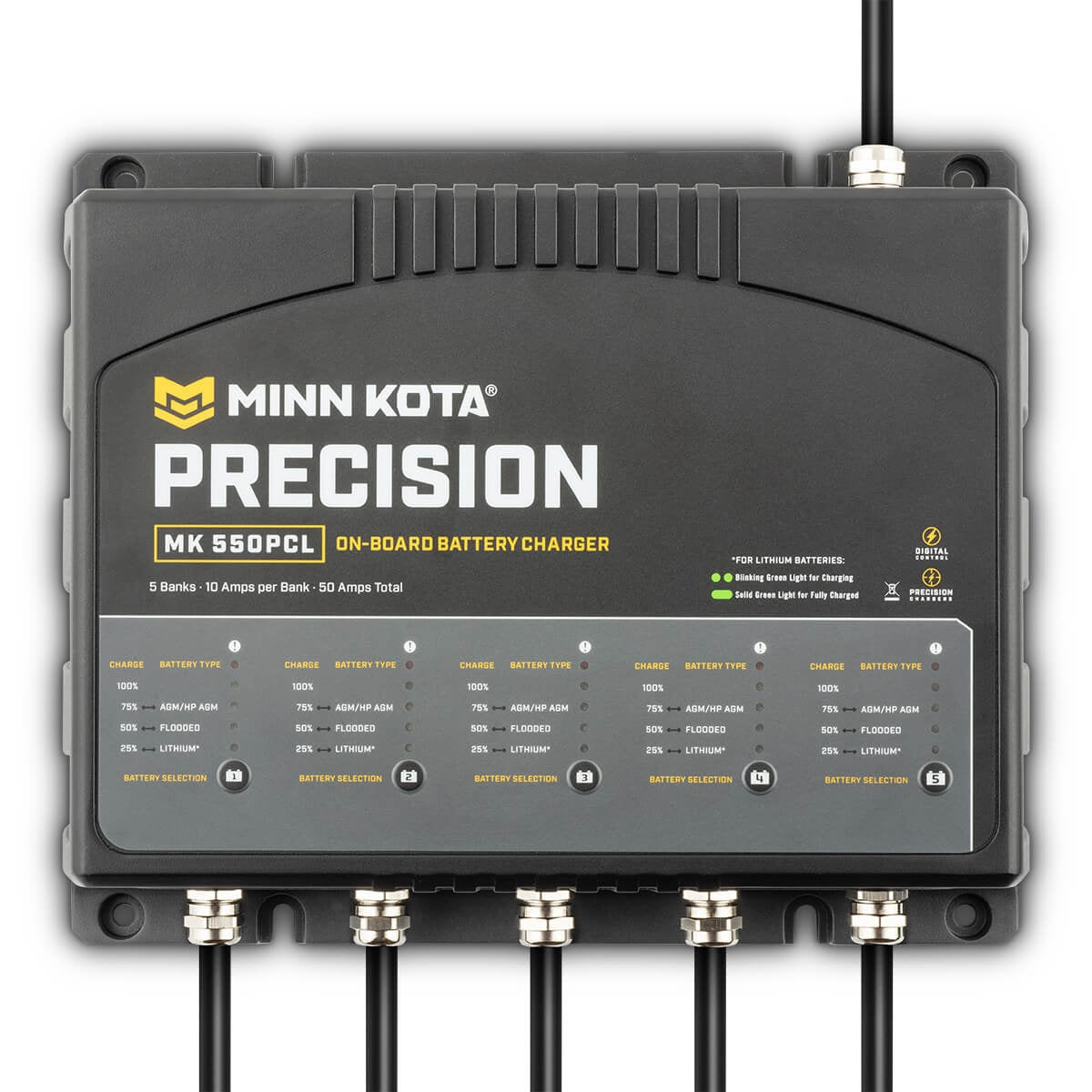

MK550PCL (5 Bank, 50A, Model 1835500)
Overview
The Minn Kota Precision (PCL) Series represents the latest generation of on-board chargers engineered to deliver faster, smarter, and safer battery charging for serious anglers. Each bank is completely customizable, allowing you to select the battery type — Lithium (LiFePO4), AGM, or Flooded Lead Acid — ensuring the perfect charge for every system. Built to withstand harsh marine environments, these chargers deliver reliable performance with digital precision, automatic compensation features, and full waterproof protection.
Key Features
-
Battery Type Selection: Individual bank selection for Lithium (LiFePO4), AGM, or Flooded Lead Acid ensures optimized performance and safety for mixed battery systems.
-
Automatic Temperature Compensation: Continuously adjusts output based on ambient temperature for accurate charging in all conditions.
-
Low-Line Voltage Compensation: Maintains consistent output even when shore power voltage drops below standard 120V.
-
Battery Equalization (Flooded Lead Acid Only): Cleans and maintains Flooded batteries each cycle, with manual equalization available for deeper conditioning.
-
Digital Control Technology: Smart charging logic via microprocessor delivers precise voltage and current optimization. Automatically wakes LiFePO4 batteries from standby.
-
Automatic Multi-Stage Charging: Manages charge cycle in bulk, absorption, and maintenance modes for speed and longevity.
-
Real-Time LED Indicators: Multi-color LED lights display charging status, maintenance mode, errors, and full charge indications.
-
Waterproof and Shockproof Design: All components are encapsulated and rated for extreme marine use, guaranteeing durability and vibration resistance.
-
Saltwater Compatibility: Fully sealed to perform in salt and freshwater environments.
-
3-Year Replacement Warranty: Backed by full Minn Kota coverage for peace of mind.
Model Comparison
| Feature | MK110PCL | MK220PCL | MK330PCL | MK440PCL | MK550PCL |
|---|---|---|---|---|---|
| Model Number | 1831101 | 1832201 | 1833301 | 1834401 | 1835500 |
| Number of Banks | 1 | 2 | 3 | 4 | 5 |
| Output per Bank | 10 Amps | 10 Amps | 10 Amps | 10 Amps | 10 Amps |
| Total Output | 10A | 20A | 30A | 40A | 50A |
| Charger Style | On-Board | On-Board | On-Board | On-Board | On-Board |
| Output Type | 12V DC | 12V DC | 12V DC | 12V DC | 12V DC |
| Wattage | 150W | 300W | 450W | 600W | 750W |
| Voltage Compensation | Yes | Yes | Yes | Yes | Yes |
| Battery Type Compatibility | LiFePO4, AGM, Flooded | LiFePO4, AGM, Flooded | LiFePO4, AGM, Flooded | LiFePO4, AGM, Flooded | LiFePO4, AGM, Flooded |
| Lithium (LiFePO4) Optimized | Yes | Yes | Yes | Yes | Yes |
| Temperature Compensation | Automatic | Automatic | Automatic | Automatic | Automatic |
| Battery Equalization | Yes | Yes | Yes | Yes | Yes |
| LED Status Display | Yes | Yes | Yes | Yes | Yes |
| Saltwater Compatible | Yes | Yes | Yes | Yes | Yes |
| Waterproof Construction | Yes | Yes | Yes | Yes | Yes |
| Dimensions (inches) | 9.88 x 4 x 3.5 | 9.88 x 5.88 x 3.5 | 9.88 x 7.75 x 3.5 | 9.88 x 9.88 x 3.5 | 9.88 x 11.75 x 3.5 |
| Weight | 4.4 lb | 6.2 lb | 8.1 lb | 10.5 lb | 12.5 lb |
| Power Source | On-shore AC | On-shore AC | On-shore AC | On-shore AC | On-shore AC |
| Warranty | 3 Years | 3 Years | 3 Years | 3 Years | 3 Years |
What’s in the Box
-
Minn Kota Precision On-Board Charger (Choose Model: 110, 220, 330, 440, or 550 PCL)
-
Integrated AC power cable
-
Mounting hardware and template
-
User manual and warranty documentation
