Minn Kota Quick Connect Motor Plugs.

Minn Kota Quick Connect Motor Plugs

Models:

• MKR-12 Trolling Motor Quick Connect Plug (1865101)

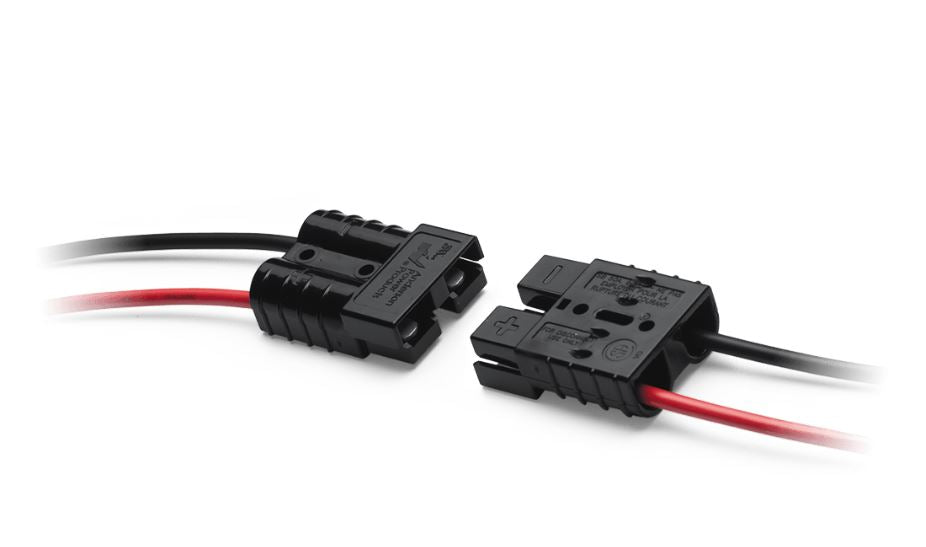

• MKR-20 Trolling Motor Quick Connect Plug (1865107)

Overview

Minn Kota Quick Connect Plugs provide a robust, reliable, and waterproof connection system for Minn Kota trolling motors. They are designed for marine environments to withstand moisture, corrosion, and rough handling while delivering a secure snap-lock connection for the motor’s electrical wiring.

Key Features

• Heavy-duty male/female locking plug design ensures quick and secure connection and disconnection of motor wiring.

• Compatible with a wide range of cable sizes (MKR-20 supports 6- to 12-gauge wire; MKR-12 for 10-gauge).

• Includes two plug halves, multiple contacts, and solder plugs for secure wire termination (wires not included).

• Snap-lock design provides a strong mechanical and electrical connection resistant to vibration and marine conditions.

• Waterproof and corrosion-resistant construction for long-term marine durability.

• Requires installation tools and follows instructions for soldering and heat shrinking to ensure secure connections.

Comparison Table

Installation Notes

• Strip wiring to appropriate lengths, solder wires to contacts, and cover terminals with provided heat shrink or shrink tubing for waterproof sealing.

• Connect male and female halves with a secure snap-lock to complete installation.

• Use included mounting faceplate and dust cap to protect connectors when not in use.

• Follow manufacturer instructions carefully for best performance and safety.
