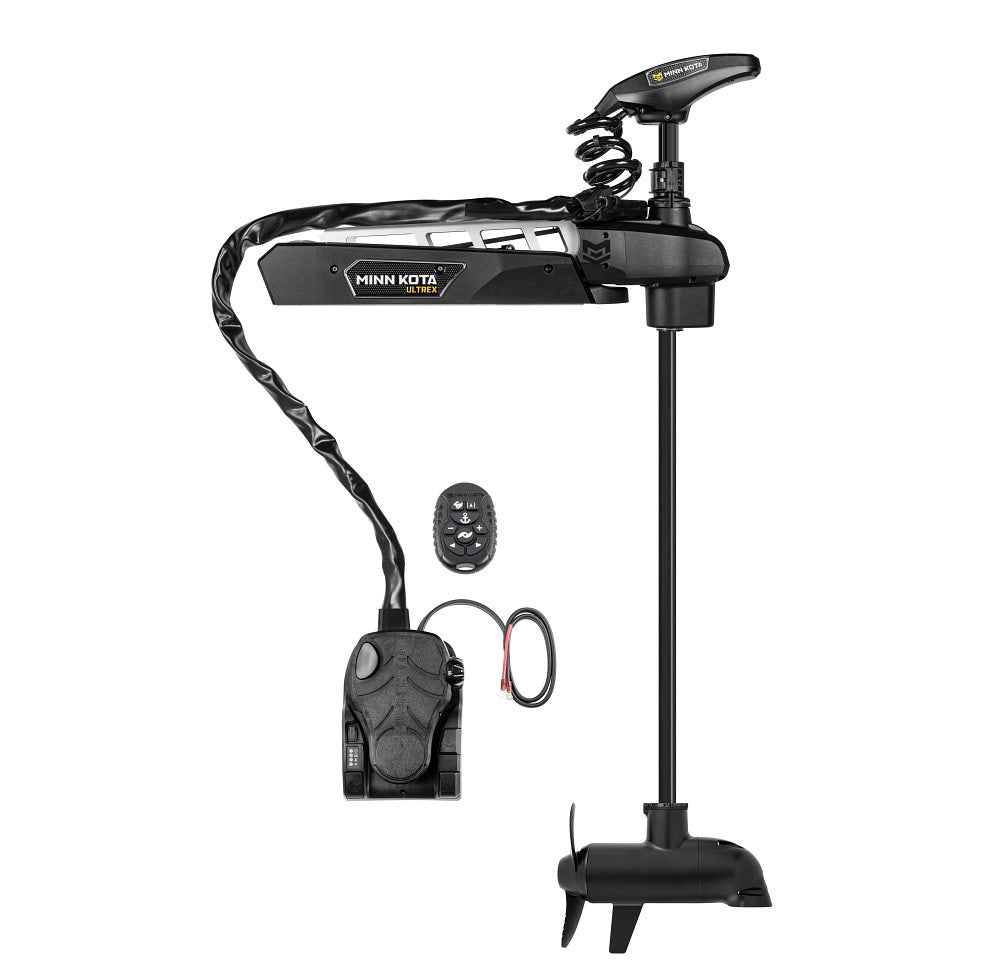

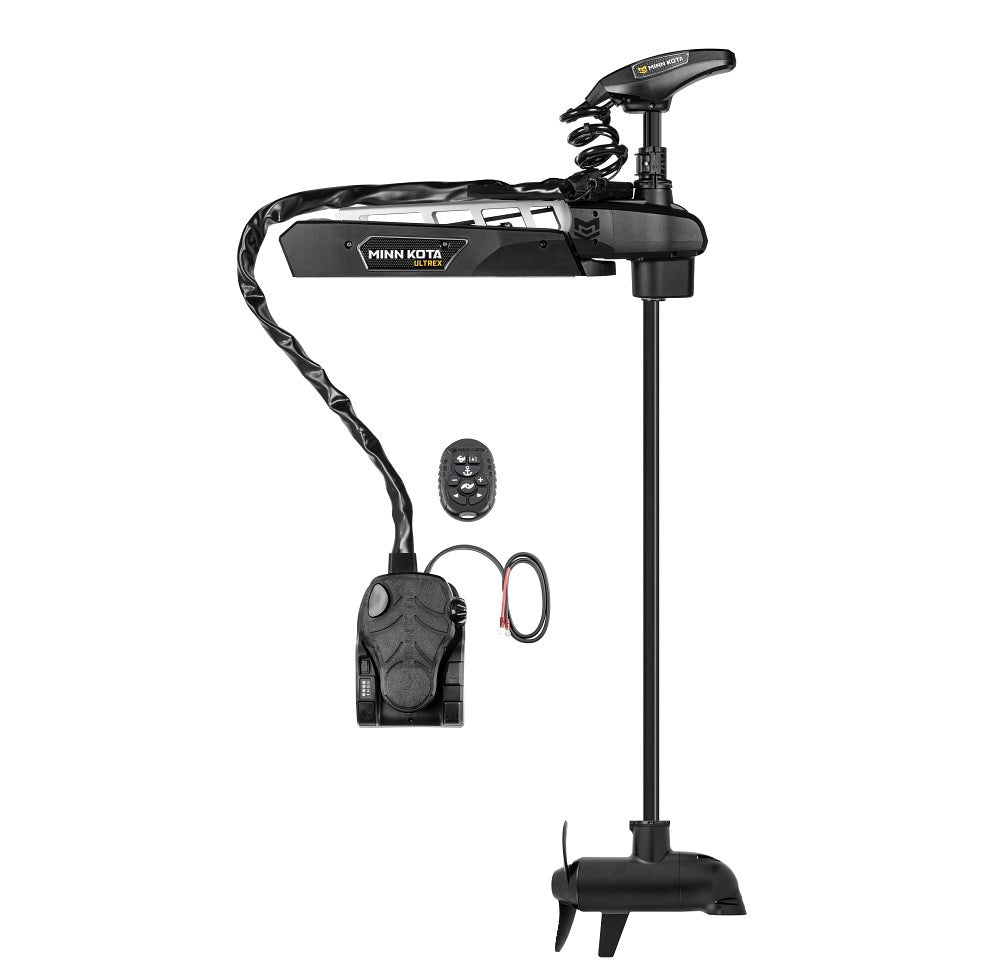

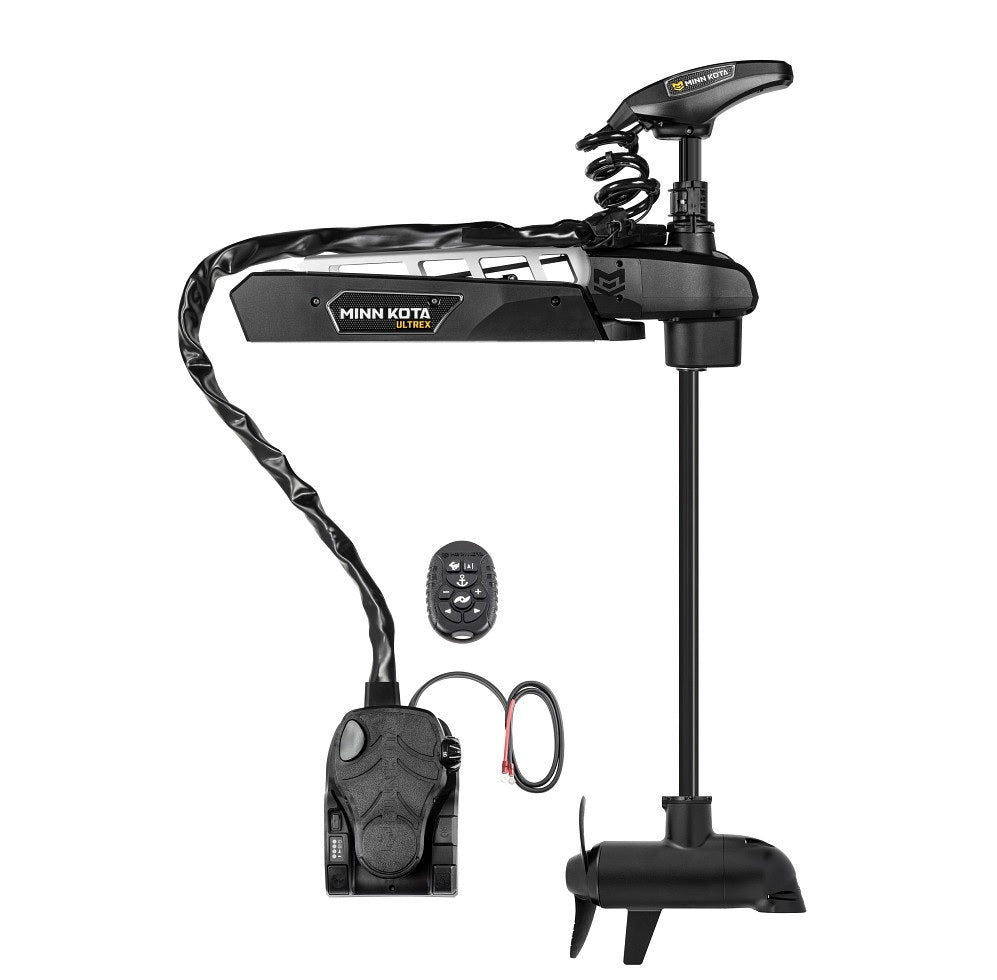

Minn Kota Ultrex Quest 90/115 Trolling Motors Shaft 24/36 Volt DSC and Micro Remote Series.
Couldn't load pickup availability
Description
Description
Minn Kota Ultrex Quest 90/115 Trolling Motors
Models:
-
1368900 — 45" Shaft, 24/36 Volt
-
1368901 — 52" Shaft, 24/36 Volt
-
1368902 — 60" Shaft, 24/36 Volt
Overview
The Ultrex Quest series includes 24/36V dual-voltage brushless motors completely redesigned for superior performance. These motors feature updated mounts, propellers, lift assist systems, drive motors, and software to outperform competitors in challenging environments.
Advanced GPS Trolling System
-
Integrated One-Boat Network linking with Humminbird® fish finders for precise control.
-
Functions via included micro remote or compatible Humminbird devices.
-
Features include Spot-Lock with Jog, path recording, depth contour following, automatic navigation, speed and steering control.
-
Spot-Lock with Jog: Holds boat position with extreme GPS accuracy; Jog shifts position 5 feet in any direction.
-
Drift Mode: Automates speed and course control without requiring drift socks or kicker motors, even in strong wind and current.
Controls
-
Heel-Toe / Programmable Foot Pedal: Unique foot pedal with power steering and user-programmable button for functions like waypoint marking, AutoPilot engagement, or shallow water anchor control.
-
Wireless Remote: Included micro remote enhances control flexibility.
Performance & Design
-
Real-time Battery Monitoring: Displays "time until empty" during use; prompts eco mode at 20% battery.
-
Digital Maximizer™: Up to 5x longer run time via efficient variable speed power management.
-
Indestructible Composite Shaft: Proprietary Minn Kota composite shaft with lifetime guarantee.
-
Built-In Dual Spectrum CHIRP Sonar: Concealed transducer wiring offers accurate fish, structure, and bottom returns.
Specifications
| Feature | 45" Shaft (Model 1368900) | 52" Shaft (Model 1368901) | 60" Shaft (Model 1368902) |
|---|---|---|---|
| Thrust | 90/115 lbs | 90/115 lbs | 90/115 lbs |
| Voltage | 24/36 V | 24/36 V | 24/36 V |
| One-Boat Network Compatible | Yes | Yes | Yes |
| QUEST Series | Yes | Yes | Yes |
| Spot-Lock | Yes | Yes | Yes |
| Built-In Sonar | Dual Spectrum CHIRP | Dual Spectrum CHIRP | Dual Spectrum CHIRP |
| Foot Pedal Style | Heel-Toe / Cable | Heel-Toe / Cable | Heel-Toe / Cable |
| Control | Foot Pedal, Wireless Remote | Foot Pedal, Wireless Remote | Foot Pedal, Wireless Remote |
| Auto/Stow Deploy | No | No | No |
| Power Trim | No | No | No |
| Power Steering | Yes | Yes | Yes |
| Lift-Assist | Yes | Yes | Yes |
| Bowguard | No | No | No |
| Wireless Remote | Yes | Yes | Yes |
| i-Pilot Link (GPS) | No | No | No |
| AutoPilot | Yes | Yes | Yes |
| Speeds | Variable | Variable | Variable |
| Digital Maximizer | Yes | Yes | Yes |
| Battery Meter | Yes | Yes | Yes |
| Max Amp Draw | 58 A | 58 A | 58 A |
| Mount Style | Scissor-Lock | Scissor-Lock | Scissor-Lock |
| Mounting Location | Bow-Mount | Bow-Mount | Bow-Mount |
| Motor Style | Cable-steer | Cable-steer | Cable-steer |
| Prop | Power Prop (MKP-40) | Power Prop (MKP-40) | Power Prop (MKP-40) |
| Warranty | Three-Year | Three-Year | Three-Year |
What’s in the Box
-
Ultrex 90/115 lb motor with specified shaft length and built-in Dual Spectrum CHIRP
-
Corded Foot Pedal
-
Micro Remote
-
Lanyard
-
30' Ethernet Extension Cable
-
Humminbird HELIX Adapter Cable
-
Stabilizer
-
Hold Down Strap
-
MKP-39 & MKP-40 Props
-
Mounting Hardware
