OceanLED Explore E3 XFM Underwater Lights.

$1,852.00

~~$1,852.00~~ $1,852.00

Sold out

Shipping calculated at checkout.

Out of stock

Colour: Ultra White Ultra White Midnight Blue Dual Blue/White Light Color Scroll

Description

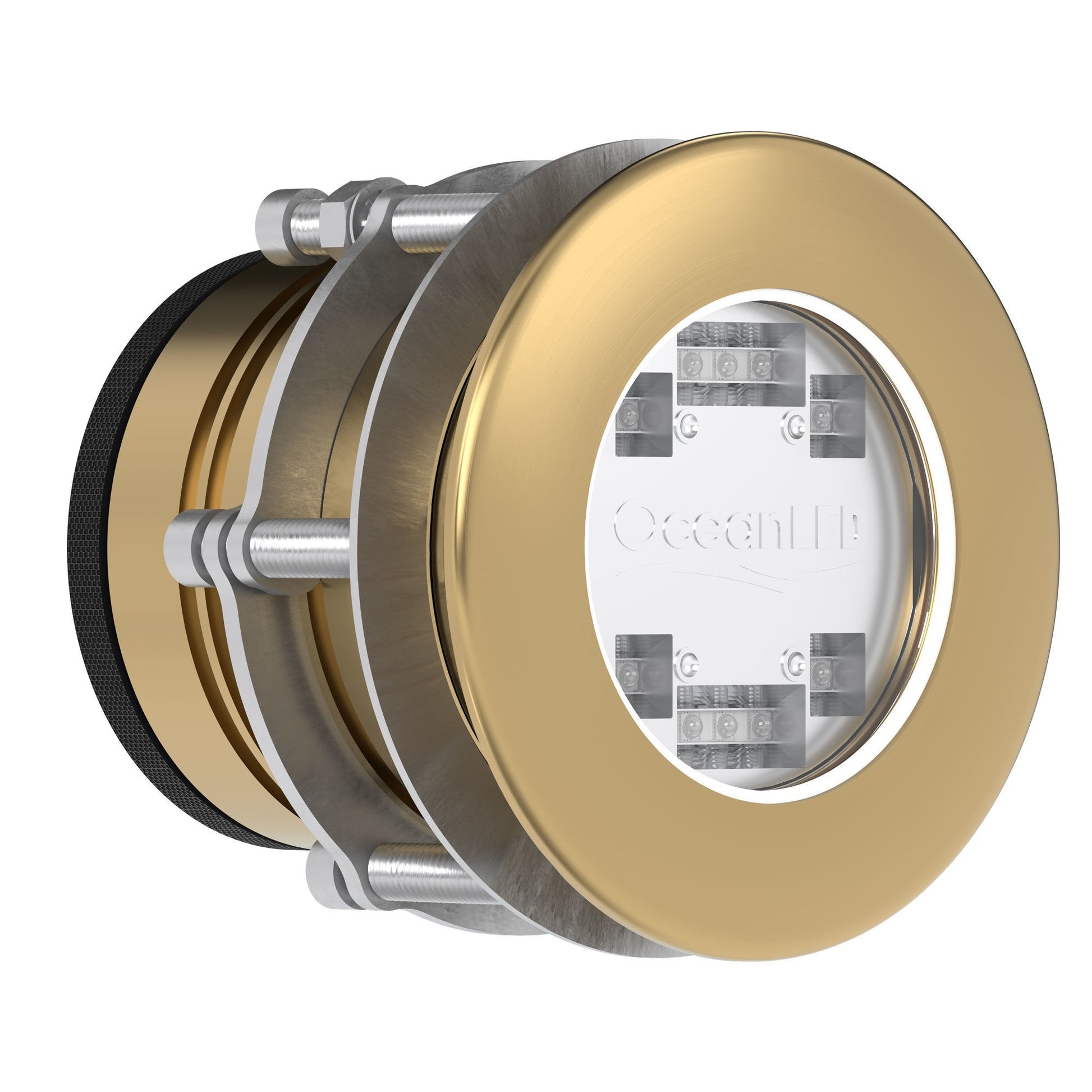

OceanLED Explore E3 XFM Underwater Lights

Models:

E3009W – Explore E3 XFM Ultra White (Single Colour)
E3009B – Explore E3 XFM Midnight Blue (Single Colour)
E3009BW – Explore E3 XFM Dual Colour Blue/White
E3009CS – Explore E3 XFM Colour Scroll

Product Description

The OceanLED Explore E3 XFM series uses advanced reflector optics to deliver a rectangular beam with a 20° penetrating side beam and a true 90° wide, focused top beam that floods a large area of water with light. Compact, through-hull XFM design with built-in driver, plug-and-play wiring, and a clamping kit reduces installation time and allows mounting in tight spaces on boats up to 10m. Each model includes Fish Strobe mode, ultra-low-profile outer bezel, and up to 5,000 fixture lumens, matching Sport Series output while adding Explore-series optical performance.

Key Features

New-generation, efficient reflector optic with rectangular beam
20° side beam for deep penetration, 90° top beam for wide coverage
Built-in driver, simple toggle control, plug-and-play installation
Compact XFM body, ultra low-profile bezel, reduced internal space needed
Fish Strobe mode to attract bait fish
DC 9–32V input, optional 100–240V AC supply
AB2 aluminium bronze mounting tube and aluminium light body
Recommended for boats 0–10m, 0.5–1.2m transom spacing, 25–30cm depth

Comparison Table

Feature	E3009W (White)	E3009B (Blue)	E3009BW (Dual Blue/White)	E3009CS (Colour Scroll)
Lumens (max)	10,000	10,000	5,600	8,500–19,000
Fixture Lumens	5,000*	5,000*	3,500*	3,000*
Mode / Colour	Single colour	Single colour	Dual colour (B/W)	Colour scroll
DC Voltage Range	9–32V DC	9–32V DC	9–32V DC	9–32V DC
DC Current Draw 12V / 24V	5.5A / 2.4A	5.5A / 2.4A	3.6A / 1.7A	5.5A / 2.4A
AC Voltage Range (optional)	100–240V AC	100–240V AC	100–240V AC	100–240V AC
AC Current Draw 110V / 230V	620mA / 290mA	620mA / 290mA	430mA / 210mA	620mA / 290mA
Driver Type	Internal	Internal	Internal	Internal
Diameter incl. flange	105mm (4.13")	105mm (4.13")	105mm (4.13")	105mm (4.13")
Hull Cut-Out / Min Inside Space	83mm, 170mm	83mm, 170mm	83mm, 170mm	83mm, 170mm
Mount Tube / Body Material	AB2 / Aluminium	AB2 / Aluminium	AB2 / Aluminium	AB2 / Aluminium
