OceanLED Explore E6 XFM Underwater Lights.

$2,545.00

~~$2,545.00~~ $2,545.00

Sold out

Shipping calculated at checkout.

Out of stock

Colour: Dual Colour Blue/White Dual Colour Blue/White Colours DMX

Description

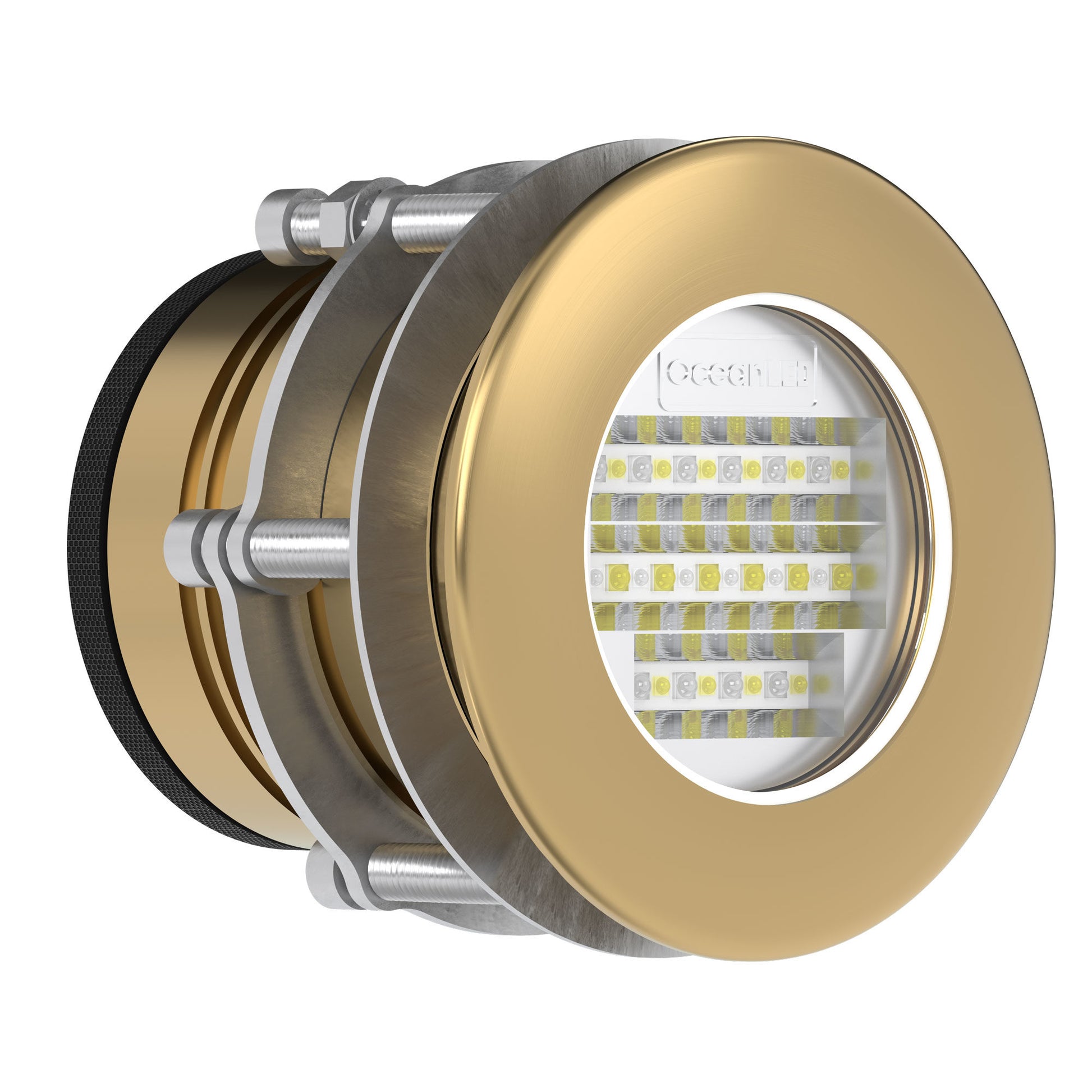

OceanLED Explore E6 XFM Underwater Lights

Models:

E6009BW – Explore E6 XFM Dual Colour Blue/White
E6009CD – Explore E6 XFM Colours DMX

Product Description

The OceanLED Explore E6 XFM series represents the ultimate flush-mount underwater LED lights for larger vessels (20m+), featuring advanced reflector optics with 20° penetrating side beam and true 90° wide top beam for maximum water coverage. These compact XFM designs include built-in drivers, plug-and-play installation with clamping kits, Fish Strobe mode, and multiple control options including switch toggle, DMX, Strobe, and Dynamic Audio modes. With up to 11,000 fixture lumens, AB2 aluminium bronze mounting tubes, and minimal internal space requirements, they deliver superior performance for boats wanting maximum visibility.

Key Features

Advanced reflector optic: 20° side beam + 90° top beam rectangular pattern
Up to 11,000 fixture lumens for boats 20m+
Fish Strobe mode, DMX/switch control options
Built-in driver, ultra-low profile bezel (4mm), plug-and-play wiring
Reduced installation time with clamping kit
Dual Colour (E6009BW): 19,000 lumens / 11,000 fixture lumens
Colours DMX (E6009CD): 10,000 lumens / 6,000 fixture lumens
10-32V DC or 100-240V AC operation, internal driver

Comparison Table

Feature	E6009BW (Dual Colour)	E6009CD (Colours DMX)
Lumens	19,000	10,000
Fixture Lumens	11,000*	6,000*
DC Voltage Range	10-32V DC	10-32V DC
DC Current Draw 12V / 24V	7.8A / 4.7A	6.8A / 3.2A
AC Voltage Range (optional)	100-240V AC	100-240V AC
AC Current Draw 110V / 230V	1,190mA / 570mA	830mA / 400mA
Control Options	Switch toggle	DMX / Switch
Boat Size Recommendation	20m+	20m+
Dimensions (Dia x Profile x Len)	105x4x97mm	105x4x97mm
Hull Cut-Out / Min Inside Space	83mm, 170mm	83mm, 170mm
