OceanLED EYES HD Gen2 Underwater Cameras.

OceanLED EYES HD Gen2 Underwater Cameras

Models:

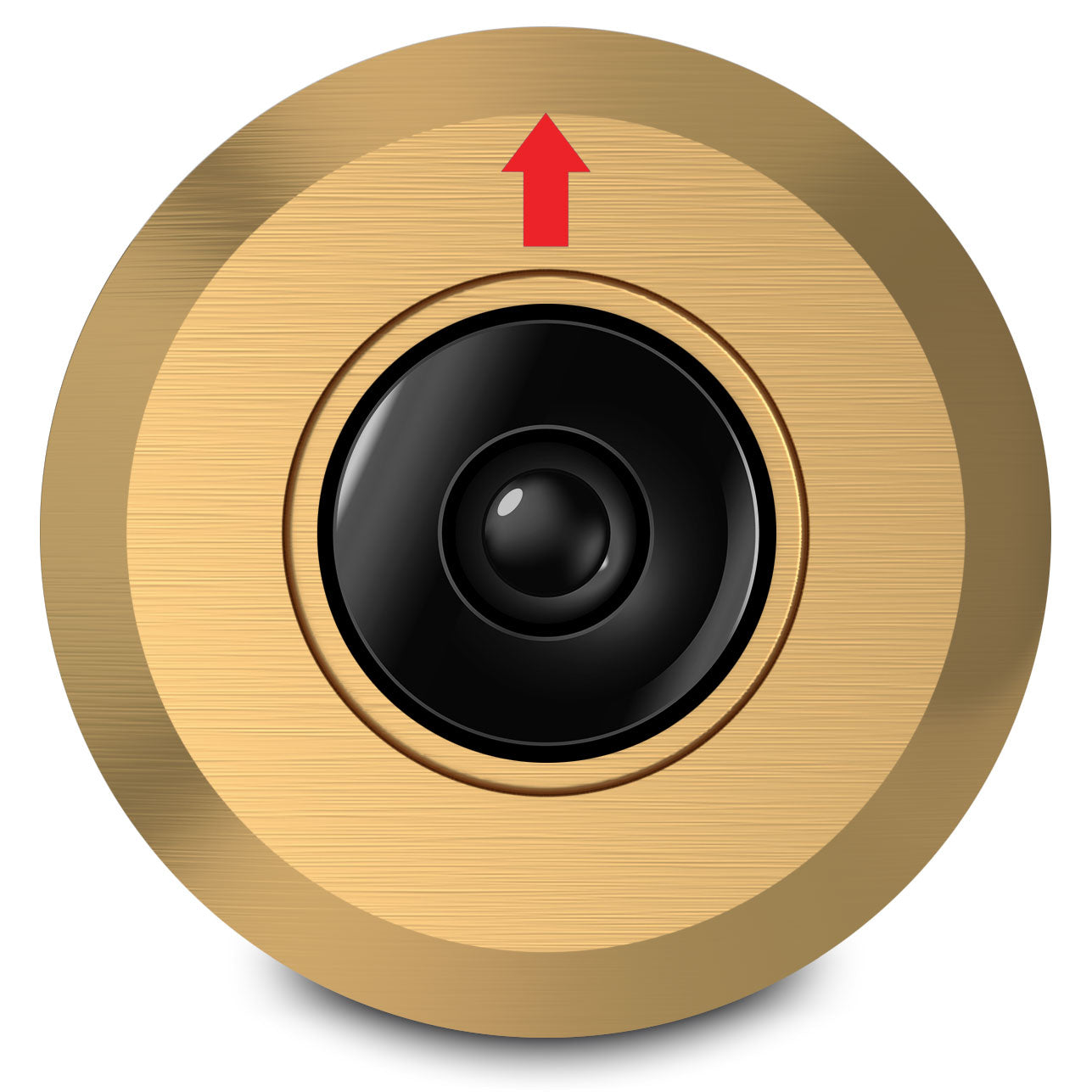

011810 – Aluminium Bronze Body

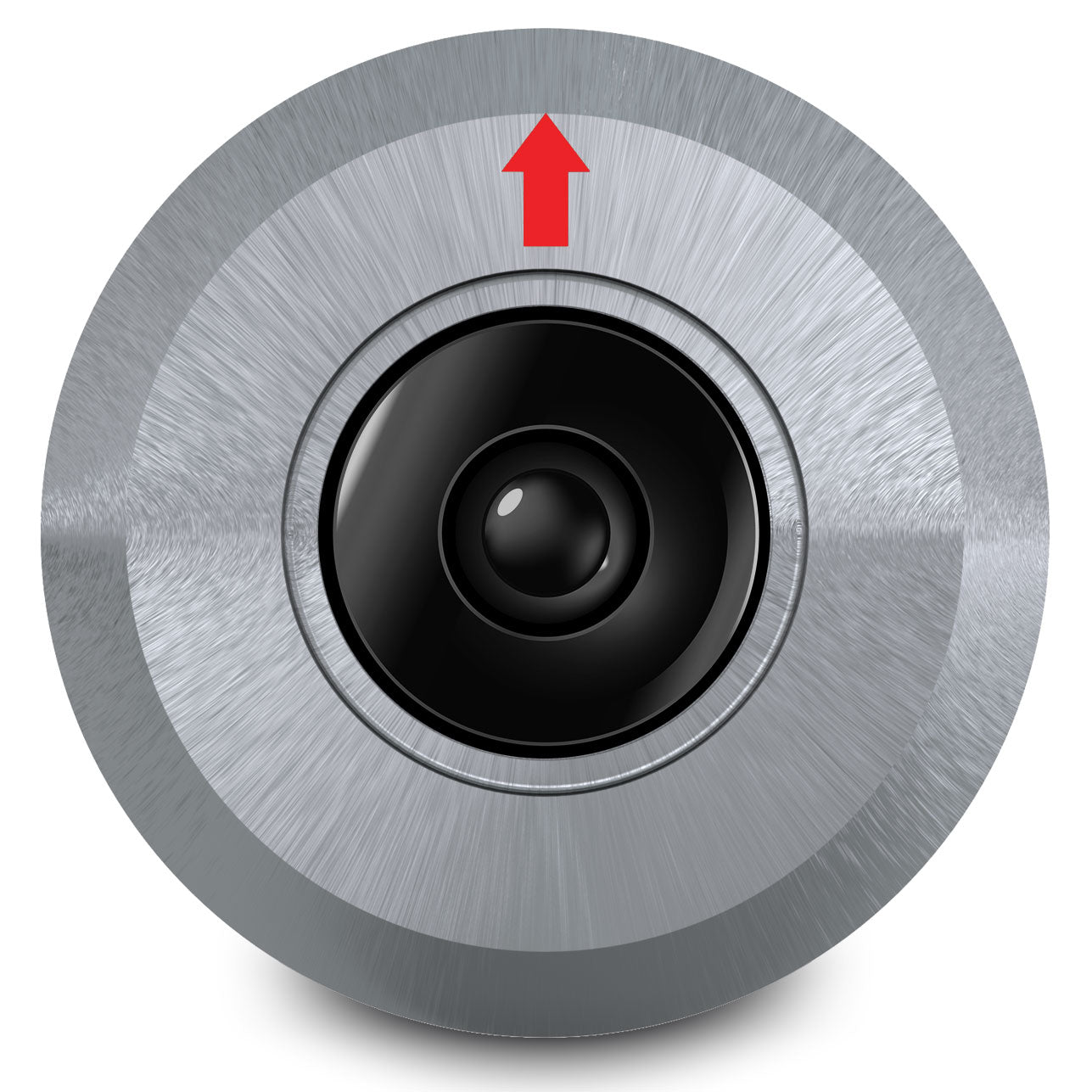

011811 – Stainless Steel Body

Product Description

The OceanLED EYES HD Gen2 Underwater Cameras capture full 1080p HD video (2.1 Megapixel, 1080 TV Lines) with HD-SDI output and Tritonium™ optical lens for scratch/sea growth resistance, perfect for viewing fish strikes, dolphins, or underwater activity from cockpit mounts. These cameras mount through 35mm hull holes (up to 104mm thick), suitable for fibreglass, GRP, wood, or metal hulls (with isolation sleeve), and integrate with CCTV systems for security. Featuring low-light performance (0.1 LUX min), 10m extension cable, and robust construction, they deliver clear underwater footage in temperatures from -10°C to +50°C.

Key Features

• Full 1080p HD video with 2.1 Megapixel sensor (1984x1105 pixels)

• HD-SDI and composite video output

• Tritonium™ optical lens resists scratches and marine growth

• Low light performance: 0.1 LUX minimum illumination

• 3.7mm lens, electronic iris (1/50-1/100,000 sec), 23dB max gain

• 12V DC operation (9-14V), 110mA max draw

• IP-rated waterproof, S/N ratio >50dB

• 10m (30') extension cable included

Comparison Table

What's in the Box

• (1) OceanLED EYES HD Gen2 Underwater Camera (material per model)

• 10m (30') extension cable

• Mounting hardware

• Installation manual
