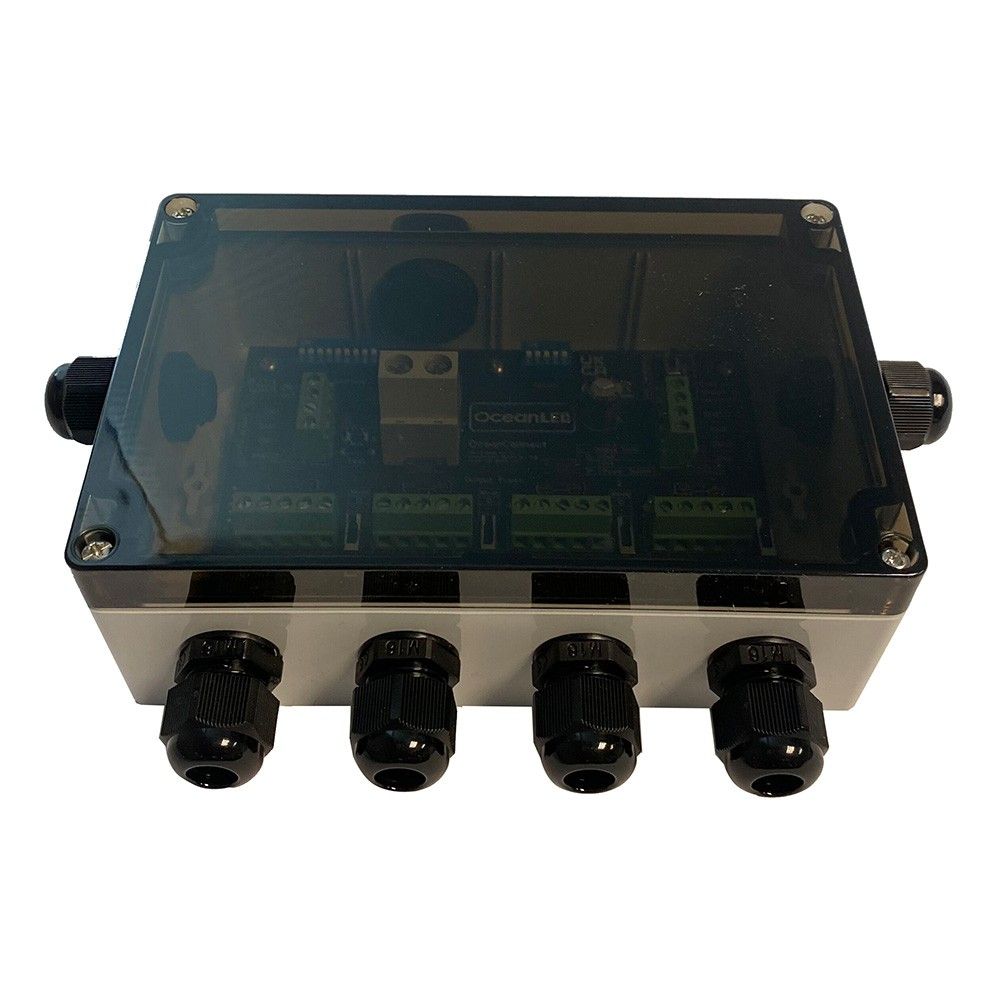

OceanLED Junction Box For OceanBridge

Product Description

The OceanLED Junction Box for OceanBridge is the OceanConnect Junction Box, an IP66-rated enclosure for connecting DC lights to the OceanBridge controller.

Product Overview

This junction box enables integration of basic on/off DC lights and third-party fixtures into the OceanBridge multizone lighting system on boats, supporting DMX control through protected cable glands.

Key Specifications

• Supports multiple light connections via DMX.

• IP66 waterproof polycarbonate enclosure.

• Cable glands: 1x M20 power in, 4x M16 DMX/lights.

• Voltage: 12/24V DC (max 32V DC).

Technical Specifications

• Dimensions: 228 x 174 x 60mm (9" x 6.8" x 2.3").


• Wire gauge: 8-20 AWG power terminals.

• Mount in protected dry area.

What's in the Box

• One OceanConnect Junction Box (013204).
