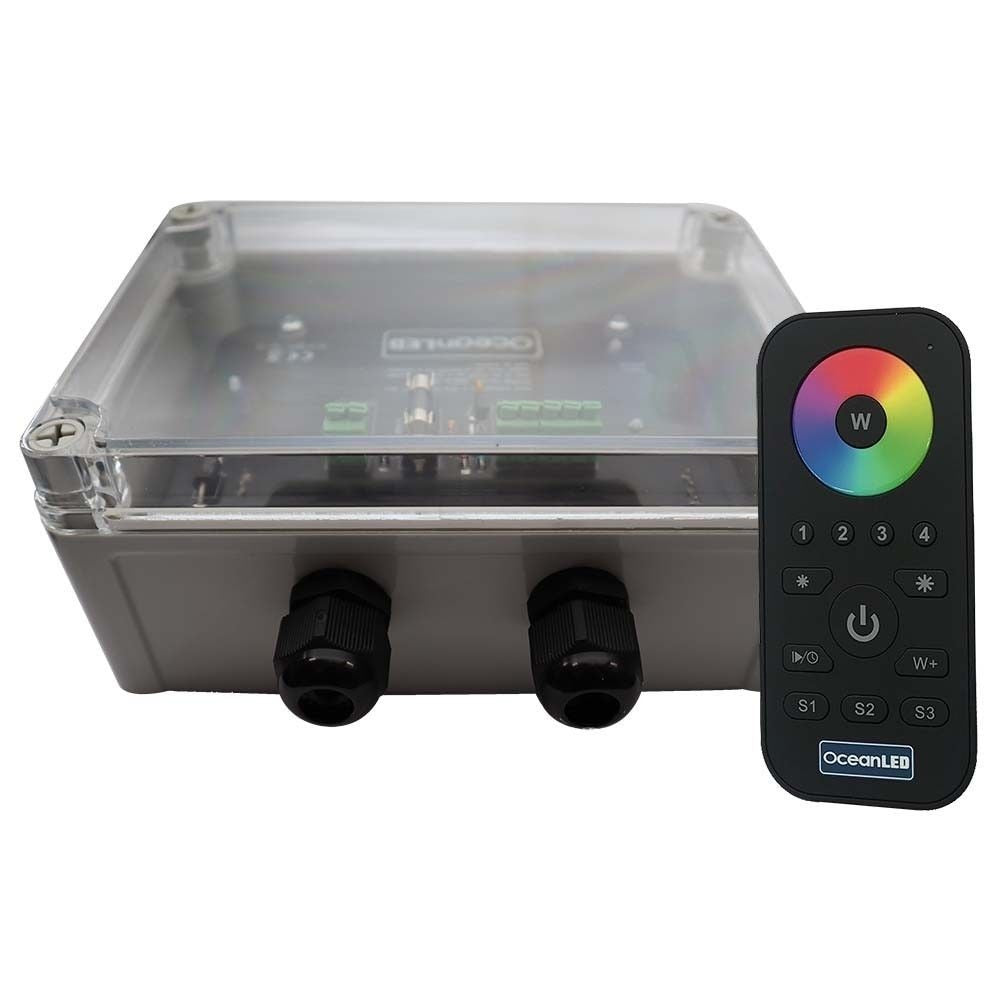

OceanLED OceanDMX RC Series with Remote Controls.

OceanLED OceanDMX RC Series Remote Controls

Models:

013016 – OceanDMX RC Explore XFM Colours 915
013017 – OceanDMX RC Pro Series Colours 915
013018 – OceanDMX RC X-Series Colours 915

Product Description

The OceanLED OceanDMX RC Series provides wireless remote control for RGBW colour lighting systems via DMX protocol, featuring 3 programmable scenes with up to 10 pre-set modes and independent control of up to 4 zones (excluding X-Series). The IP68 waterproof receiver connects via 916.5MHz radio frequency with up to 20m range, supporting up to 8 remotes per receiver. Compatible with 12/24V DC (9-32V) systems, these controls offer robust polycarbonate construction and easy installation for marine lighting applications.

Key Features

• Wireless DMX control for RGBW marine lighting systems

• 3 programmable scenes with 10 pre-set modes

• Controls up to 4 independent zones (excluding X-Series)

• IP68 waterproof receiver, IP66 remote with pouch

• 916.5MHz RF with 20m range, up to 8 remotes per receiver

• 12/24V DC operation (9-32V), 200mA max current

• Operating temperature: Remote -20 to +40°C, Receiver -20 to +50°C

• Remote powered by 3x AAA batteries (not included)

Comparison Table

What's in the Box

• Remote control

• Waterproof pouch

• DMX Receiver

• Control Cable

• Terminator (013016/013017, not for X-Series)

• DMX Junction Box (013018 X-Series only)

• Installation Manual
