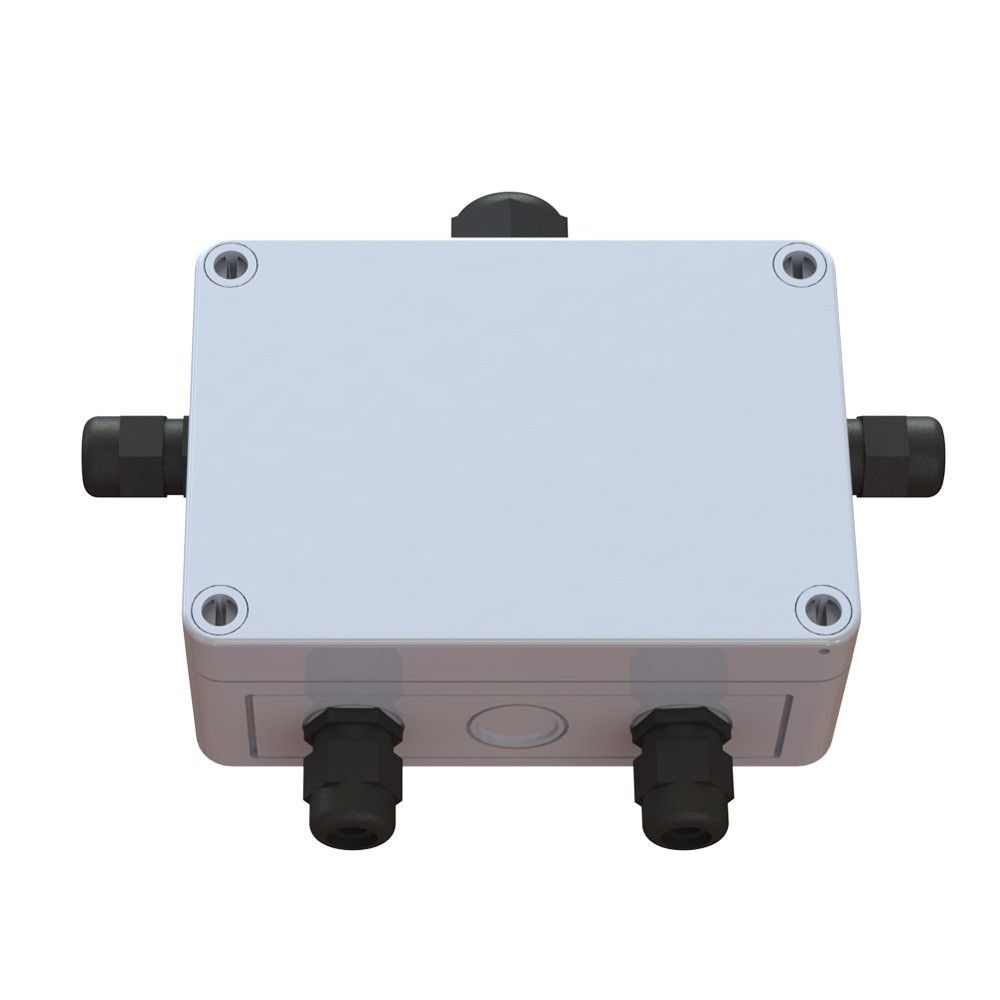

OceanLED Two Way DMX Junction Box

Product Description

The OceanLED Two Way DMX Junction Box distributes power and DMX signals for underwater lighting systems.

Product Overview

This IP66-rated junction box expands Sport Colors DMX or Explore E3 Colors DMX systems up to 32 lights on boats, mounted in protected areas for multizone RGBW control.

Key Specifications

• Polycarbonate enclosure for marine durability.

• Two fused power outputs (7.5A each max).

• IP68 cable glands (1x M20 power in, 4x M16 DMX/lights).

• Voltage: 12/24V DC (10-32V range).

Technical Specifications

• Dimensions: 180 x 120 x 60mm (7.1" x 4.7" x 2.3").

• Weight: 270g.

• Wire gauge: 8-20 AWG power input, 12-28 AWG outputs.

• Includes screw/grommet kit.

What's in the Box

• One 2-Way DMX Junction Box (013205).

• Mounting screws and grommets.
