OceanLED X-Series Underwater LED Lights.

OceanLED X-Series Underwater LED Lights

Models

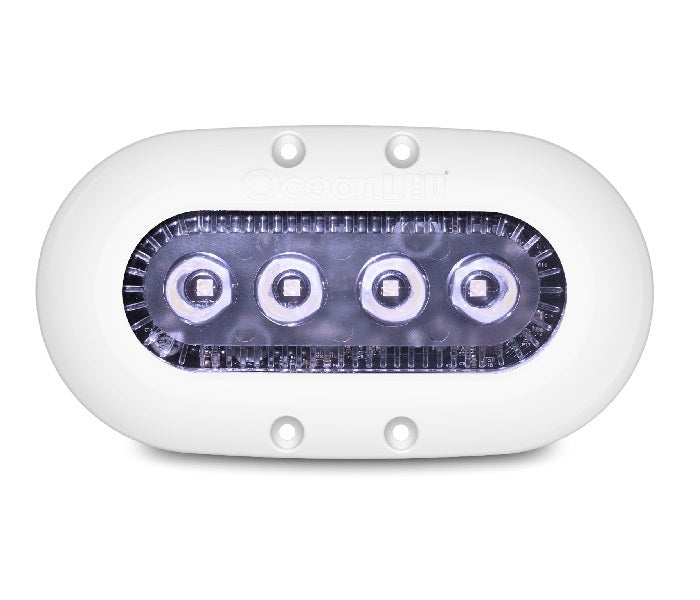

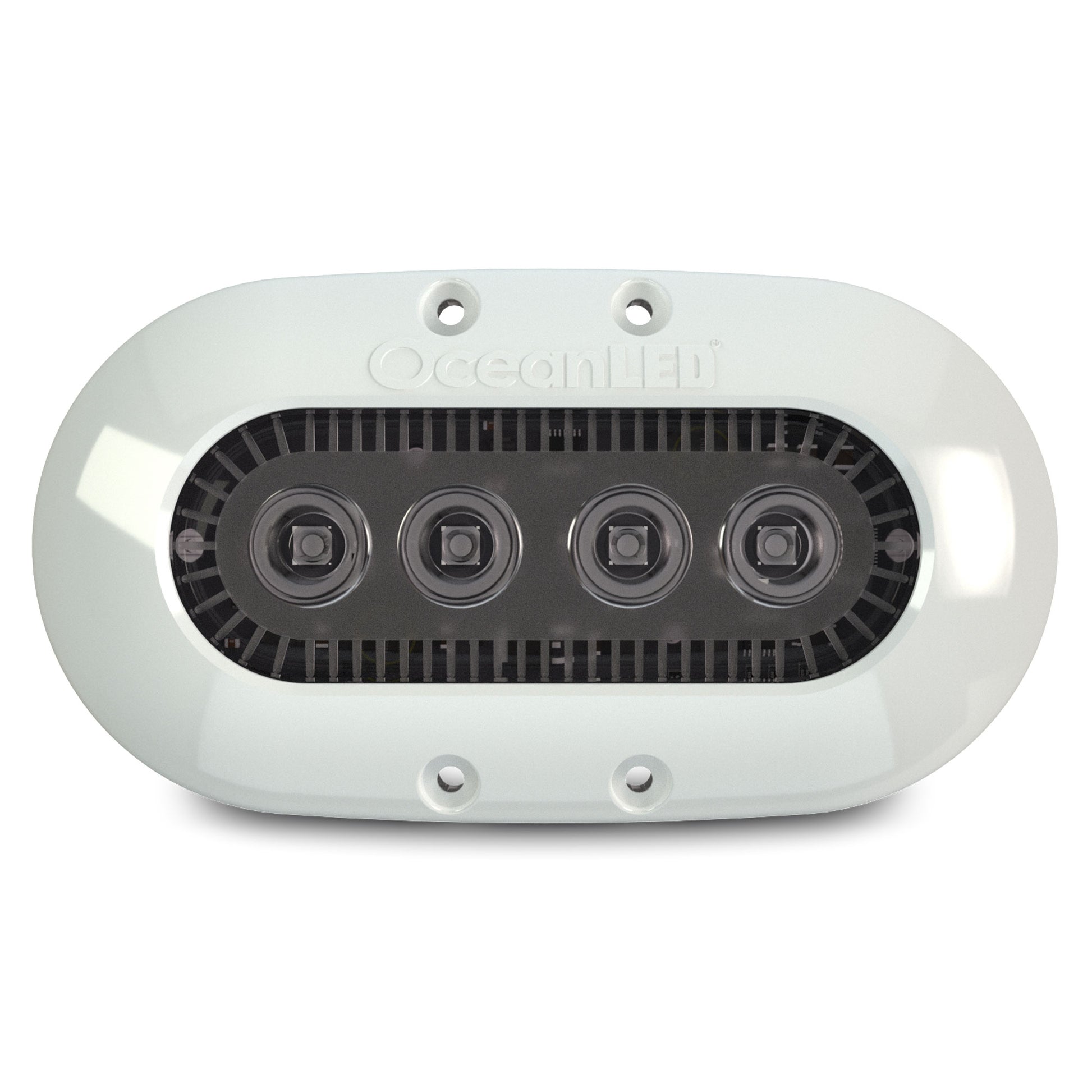

012301W – X4 Ultra White | 012302B – X4 Midnight Blue | 012312C – X4 Colours

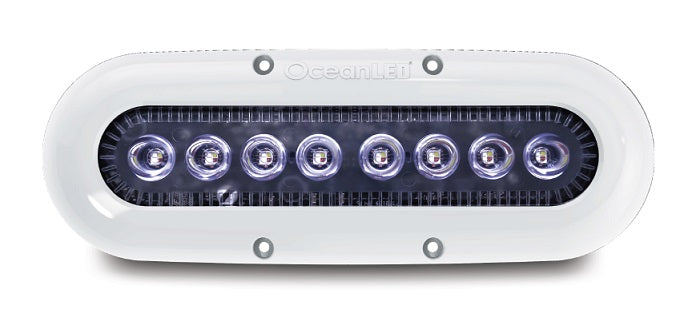

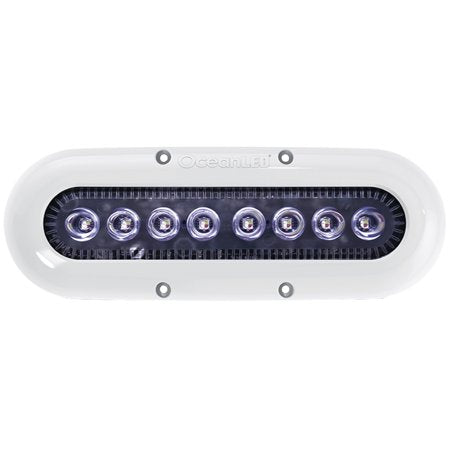

012304W – X8 Ultra White | 012305B – X8 Midnight Blue | 012307C – X8 Colours

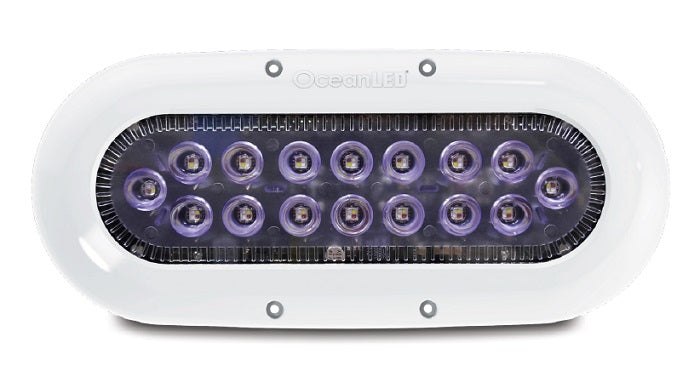

012308W – X16 Ultra White | 012309B – X16 Midnight Blue | 012311C – X16 Colours

Product Description

OceanLED X-Series underwater LED lights deliver powerful illumination for small to medium fishing and cruising boats with 60° circular beam angles, Tritonium coating for easy cleaning, and Fish-Strobe mode to attract bait fish. X4 models output 1150 fixture lumens, X8 models 2300 lumens, and X16 models 4500 lumens with penetration up to 100' in perfect water. Featuring internal drivers, active thermal control, chemically resistant optical polymer housings, and simple 12.5mm hole installation without bonding, these IP69K rated lights offer 40,000+ hour lifespan for cruising, fishing, or cockpit/deck applications.

Key Features

• 60° circular beam for wide water coverage and penetration

• Fish-Strobe mode attracts bait fish with random strobing

• Tritonium coating for easy lens cleaning

• Active Thermal Control prevents overheating

• Internal driver, reverse polarity protection, no startup current

• IP69K water ingress protection (highest rating)

• Simple installation: 12.5mm hole, 4 screws, no bonding

• 3m cable, 12/24V DC compatible

Comparison Table

What's in the Box

• (1) OceanLED X-Series underwater light fixture (model specific)

• 3m cable with internal driver

• Mounting hardware (4 screws)

• Installation manual
