ProMariner ProSafe 2 FailSafe Galvanic Isolators.
Couldn't load pickup availability
Description
Description
ProMariner ProSafe 2 FailSafe Galvanic Isolators
Models:

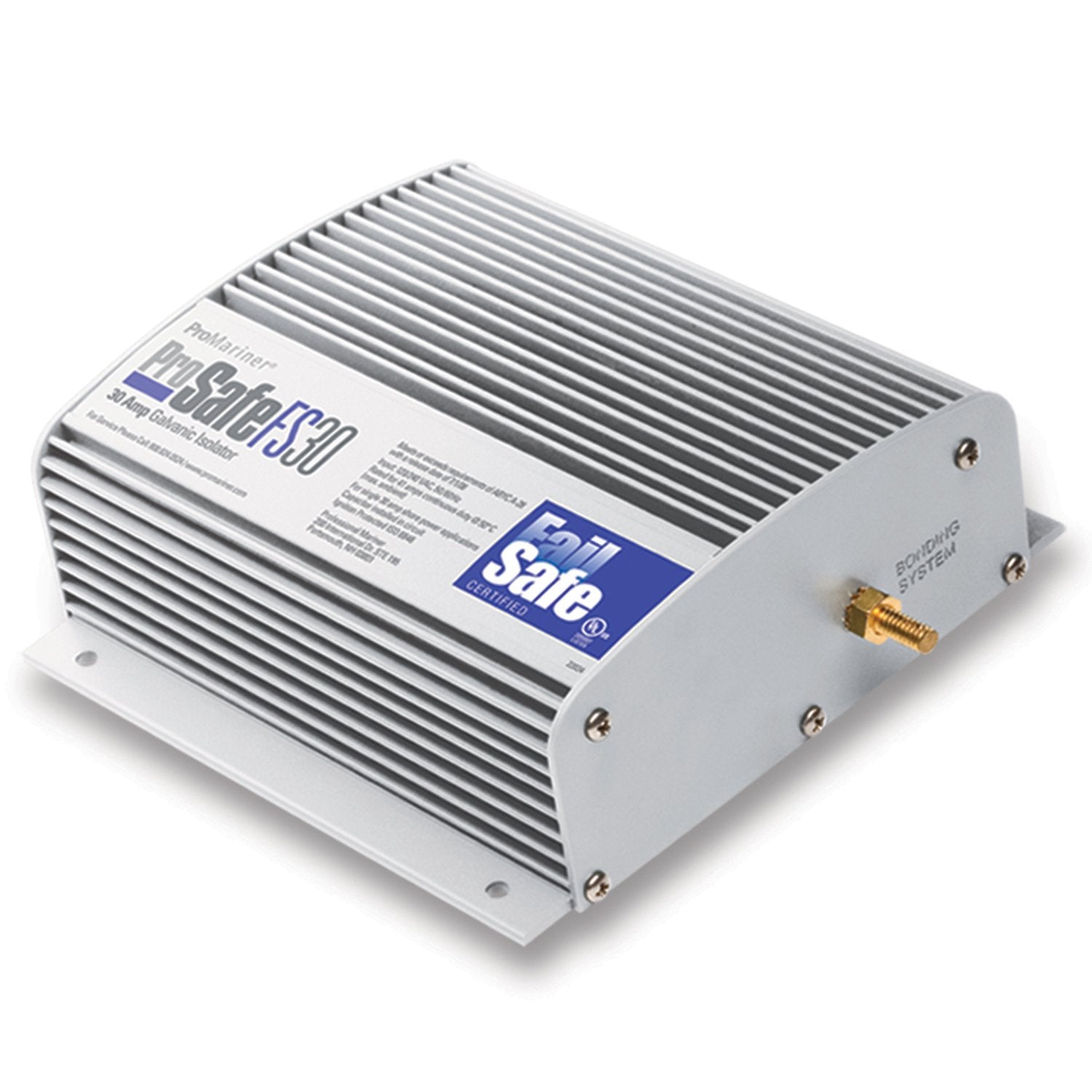

22034 – ProSafe 2 30 Amp FailSafe Galvanic Isolator

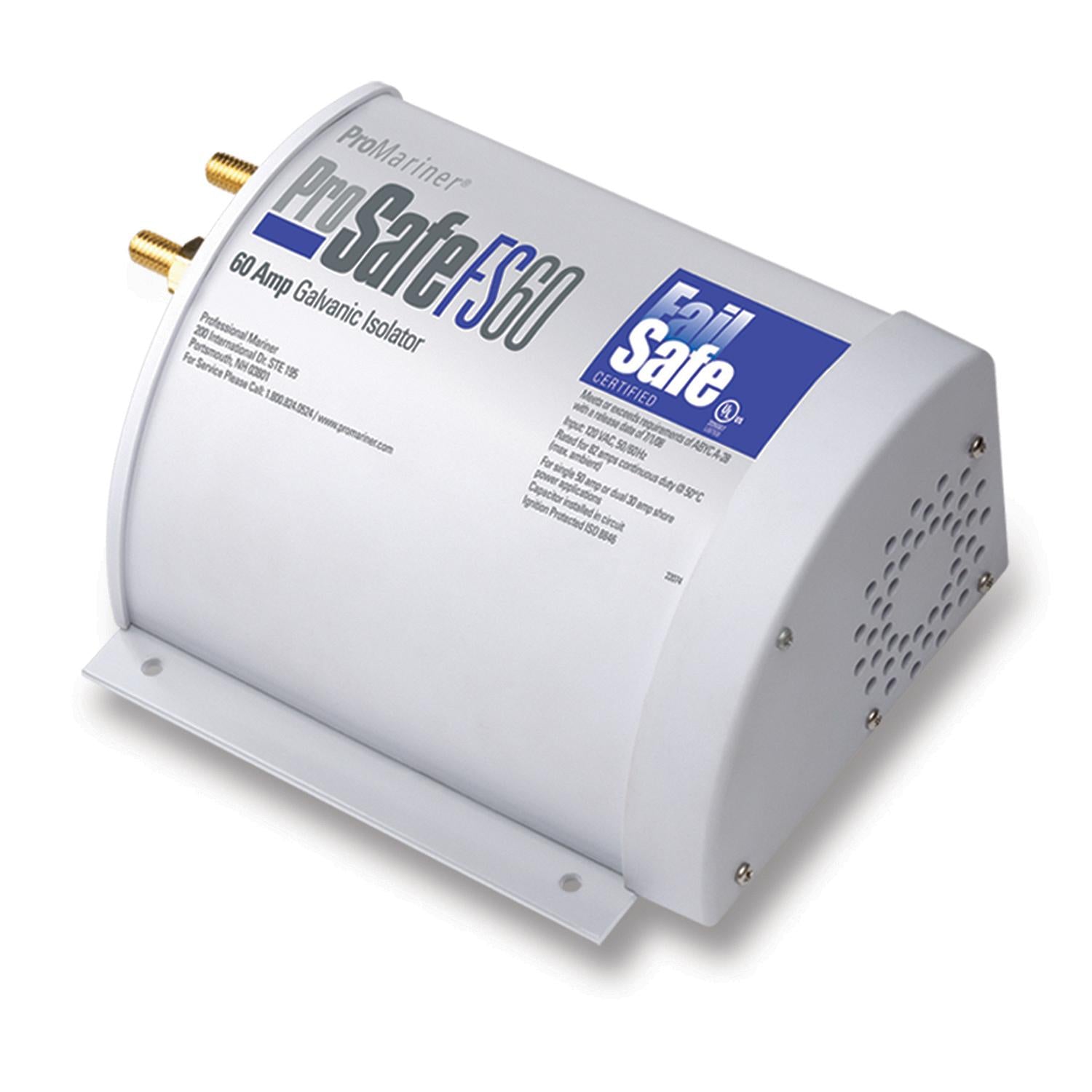

22074 – ProSafe 2 60 Amp FailSafe Galvanic Isolator
Product Description
ProMariner ProSafe 2 FailSafe Galvanic Isolators prevent galvanic corrosion and premature zinc loss by interrupting current flow between boats at marinas while maintaining AC shore power safety ground continuity. ABYC A-28 compliant and UL certified, these isolators use robust flat pack high power semiconductors capable of handling 3,000A (FS30) or 5,000A (FS60) inrush currents. Ignition protected (ISO 8846) for engine compartment mounting, they install simply in the green safety ground wire between AC inlet and panel with gold plated terminations—no monitoring required unlike non-FailSafe models.
Key Features
-
ABYC A-28 compliant, UL certified FailSafe technology
-
Maintains AC safety ground continuity during failure
-
Flat pack semiconductors handle 3,000A/5,000A inrush
-
Prevents galvanic corrosion and zinc loss at marinas
-
Ignition protected for engine compartment installation
-
Gold plated terminations for corrosion resistance
-
No dedicated monitoring required
-
FS30 for 30A shore cords, FS60 for 50A or dual 30A cords
Comparison Table
| Feature | 22034 (30 Amp) | 22074 (60 Amp) |
|---|---|---|
| Amp Rating | 30 Amp | 60 Amp |
| Shore Cord Application | 30A cord | 50A or (2) 30A |
| Inrush Current Capacity | 3,000A | 5,000A |
| FailSafe Certification | ABYC A-28, UL | ABYC A-28, UL |
| Installation Location | Green ground wire | Green ground wire |
| Ignition Protection | ISO 8846 | ISO 8846 |
| Self-Cooling (Conducting) | No | Yes |
What's in the Box
-
ProSafe 2 FailSafe Galvanic Isolator (amp rating per model)
-
Terminal covers and mounting hardware
-
Installation instructions
