Raymarine Cyclone Pedestal Only.

Raymarine Cyclone Pedestals

Raymarine Cyclone Pedestals are designed to support Cyclone radar arrays, offering durable, low-profile mounting solutions with high performance for marine radar operations. They are compatible with multiple Cyclone radar arrays and built to withstand extreme marine environments.

Model Numbers

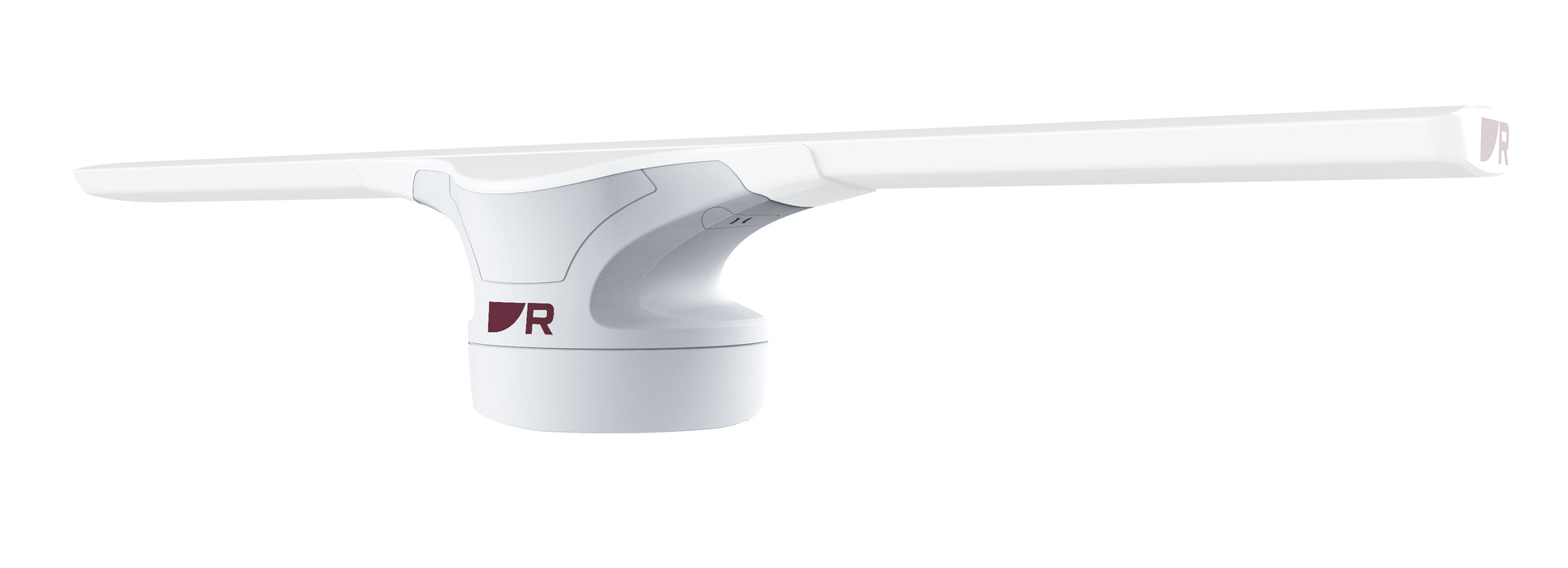

• E70621 – 110 Watt Cyclone Pedestal Only

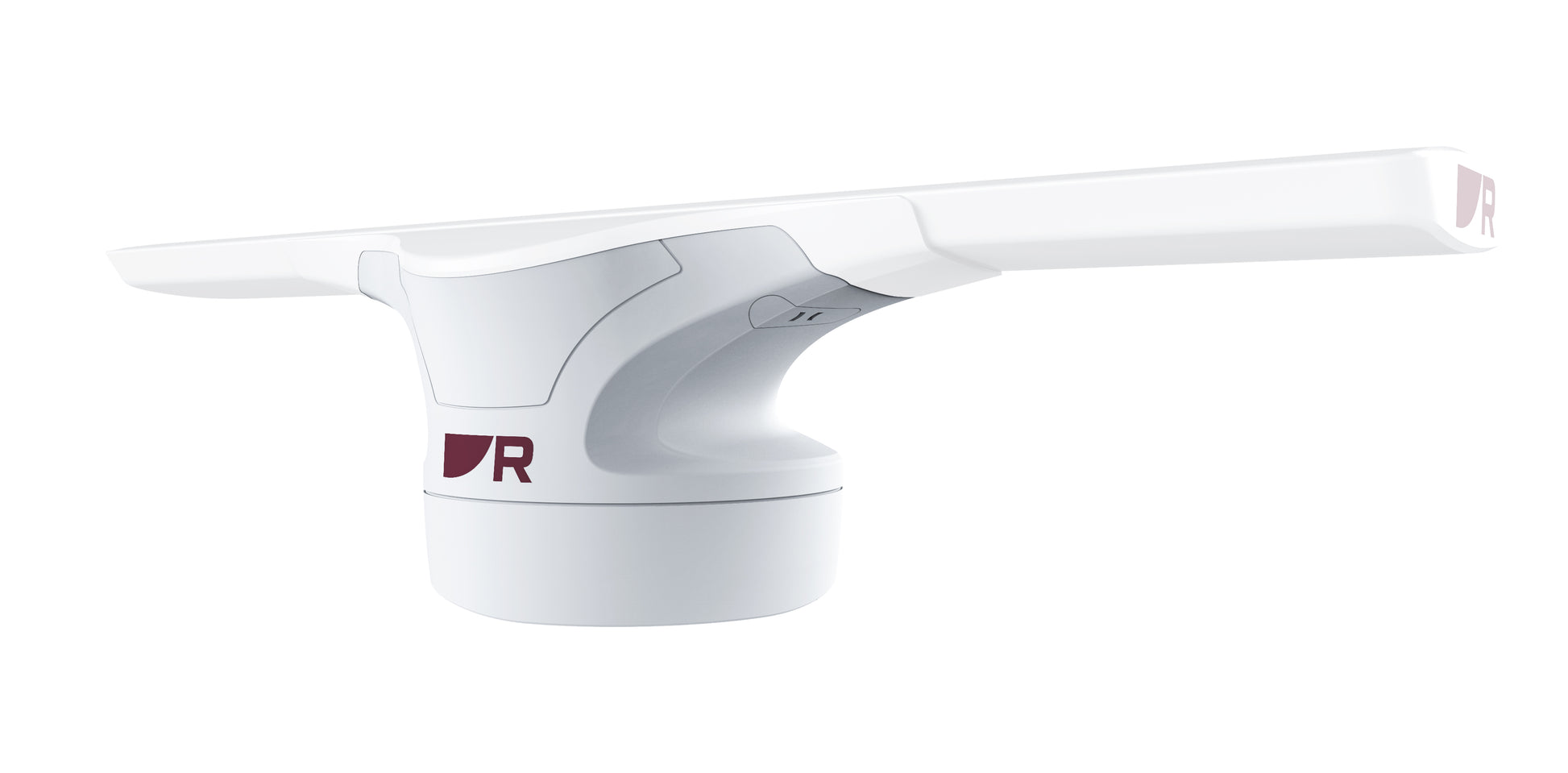

• E70620 – 55 Watt Cyclone Pedestal Only

Key Features

• Designed exclusively as pedestals for Raymarine Cyclone 55W and 110W radar arrays (arrays sold separately)

• Nominal supply voltage: 12 V DC or 24 V DC (range 10.2 V to 31.2 V) using VCM100 converter

• Power consumption: typical 95 W (110W model), 70 W (55W model); max 195 W and 170 W respectively; standby 28 W

• Maximum radar range: 96 nm (110W) and 72 nm (55W)

• Rapid boot time of 40 seconds; standby to transmit in under 5 seconds

• IPX6 waterproof rating for rugged marine conditions

• Designed to withstand winds up to 100 knots

• Equipped with single power and RayNet data connectors

• Transmitter frequency selectable from 9370, 9400, 9430 MHz

• Output power: 110W peak for E70621 and 55W peak for E70620

• Linear receiver characteristic with noise under 5 dB

• Pedestal dimensions: 388 mm x 360 mm x 335 mm (15.27" x 14.17" x 13.18") to top of antenna

• Weight: 16 kg

Model Comparison Table

What’s in the Box

• E70621: 110 Watt Cyclone Pedestal Only

• E70620: 55 Watt Cyclone Pedestal Only
