Raymarine 110 Watt Cyclone Pro Antenna With 15m Cables Series.
Couldn't load pickup availability
Description
Description
Raymarine Cyclone 110 W Solid‑State Open‑Array Radar
Professional‑Grade Performance for Fishing, Weather, and Navigation
The Raymarine Cyclone Radar Series represents the pinnacle of solid‑state radar engineering — combining aircraft‑inspired design, extreme durability, and exceptional target resolution. Delivering 110 W of peak CHIRP pulse compression power, Cyclone offers unmatched precision and speed for professional fishermen and serious mariners.
Its aerodynamic 14‑inch pedestal with a 100‑knot wind rating is designed for the harshest conditions and commercial IEC 62388 compliance. Cyclone provides instant 360° awareness via rotations up to 60 RPM and features advanced target technologies — RangeFusion™, ARPA Tracking, Doppler Detection, and Bird Mode — for superior situational awareness and fish‑finding capability.
Model Numbers

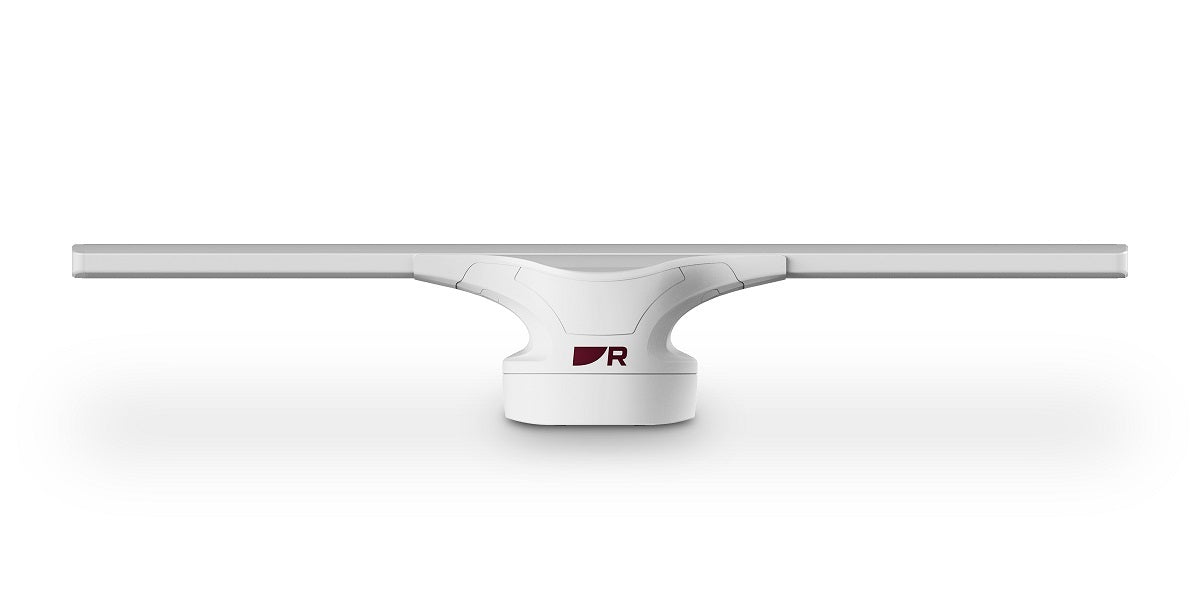

- Cyclone 110 W with 6′ Antenna – Model: T70496

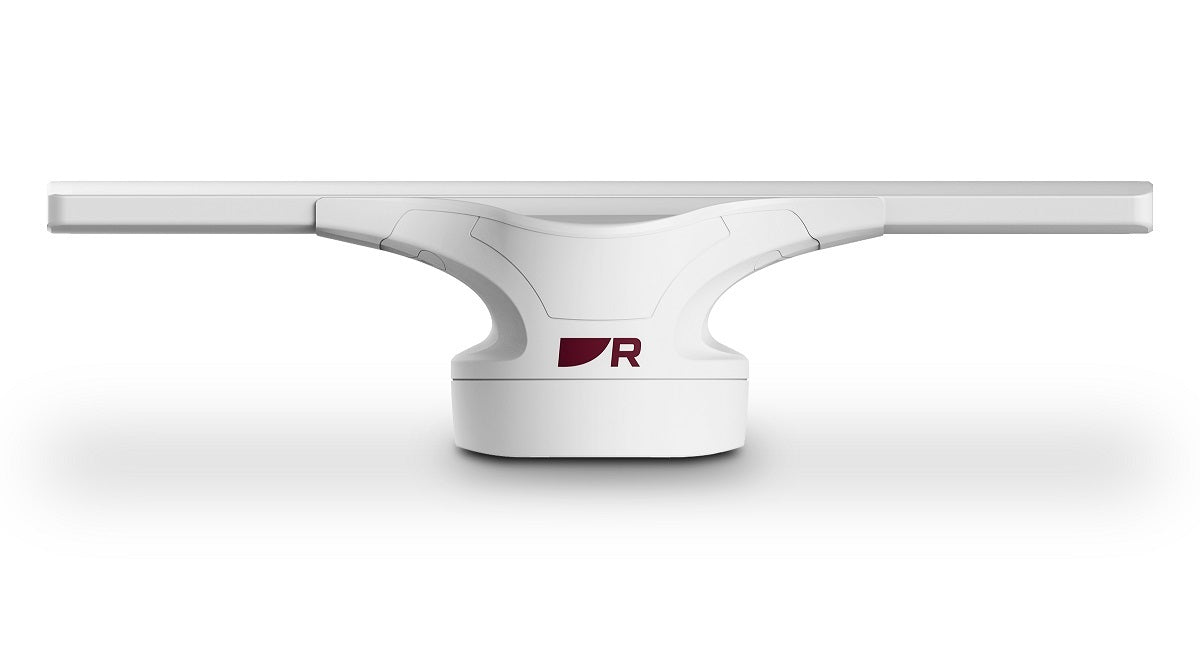

- Cyclone 110 W with 4′ Antenna – Model: T70495

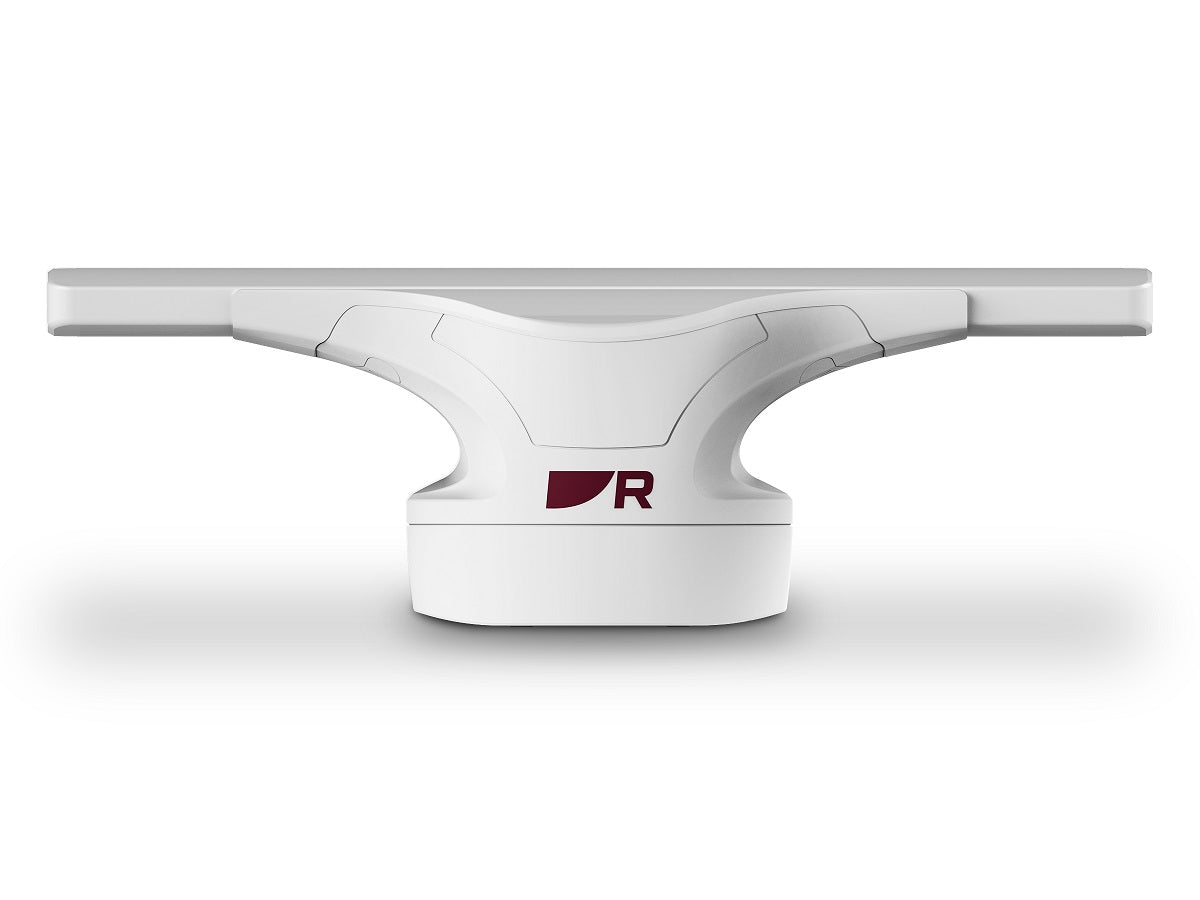

- Cyclone 110 W with 3′ Antenna – Model: T70494
Key Features
- 110 W Solid‑State CHIRP Transmitter for long‑range target definition up to 96 nm.
- CHIRP pulse compression + beam sharpening for unrivaled ray clarity.
- RangeFusion™ technology merges short and long pulses for simultaneous close and distant target returns.
- Doppler target tracking for automatic color differentiation of safe vs hazard contacts.
- ARPA professional‑grade tracking: tracks up to 50 targets — Coast Guard trusted technology.
- Bird Mode: optimizes for avian target detection to locate baitfish and feeding zones.
- High‑speed rotation (12 – 60 RPM) for real‑time target updates.
- Aircraft‑wing‑inspired pedestal: aerodynamic, clean‑cable route, only 13.1 in (335 mm) tall.
- Durable and waterproof design: IPX6 rating with 100 knot wind tolerance.
- Simple RayNet data and power connection: easy integration with Axiom and LightHouse systems.
Model Comparison
| Model | Cyclone 110 W (6′) | Cyclone 110 W (4′) | Cyclone 110 W (3′) |
|---|---|---|---|
| Antenna Length | 1945 mm (76.6 in) | 1336 mm (52.6 in) | 1031 mm (40.6 in) |
| Horizontal Beamwidth | 1.32° | 1.99° | 2.83° |
| Vertical Beamwidth | 25° | 25° | 25° |
| Rotation Speed | 12–60 RPM | 12–60 RPM | 12–60 RPM |
| Peak Output Power | 110 W Solid State | 110 W Solid State | 110 W Solid State |
| Max Range | 96 nm | 96 nm | 96 nm |
| Pedestal Size (H × W × D) | 335 × 388 × 360 mm | Same | Same |
| Pedestal Weight | 16 kg | 16 kg | 16 kg |
| Antenna Weight | 12 kg | 9 kg | 7 kg |
| Wind Rating | 100 knots | 100 knots | 100 knots |
| Power Consumption (Max) | 195 W | 195 W | 195 W |
| Typical Power Use | 95 W | 95 W | 95 W |
Technical Specifications
- Supply Voltage: Nominal 12 V / 24 V DC (10.2 – 31.2 V).
- Connections: 1 × Power, 1 × RayNet Ethernet.
- Transmitter Frequencies: 9370, 9400, 9430 MHz (user selectable).
- Receiver Noise: < 5 dB | Characteristic: Linear.
- Startup: Boot up ~ 40 s | Standby to Transmit < 5 s.
- Waterproof: IPX6 | Humidity: ≤ 93% @ 40 °C (104 °F).
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Environmental: IEC 62388 Certified | Commercial Marine Grade.
What’s in the Box
Cyclone 110 W Radar with 6′ Antenna (T70496):
- E70621 110 W Radar Pedestal
- E70630 6′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
Cyclone 110 W Radar with 4′ Antenna (T70495):
- E70621 110 W Radar Pedestal
- E70629 4′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
Cyclone 110 W Radar with 3′ Antenna (T70494):
- E70621 110 W Radar Pedestal
- E70628 3′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
