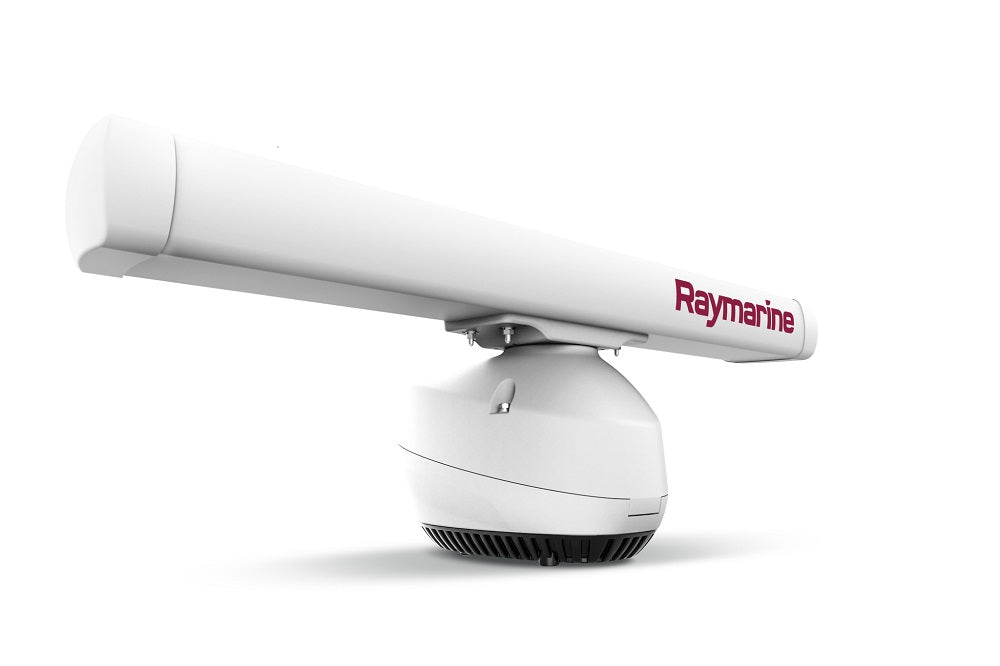

Raymarine 12kW Magnum Open Array With 15m Cable.

Raymarine Magnum 12 kW Open‑Array Radar Series
Long‑Range Power and Precision Target Tracking for Professional Navigation

The Raymarine Magnum 12 kW Radar delivers true commercial‑grade radar performance for serious anglers, cruisers, and offshore navigators seeking unmatched long‑range visibility and target clarity. Combining proven pulse radar power with advanced features like TrueTrails™, Bird Mode, and ARPA target tracking, Magnum brings reliable situational awareness and superior fish‑location accuracy.

Using technologies trusted by the U.S. Coast Guard, Magnum’s beam sharpening produces sub‑1° bearing resolution and RangeFusion™‑like imaging for simultaneous short and long‑range target detail up to 96 nm. The Enhanced Bird Mode locks onto flocks up to 10 nm away, helping anglers pinpoint feeding activity and maximize efficiency offshore.

---

Model Numbers

- Magnum 12 kW with 6′ Antenna and 15 m Cable – Model: T70414
- Magnum 12 kW with 4′ Antenna and 15 m Cable – Model: T70412

---

Key Features

- 12 kW high‑power open‑array pulse radar for superior target definition and longer range.
- Enhanced Bird Mode detects avian activity up to 10 nm for fish‑finding advantage.
- Beam Sharpening technology delivers ≤ 1° bearing resolution.
- TrueTrails™ target history to visualize course and motion of moving vessels.
- MARPA auto‑tracking: Track up to 25 targets with heading sensor integration.
- Real‑time heading updates for smooth chart overlay during maneuvers.
- Designed for Axiom and LightHouse 3+ systems, ensuring instant target response.
- Dual rotation speeds: 24 RPM and 48 RPM (auto‑switching for fast targets).
- Pulse compression accuracy with matched digital receiver bandwidth.
- Solid pedestal construction rated for commercial use and marine harshness.

---

Model Comparison

---

Technical Specifications

- Supply Voltage: 10.8 – 32 V DC (via VCM100 converter).
- Receiver Bandwidth: Digital filter matched to each pulse length.
- Pulse Length / PRF: 8 settings, auto managed by system.
- Displayed Video Levels: 256 (8‑bit resolution).
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Waterproofing: IPX6.
- Pedestal Dimensions: Approx. 388 × 360 × 335 mm (15.2 × 14.2 × 13.2 in).
- Weight: Pedestal ≈ 17 kg | 6′ Antenna ≈ 12 kg | 4′ Antenna ≈ 9 kg.
- Range Resolution: Better than 25 m at short range settings.
- System Features: Bird Mode, TrueTrails™, MARPA, Chart Overlay, and ARPA.

---

Compatibility Notes

- Full feature set: Raymarine Axiom / Axiom Pro (LightHouse 3.4 or later).
- Limited feature support: eS / gS Series LH 3.3 +, a/c/e/eS/gS LH 2 v19.03.
- Legacy E‑Wide, C‑Wide, G‑Series, and E‑Classic support basic target view only.

---

What’s in the Box

T70414 – 12 kW Magnum with 6′ Antenna:
- Pedestal Assembly (12 kW Transceiver)
- 6′ Open‑Array Antenna
- VCM100 Voltage Converter Module
- 15 m RayNet Radar Cable
- Denso Paste, Mounting Studs (× 4), Nuts (× 4), Washers, and Spring Washers
- Cable Tightening Tool, VCM100 Mounting Screws (× 2)
- Documentation Pack

T70412 – 12 kW Magnum with 4′ Antenna:
- Pedestal Assembly (12 kW Transceiver)
- 4′ Open‑Array Antenna
- VCM100 Voltage Converter Module
- 15 m RayNet Radar Cable
- Mounting Studs, Nuts, Washers, & Tool Set
- Denso Paste & Documentation Pack
