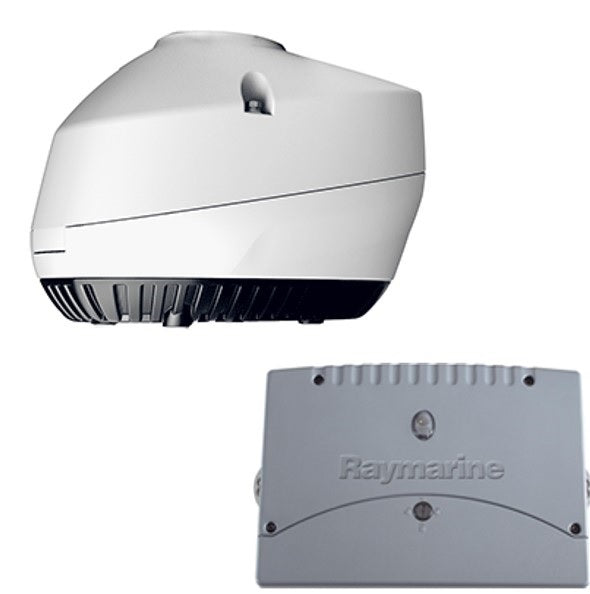

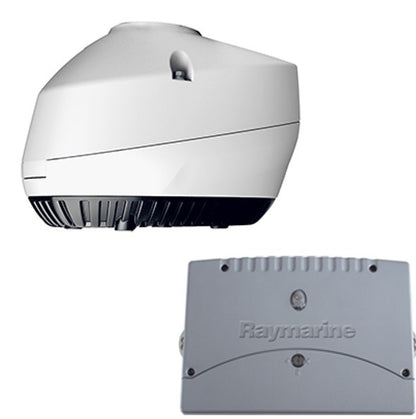

Raymarine Kw Magnum Pedestal With VCM100.

Raymarine Magnum Radar Pedestal Series

Models:

• 12 kW Magnum Pedestal with VCM100 (Model: E70487)

• 4 kW Magnum Pedestal with VCM100 (Model: E70484)

 Key Features

Raymarine Magnum 12 kW Radar Pedestal (Model E70487)
The Magnum 12 kW open array radar pedestal delivers long‑range performance and superior target imaging, making it ideal for blue‑water vessels. Compatible with Raymarine’s Axiom and Axiom Pro displays running LightHouse 3, it is also backward compatible with legacy MFDs (a, c, e, eS, gS, and G‑Series).
- Maximum range up to 96 nautical miles
- Compatible with 4 ft or 6 ft open array antennas (sold separately)
- Superior Bird Mode detects sea bird flocks up to 10 nm away
- Enhanced beam‑sharpening technology delivers high target separation (< 1° resolution)
- True Trails™ target history visualizes movement and directional wake
- Automatic MARPA target acquisition for real‑time collision avoidance
- Up to 48 RPM rotation rate for fast target tracking
- IPX6 waterproof rating
- Compatible Voltage: 10.8 – 32 V DC (via VCM100 converter)
- Power consumption (typical): Transmit < 110 W / Standby < 30 W

Raymarine Magnum 4 kW Radar Pedestal (Model E70484)
The Magnum 4 kW pedestal delivers the same advanced processing and target clarity as its 12 kW counterpart in a compact design ideal for coastal or offshore cruising. It integrates seamlessly with Raymarine Axiom and Legacy displays.
- Range up to 72 nautical miles
- Available for 4 ft or 6 ft open array antennas (sold separately)
- Enhanced beam‑sharpening radar imaging (1 – 1.8° horizontal beam)
- True Trails™ motion display for visual movement tracking
- Superior Bird Mode for fish‑finding applications
- 24 / 48 RPM automatic scanning modes
- IPX6 waterproof design
- Power consumption (typical): Transmit < 70 W / Standby < 30 W

Comparison Table

What’s in the Box

Magnum 12 kW Pedestal (E70487)
- Raymarine Magnum 12 kW Radar Pedestal
- VCM100 Voltage Converter Module
- Cable Tightening Tool
- Mounting Hardware Set (Studs, Nuts, Washers)
- Lifting Sling and Mounting Template
- Installation Guide and Documentation

Magnum 4 kW Pedestal (E70484)
- Raymarine Magnum 4 kW Radar Pedestal
- VCM100 Voltage Converter Module
- Cable Tightening Tool
- Mounting Hardware Set (Studs, Nuts, Washers)
- Lifting Sling and Mounting Template
- Installation Guide and Documentation
