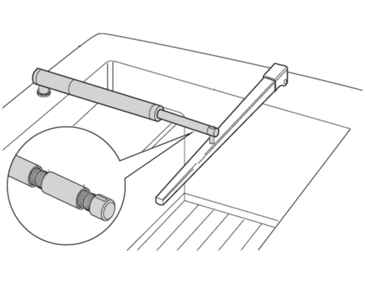

Raymarine Pushrod Extensions Series.

Raymarine Tiller Brackets for Tiller Pilots

Models and Sizes:

• 1" Tiller Bracket – Model: D009

• 3" Tiller Bracket – Model: D011

• 4" Tiller Bracket – Model: D159

• 5" Tiller Bracket – Model: D160

Model Overview

Raymarine tiller brackets are used to ensure the horizontal alignment of tiller pilots when the boat’s tiller is positioned higher or lower than the fixed end of the tiller drive.
They allow precise adjustment of tiller pilot mounting positions for smooth steering performance.

All brackets are built with marine-grade metals, ensuring corrosion resistance and long-life durability even under constant marine exposure. Installation flexibility allows the brackets to be mounted either above or below the tiller depending on the installation requirements.

Key Features:

• Ensures horizontal tiller pilot positioning

• Allows installation flexibility for boats with non-level tillers

• Designed for ST1000, ST2000, ST1000+, ST2000+, and Evolution tiller pilots

• Constructed from durable, corrosion-resistant materials for marine use

• Supplied with mounting holes for standard 6 mm (¼") bolts

Comparison Table

What’s in the Box

• Chosen-size Raymarine tiller bracket (D009, D011, D159, or D160)

• Mounting bolts, washers, and nuts

• Installation instructions
