Raymarine Pedastal Socket Series.
Couldn't load pickup availability
Description
Description
Raymarine Tiller Pilot Pedestal Sockets (For Horizontal Mounting)
Models and Sizes:
-
1.5" Pedestal Socket – Model: D026
-
2" Pedestal Socket – Model: D027
-
2.5" Pedestal Socket – Model: D028
-
3" Pedestal Socket – Model: D029
-
3.5" Pedestal Socket – Model: D030
Model Overview and Key Features
Raymarine Pedestal Sockets allow for horizontal mounting of the tiller pilot when the fixed end of the pilot is positioned lower than the tiller arm. These pedestal sockets are essential for adapting piloting hardware to various tiller configurations while maintaining proper alignment and optimal autopilot performance.
They are constructed from marine-grade materials and designed for secure mounting using bolts, making installation robust and durable in demanding marine environments.
Comparison Table

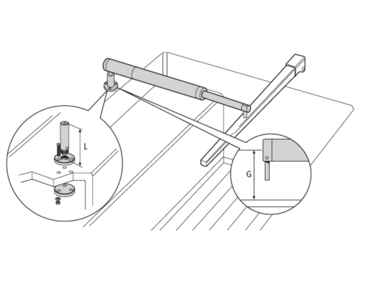

| Feature | D026 (1.5") | D027 (2.0") | D028 (2.5") | D029 (3.0") | D030 (3.5") |
|---|---|---|---|---|---|
| Pedestal Length (L) | 38 mm (1.5 in) | 50 mm (2.0 in) | 64 mm (2.5 in) | 76 mm (3.0 in) | 89 mm (3.5 in) |
| Total Length (G) | 102 mm (4.0 in) | 114 mm (4.5 in) | 127 mm (5.0 in) | 140 mm (5.5 in) | 153 mm (6.0 in) |
| Purpose | Raise tiller pilot mounting for horizontal alignment | Raise tiller pilot mounting for horizontal alignment | Raise tiller pilot mounting for horizontal alignment | Raise tiller pilot mounting for horizontal alignment | Raise tiller pilot mounting for horizontal alignment |
| Material | Marine-grade metal | Marine-grade metal | Marine-grade metal | Marine-grade metal | Marine-grade metal |
| Mounting Holes | Three 6 mm (1/4 in) diameter | Three 6 mm (1/4 in) diameter | Three 6 mm (1/4 in) diameter | Three 6 mm (1/4 in) diameter | Three 6 mm (1/4 in) diameter |
| Compatibility | Fits most Raymarine tiller pilots and related systems | Fits most Raymarine tiller pilots and related systems | Fits most Raymarine tiller pilots and related systems | Fits most Raymarine tiller pilots and related systems | Fits most Raymarine tiller pilots and related systems |
| Approximate Weight | Light and compact | Light and compact | Light and compact | Light and compact | Light and compact |
What’s in the Box
-
Raymarine pedestal socket (model ordered)
-
Mounting bolts, nuts, and washers
-
Installation template and instructions
