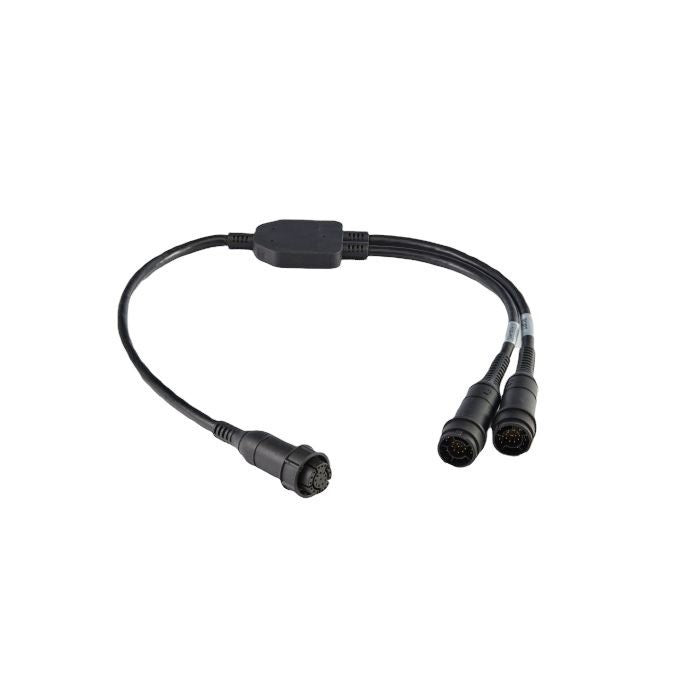

Raymarine .3m Y-Cable For RealVision 3D Transducers

Product Description

Raymarine 0.3m Y-Cable for RealVision 3D Transducers connects dual RealVision 3D transducer arrays to a single sonar port.

Product Overview

Boat installers use this Y-cable for through-hull installations combining port and starboard RealVision 3D transducer pairs. It enables 3D sonar imaging, CHIRP DownVision, and SideVision from dual arrays on Axiom displays during marine navigation.

Key Specifications

• 0.3 meters (1 foot) length for split transducer installations.

• Single 25-pin connector to MFD; dual 25-pin connectors to transducers.

• Waterproof twist-lock connectors for secure marine connections.

• Designed for RV-300 series plastic thru-hull transducers.

Technical Specifications

• Combines signals from port/starboard RealVision 3D arrays.

• Compatible with Axiom RVX sonar modules and Axiom Pro displays.

• Supports 600W RMS power across all four sonar channels.

• Used with extension cables for console-to-transducer routing.

What's in the Box

• Single A80478 0.3m RealVision 3D Y-Cable.

• No extension cables or mounting hardware included.
