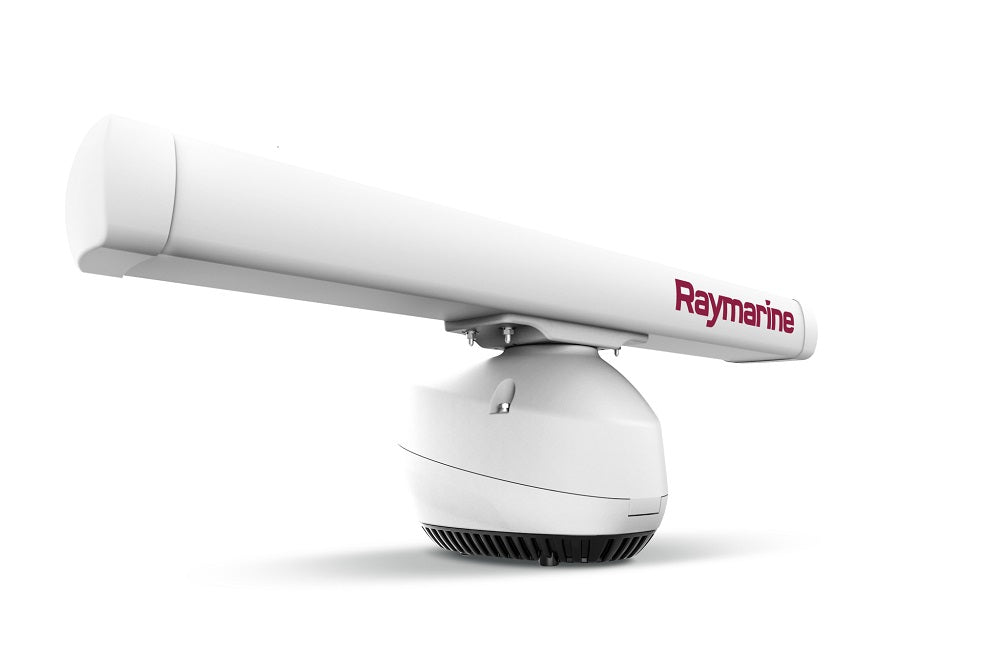

Raymarine 4kW Magnum Open Array With 15m Cable.
Couldn't load pickup availability
Description
Description
Raymarine Magnum 4 kW Open‑Array Radar Series
Long‑Range Performance with Beam Sharpening and Advanced Bird Mode
The Raymarine Magnum 4 kW open‑array radar delivers Raymarine’s proven pulse‑radar power in a robust and elegantly designed package. Built for serious anglers and commercial operators alike, Magnum’s Enhanced Bird Mode, TrueTrails™ target history, and MARPA tracking provide the accuracy and confidence needed for safe navigation and productive offshore fishing.
Using advanced beam sharpening technology, Magnum provides 1‑degree‑class bearing resolution and exceptional range clarity up to 72 nautical miles. It pairs seamlessly with Raymarine Axiom and LightHouse systems, featuring real‑time heading updates through Raymarine’s Evolution 9‑axis heading sensor technology for smooth, accurate target tracks in any maneuver.
Model Numbers
- Magnum 4 kW Radar with 6′ Antenna and 15 m Cable – Model: T70410
- Magnum 4 kW Radar with 4′ Antenna and 15 m Cable – Model: T70408
Key Features
- 4 kW pulse radar transmitter for true long‑range detection and fine target detail.
- Enhanced Bird Mode for avian detection up to 10 nm ahead to locate baitfish and game fish.
- Beam sharpening reduces effective horizontal width to < 1° for map‑like coastal imaging.
- TrueTrails™ target history displays past motion for safer maneuvering.
- Automatic and manual MARPA tracking (up to 25 targets with heading sensor).
- Real‑time heading updates enable fluid rotation without image refresh.
- Dual rotation rates (24 / 48 RPM) for fast target tracking at short range.
- Digital receiver bandwidth matching for optimized pulse target processing.
- Commercial‑grade hardware rated to IEC 62388 standards for reliability.
Model Comparison
| Feature | Magnum 4 kW – 6′ (T70410) | Magnum 4 kW – 4′ (T70408) |
|---|---|---|
| Peak Output | 4 kW | 4 kW |
| Range Scale | 72 nm | 72 nm |
| Antenna Length | 6.4 ft (1.95 m) | 4.4 ft (1.34 m) |
| Horizontal Beam Width | 1.15° (≤ 1° eff.) | 1.85° (≤ 1° eff.) |
| Vertical Beam Width | 25° | 25° |
| Rotation Speeds | 24 / 48 RPM (auto switching) | 24 / 48 RPM (auto switching) |
| MARPA Targets | Up to 25 | Up to 25 |
| Bird Mode Detection | ≈ 10 nm | ≈ 10 nm |
| Voltage Input | 10.8–32 V DC (via VCM100) | 10.8–32 V DC (via VCM100) |
| Power Consumption | 70 W TX / 30 W standby / 1.2 W sleep | Same |
| Compatibility | Axiom / Axiom Pro (LH 3.4 +) | Axiom / Axiom Pro (LH 3.4 +) |
| Waterproof Rating | IPX6 | IPX6 |
Technical Specifications
- Receiver Bandwidth: Digitally matched to pulse length for optimal echo separation.
- Pulse Length / PRF: Eight auto‑optimized settings.
- Displayed Video Levels: 256 (8‑bit precision).
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Supply Voltage: 12 or 24 V DC (10.8 – 32 V range via VCM100).
- Typical Power Use: 70 W TX / 30 W STBY | Sleep: < 1.2 W.
- Waterproof Rating: IPX6 | Side Lobes: ≤ –21 dB (inside 10°).
- Pedestal Dimensions: 388 × 360 × 335 mm (15.2 × 14.2 × 13.2 in).
- Pedestal Weight: 16 – 17 kg | 6′ Antenna ≈ 12 kg | 4′ Antenna ≈ 9 kg.
Compatibility Summary
- Full Feature Set: Axiom / Axiom Pro (LightHouse 3.4 or later).
- Limited Support: eS / gS LightHouse 3.3+, a/c/e LightHouse II v19.03 and earlier.
- Legacy E/C/G‑Series provide basic target returns only (no Bird Mode or TrueTrails™).
What’s in the Box
T70410 – 4 kW Magnum with 6′ Antenna:
- Magnum 4 kW Pedestal Assembly
- 6′ Open‑Array Antenna
- VCM100 Voltage Converter Module
- 15 m RayNet Radar Cable
- Denso Paste, Studs (× 4), Nuts (× 4), Plain & Spring Washers (× 4 each)
- Cable Tightening Tool & VCM100 Mounting Screws (× 2)
- Documentation Pack
T70408 – 4 kW Magnum with 4′ Antenna:
- Magnum 4 kW Pedestal Assembly
- 4′ Open‑Array Antenna
- VCM100 Voltage Converter Module
- 15 m RayNet Radar Cable
- Mounting Hardware & Cable Tool Set
- Documentation Pack
