Raymarine 55 Watt Cyclone Antenna With 15m Cables Series.
Couldn't load pickup availability
Description
Description
Raymarine Cyclone 55 W Solid‑State Open‑Array Radar Series
Aerodynamic Design and CHIRP Performance for Complete Situational Awareness
The Raymarine Cyclone 55 W Series combines cutting‑edge solid‑state radar performance with aerodynamic engineering inspired by aircraft‑wing design. Certified to IEC 62388 commercial grade standards and rated for 100‑knot winds, Cyclone’s sleek profile (only 335 mm / 13 in tall) delivers extreme durability and superior target definition.
Powered by Raymarine’s latest CHIRP pulse compression technology, Cyclone radars deliver precision target separation and high‑resolution imagery from close quarters to 72 nm range. RangeFusion™ technology combines short and long pulses for a single, high‑clarity radar view, while Bird Mode and Doppler target tracking enhance awareness and safety for both sportfishing and navigation.
Model Numbers

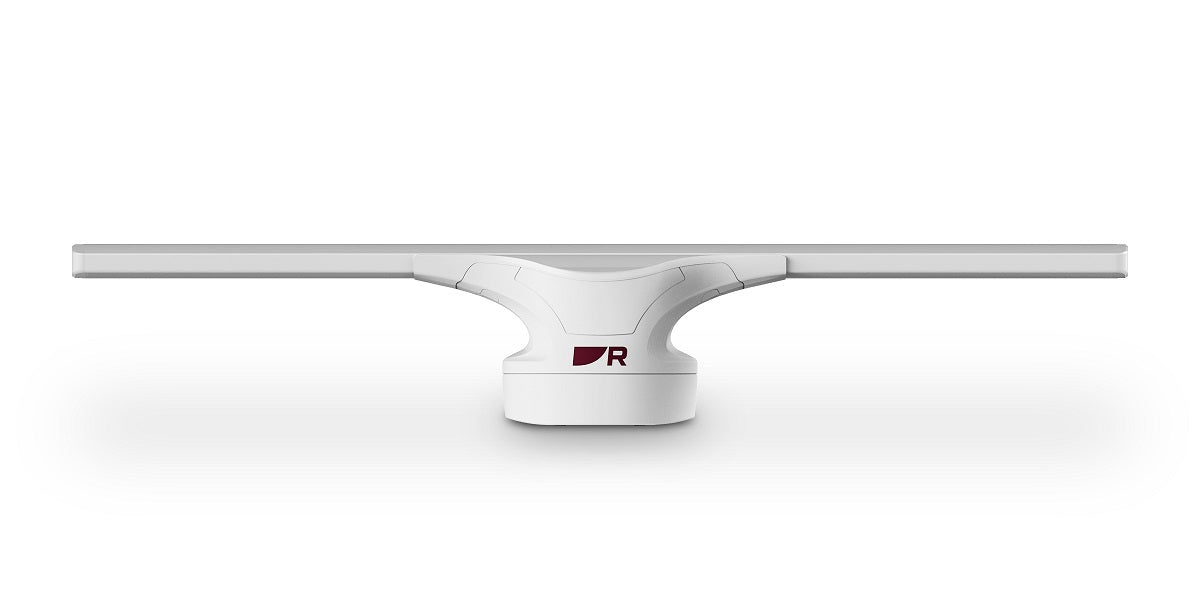

- Cyclone 55 W with 6′ Antenna – Model: T70493

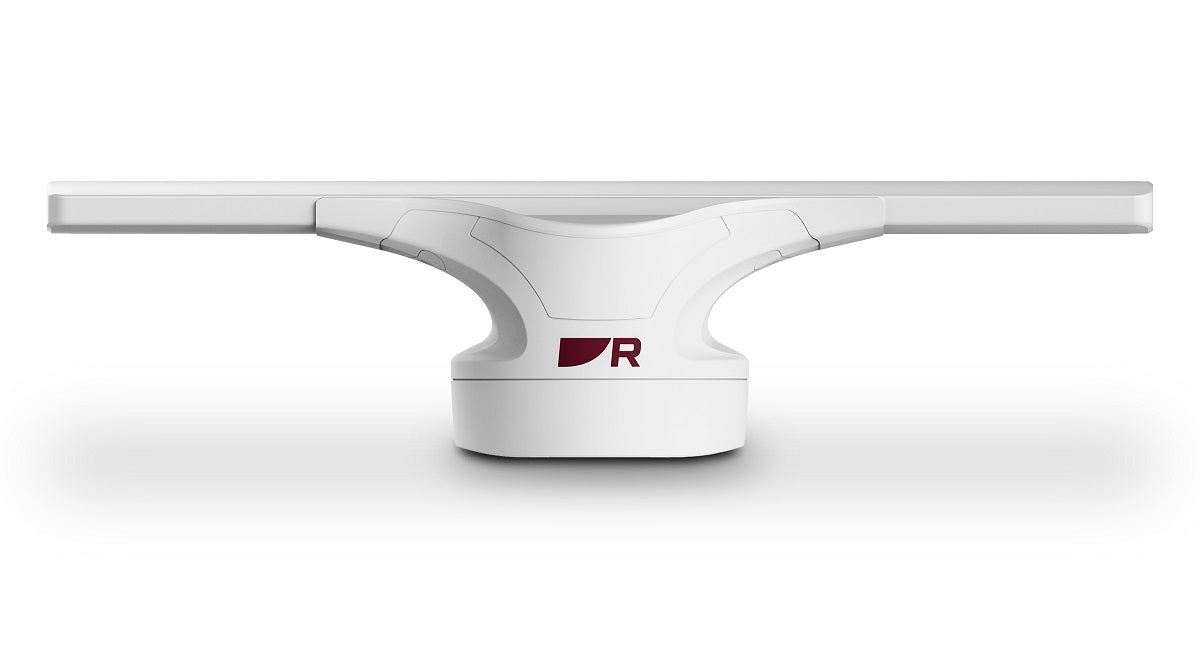

- Cyclone 55 W with 4′ Antenna – Model: T70492

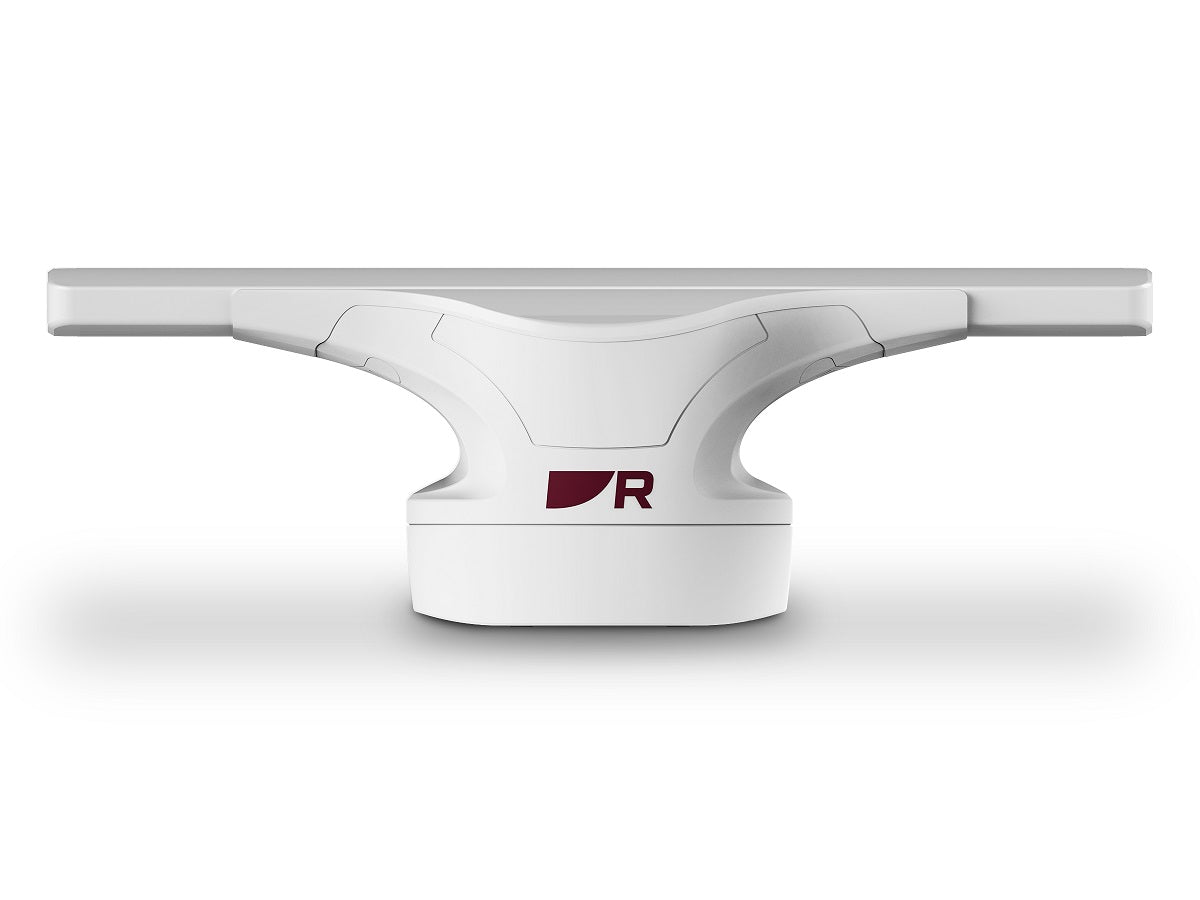

- Cyclone 55 W with 3′ Antenna – Model: T70491
Key Features
- 55 W CHIRP Solid‑State Radar for clear, high‑contrast target imaging.
- RangeFusion™ pulse blending shows near and distant targets with equal clarity.
- High‑speed imaging at up to 60 RPM for real‑time situational updates.
- Professional ARPA target tracking: up to 50 targets, Coast Guard‑trusted precision.
- Doppler target tracking for instant color coded hazard awareness.
- Enhanced Bird Mode: fine‑tuned for sea bird and bait school detection.
- Compact 13.1″ (335 mm) height for flexible mount options.
- Raymarine beam sharpening for superior separation and image definition.
- Clean, concealed cable routing via Cyclone’s innovative pedestal design.
- Rugged IPX6 construction with 100 knot wind rating.
Model Comparison
| Model | Cyclone 55 W (6′) | Cyclone 55 W (4′) | Cyclone 55 W (3′) |
|---|---|---|---|
| Antenna Length | 1945 mm (76.6 in) | 1336 mm (52.6 in) | 1031 mm (40.6 in) |
| Horizontal Beamwidth | 1.32° | 1.99° | 2.83° |
| Vertical Beamwidth | 25° | 25° | 25° |
| Peak Output Power | 55 W (CHIRP) | 55 W (CHIRP) | 55 W (CHIRP) |
| Rotation Speed | 12–60 RPM | 12–60 RPM | 12–60 RPM |
| Maximum Range | 72 nm | 72 nm | 72 nm |
| Pedestal Dimensions (H × W × D) | 335 × 388 × 360 mm | Same | Same |
| Pedestal Weight | 16 kg | 16 kg | 16 kg |
| Antenna Weight | 12 kg | 9 kg | 7 kg |
| Wind Rating | 100 knots | 100 knots | 100 knots |
| Typical Power Use | 70 W | 70 W | 70 W |
| Max Power Use | 170 W | 170 W | 170 W |
Technical Specifications
- Voltage (VCM100): 12 V / 24 V DC (Nominal), Range 10.2 – 31.2 V.
- Current Consumption: 70 W typical / 170 W max / 28 W standby.
- Transmitter Frequencies: 9370, 9400, 9430 MHz (selectable).
- Receiver Noise: < 5 dB | Characteristic: Linear.
- Startup Time: Boot ≈ 40 s | Standby‑to‑Transmit < 5 s.
- Operating Temp: –25 °C to +55 °C (–13 °F to 131 °F).
- Waterproof: IPX6 | Humidity ≤ 93% @ 40 °C.
- Max Range Scale: 72 nautical miles.
- Max Wind Speed: 100 knots.
- Compliance: Meets IEC 62388 shipborne radar standard.
What’s in the Box
Cyclone 55 W Radar with 6′ Antenna (T70493):
- E70620 55 W Radar Pedestal
- E70630 6′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
Cyclone 55 W Radar with 4′ Antenna (T70492):
- E70620 55 W Radar Pedestal
- E70629 4′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
Cyclone 55 W Radar with 3′ Antenna (T70491):
- E70620 55 W Radar Pedestal
- E70628 3′ Open‑Array Antenna
- A80653 15 m Power Cable
- A8058 15 m RayNet Data Cable
