Raymarine Cyclone Antenna Only.

Raymarine Cyclone Open‑Array Antenna Series – Replacement Antennas
High‑Performance Antenna Options for Raymarine Cyclone and Cyclone Pro Radars

The Raymarine Cyclone Antennas are engineered for maximum performance and durability in demanding marine environments. Inspired by aircraft wing design, each antenna delivers exceptional aerodynamic stability, maintains a 100‑knot wind rating, and meets IEC 62388 commercial‑grade radar standards.

These replacement open‑arrays provide optimized horizontal beamwidths for varying vessel sizes and application requirements — from wide‑coverage coastal navigation to long‑range offshore detection. Each antenna features balanced construction and precise polarization for Sharper target returns with Raymarine CHIRP and Doppler‑enabled Cyclone radar pedestals.

---

Model Numbers

- Cyclone 6′ Antenna Only – Model: E70630
- Cyclone 4′ Antenna Only – Model: E70629
- Cyclone 3′ Antenna Only – Model: E70628

---

Key Features

- Aircraft‑wing‑inspired open‑array design — engineered for stability and strength.
- Certified 100‑knot wind rating for offshore durability.
- Optimized beamwidth performance: choose 3′, 4′, or 6′ for target range and definition.
- Complies with IEC 62388 shipborne radar standards.
- Horizontal polarization and beam stability for precise target returns.
- Compatible with Raymarine Cyclone and Cyclone Pro pedestals.

---

Model Comparison

---

Technical Specifications

- Transmitter Compatibility: Raymarine Cyclone Series pedestals (55 W / 110 W).
- Waterproof Rating: IPX6.
- Operating Temperature: –25 °C to +55 °C (–13 °F to 131 °F).
- Material: Marine‑grade composite with internal alignment reinforcement.
- Installation: Factory‑calibrated mount interface for E70620 / E70621 pedestals.

---

What’s in the Box

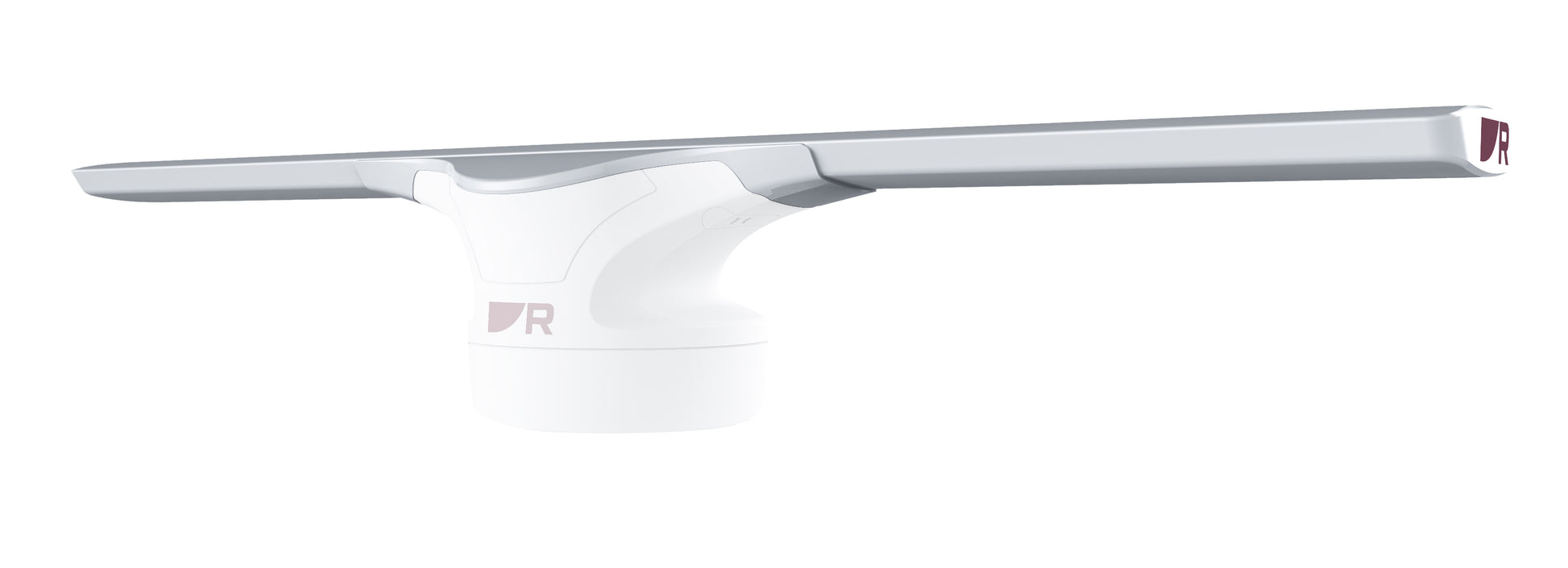

E70630 – Cyclone 6′ Antenna:
- 6‑foot open‑array antenna assembly

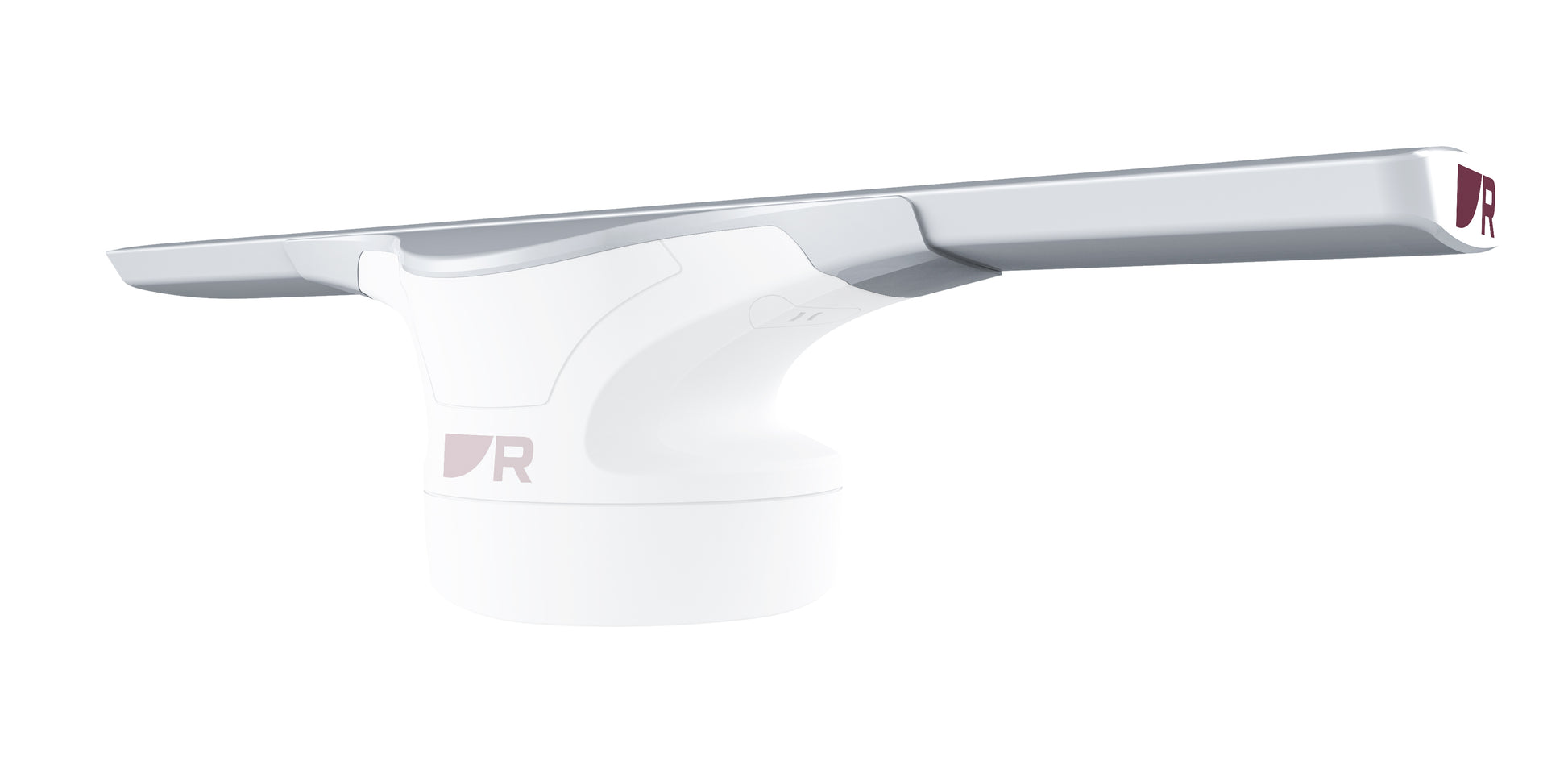

E70629 – Cyclone 4′ Antenna:
- 4‑foot open‑array antenna assembly

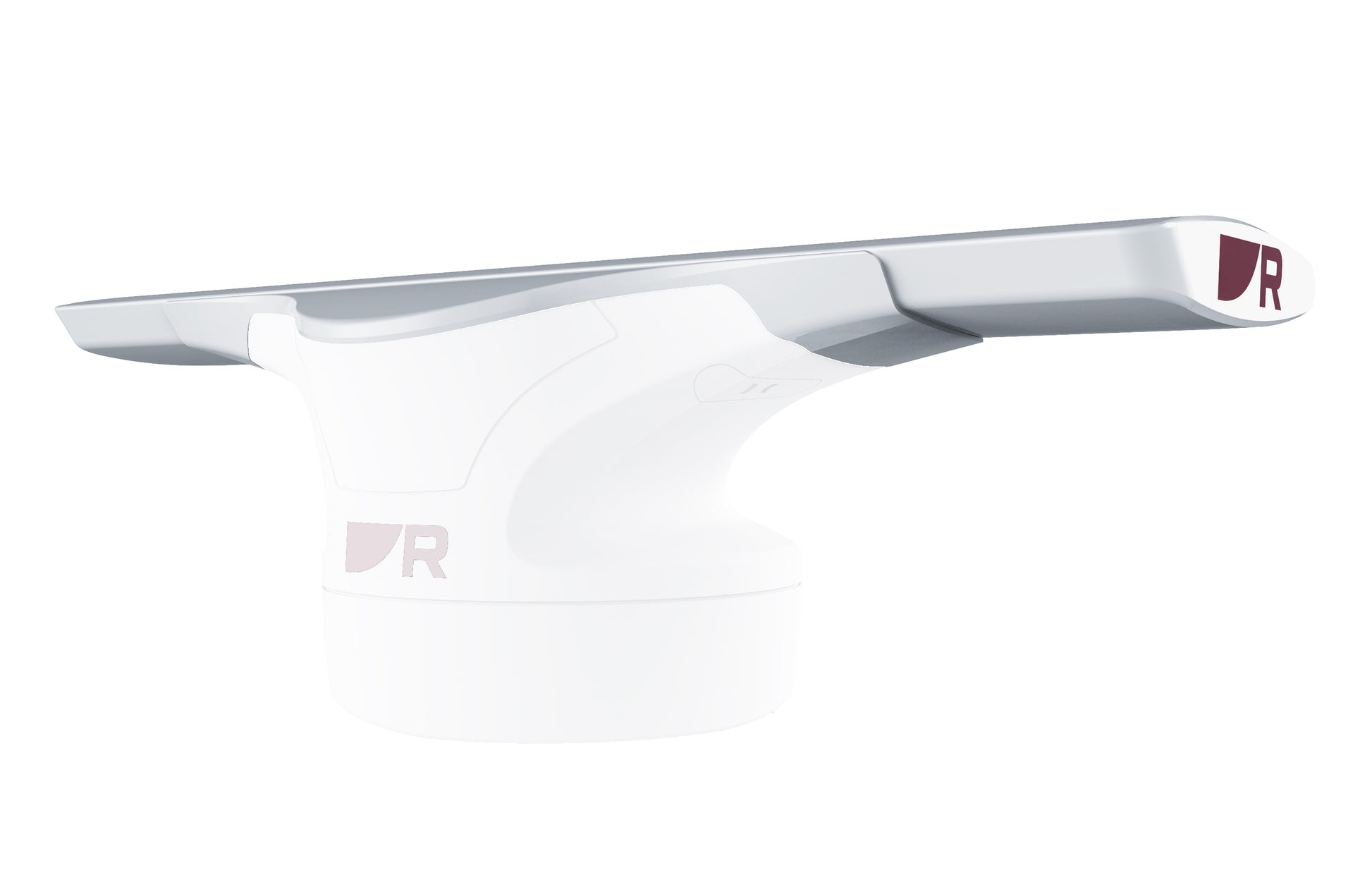

E70628 – Cyclone 3′ Antenna:
- 3‑foot open‑array antenna assembly
