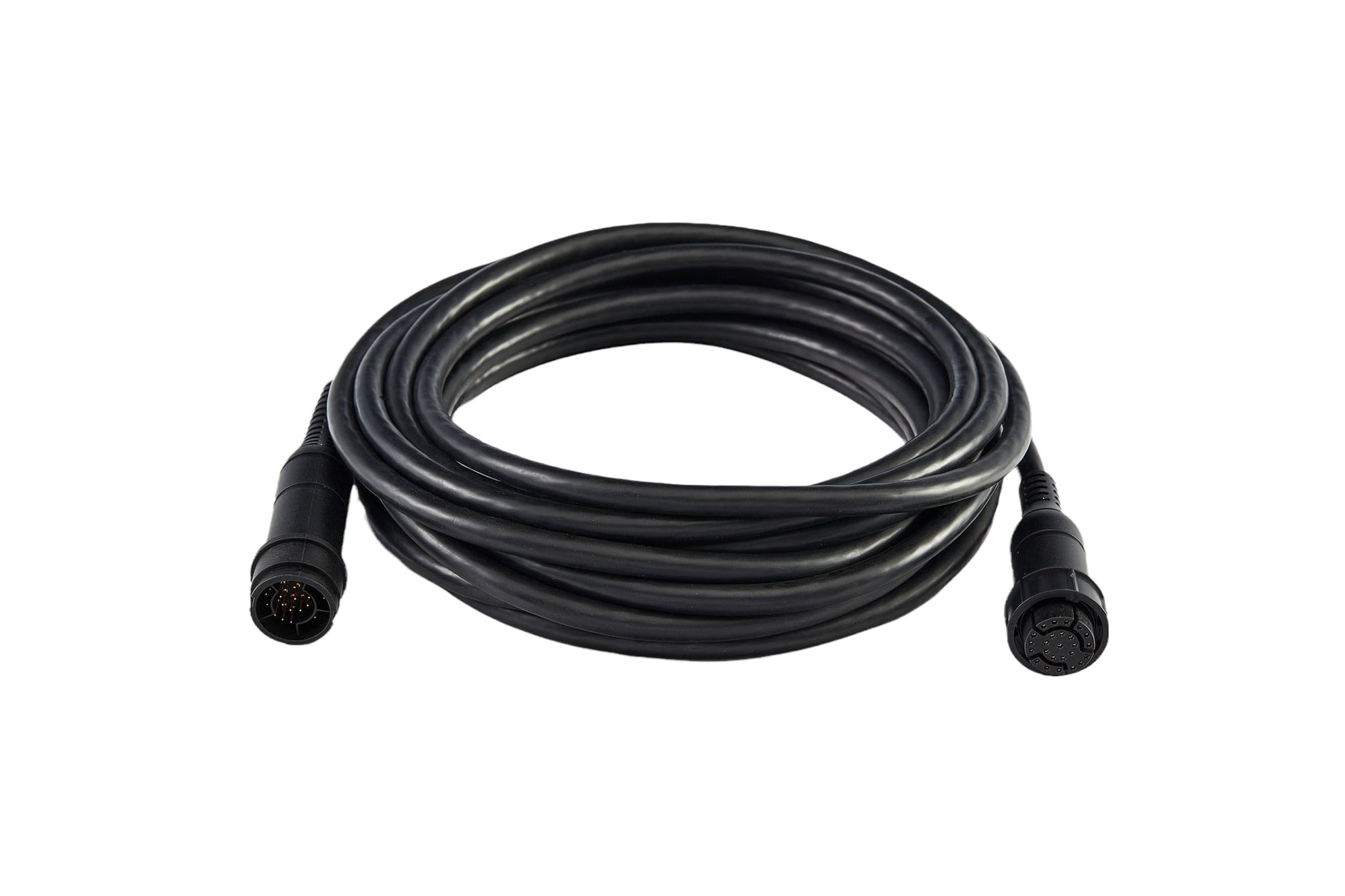

Raymarine 8m Extension Cable For RealVision 3D Transducers

Product Description

Raymarine 8m Extension Cable for RealVision 3D Transducers extends connectivity between RV transducers and Axiom MFDs.

Product Overview

Boat installers use this extension cable to position RealVision 3D transducers farther from chartplotters while maintaining 3D sonar imaging quality. It supports RV-100 transom-mount and RV-200/RV-300 thru-hull transducers for marine fishfinding and navigation on larger vessels.

Key Specifications

• 8 meters (26.2 feet) length for extended transducer placement.

• 25-pin twist-lock connectors at both ends for secure connection.

• Waterproof construction rated for saltwater immersion.

• Compatible with all RealVision 3D sonar transducers and RVX modules.

Technical Specifications

• Preserves CHIRP DownVision, SideVision, and 3D imaging signals without degradation.

• Connects RVX1000/1600 sonar modules and Axiom/Axiom+ displays.

• Supports 600W RMS power handling across full cable length.

• Recommended maximum of two extension cables per transducer run.

What's in the Box

• Single A80477 8m RealVision 3D Transducer Extension Cable.

• No mounting hardware or additional connectors included.
