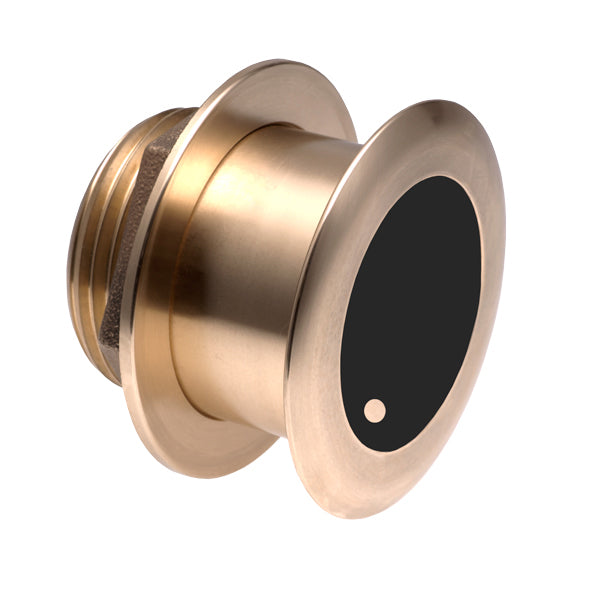

Raymarine A80049 B175-M 20 Degree Tilt

Product Description

Raymarine B175-M 20° Tilt is a bronze through-hull CHIRP transducer designed for medium-frequency depth and temperature sensing.

Product Overview

This low-profile transducer mounts through the hull on boats with 16-24° deadrise, delivering clear target resolution in mid-depth waters for marine navigation and fishing. The 20° tilted element orients the beam vertically for optimal performance at speed.

Key Specifications

• Medium CHIRP frequency: 85-135 kHz with 50 kHz bandwidth.

• 1 kW RMS power handling; 9.1m (30 ft) cable.

• Beamwidth: 16° to 11° for fish separation and bottom detail.

• Bronze housing (3.75" diameter) for fiberglass/wood hulls.

Technical Specifications

• Maximum depth: 1,500 ft (457 m) with fast-response temperature sensor.

• Compatible with CP450C/CP470/CP570 (requires A80328 single cable or A102146 Y-cable).

• Low-profile design minimizes drag; 20° tilt corrects hull angle.

• Hull deadrise: 16-24°

What's in the Box

• B175-M transducer with 30 ft cable.

• Mounting hardware for through-hull installation.

• No Y-cable or extension included.
