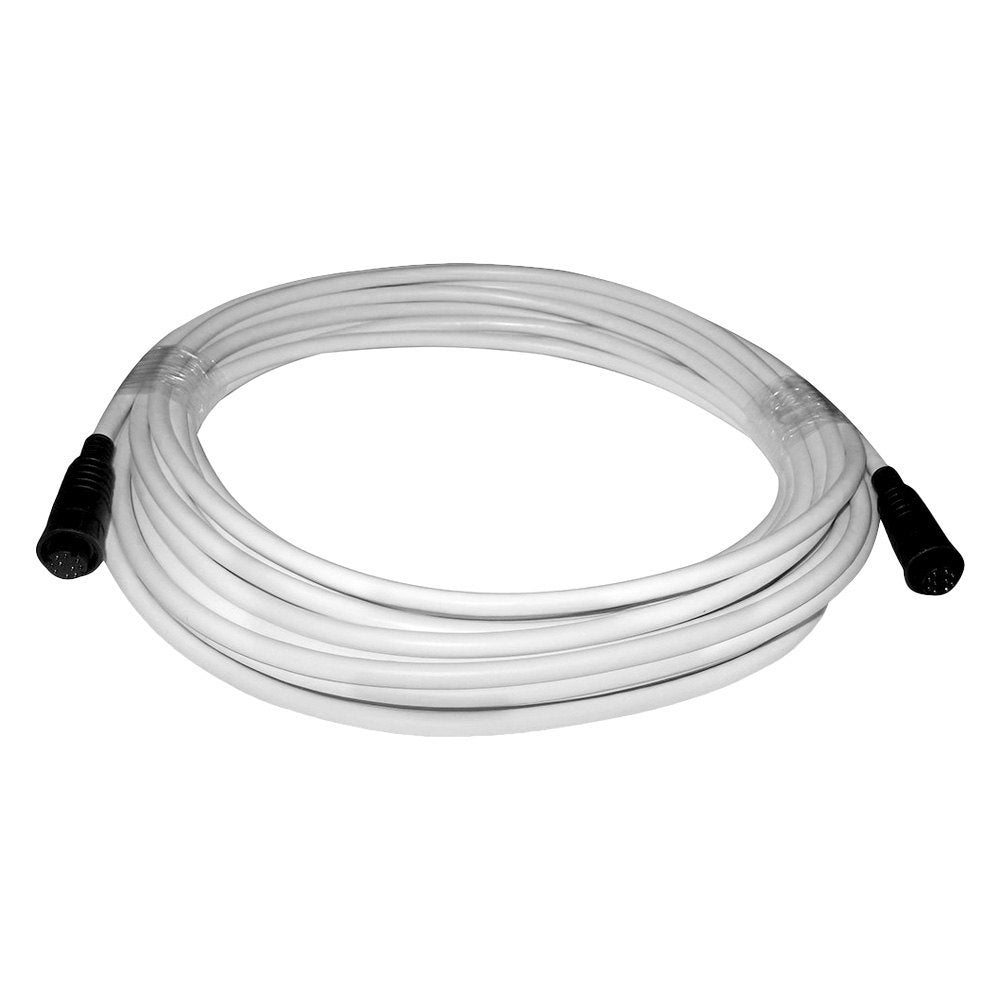

Raymarine A80275 10M Radar Cable For Quantum

Product Description

Raymarine 10M Radar Cable connects Quantum radar domes to Raymarine multifunction displays via RayNet networking.

Product Overview

This data cable supports Quantum CHIRP pulse compression radars in marine navigation systems for larger vessels requiring extended cable runs. It provides reliable Ethernet connectivity between radome and displays like Axiom Pro or Element series. The 10-meter length accommodates masthead or flybridge installations.

Key Specifications

• 10 meters (32.8 feet) length with RayNet connectors on both ends.

• Designed specifically for Quantum Q24C, Quantum 2, and Quantum 2 Doppler radars.

• Waterproof RayNet connectors for marine network reliability.

• White cable jacket for professional deck routing.

Technical Specifications

• High-speed Ethernet supports radar video, target tracking, and overlays.

• Compatible with Lighthouse OS chartplotters and RayNet switches.

• Network powered with 12-24V DC compatibility.

• Extends total network runs up to 50m with multiple segments.

What's in the Box

• Single A80275 10m Quantum Radar Data Cable with RayNet connectors.

• No adapters or mounting hardware included.
