Raymarine ACU (Actuator Control Unit) Series
The Raymarine ACU series provides crucial power and control to Evolution autopilot drive units for a wide range of vessels and steering systems. Each model offers specific drive output capabilities tailored to different boat sizes, steering types, and power requirements—from small hydraulic drives to large mechanical and electric solenoid-controlled steering systems.
Models: E70098 (7A) | E70430 (12A) | E70098 (15A) | E70098 (30A)
Key Features and Specifications
| Model | Max Continuous Output Current | Drive Type Compatibility | Recommended Boat Size (Max Displacement) | Operating Voltage Range | Power Consumption (Standby) | Waterproof Rating | Typical Application |
|---|---|---|---|---|---|---|---|

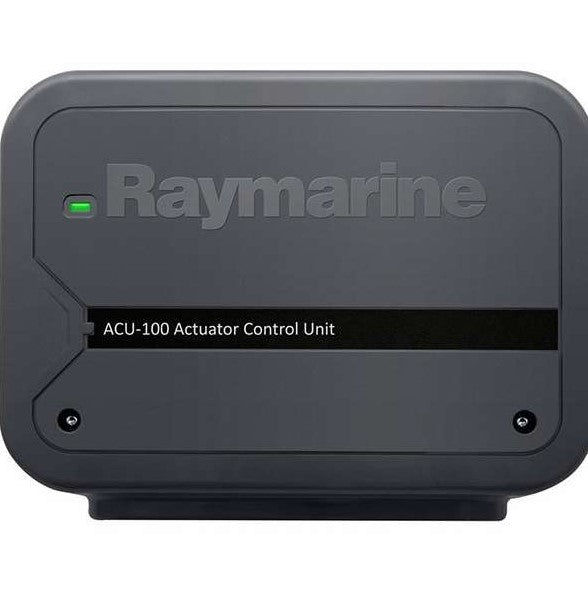

| ACU-100 | 7 A | Hydraulic steering only | Small boats and tiller pilots | 10.8–15.6 V DC | 300 mA @ 12 V | IPX6 (Drive Electronics) | Small hydraulic drives, tiller or wheel steering |

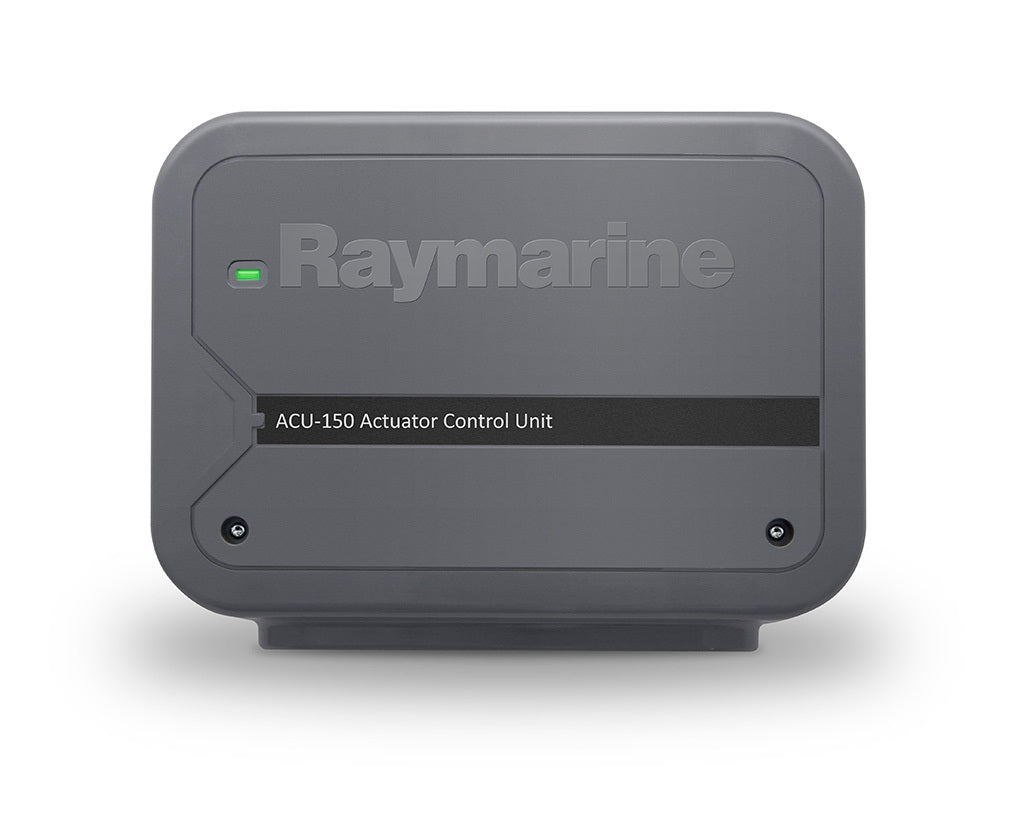

| ACU-150 | 12 A | Hydraulic (Type 1) | Medium hydraulic steering systems | 10.8–31.2 V DC | Similar to ACU-100 | IPX6 | Type 1 hydraulic systems requiring moderate power |

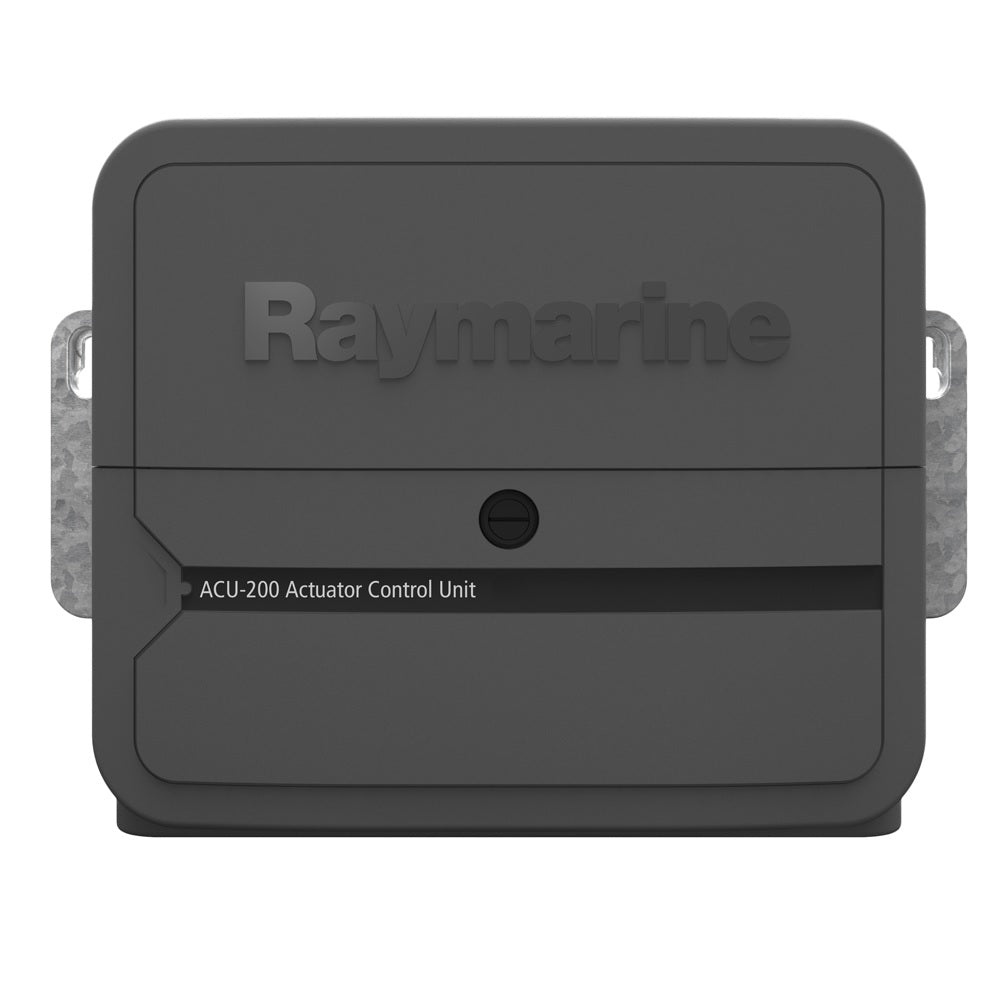

| ACU-200 | 15 A | Type 1 hydraulic, mechanical linear and rotary drives | Medium boats (up to ~11,000 Kg) | 10.8–31.2 V DC | 300 mA main power; 20 mA SeaTalkng power | IPX6 | Mechanical linear, rotary and hydraulic drives |

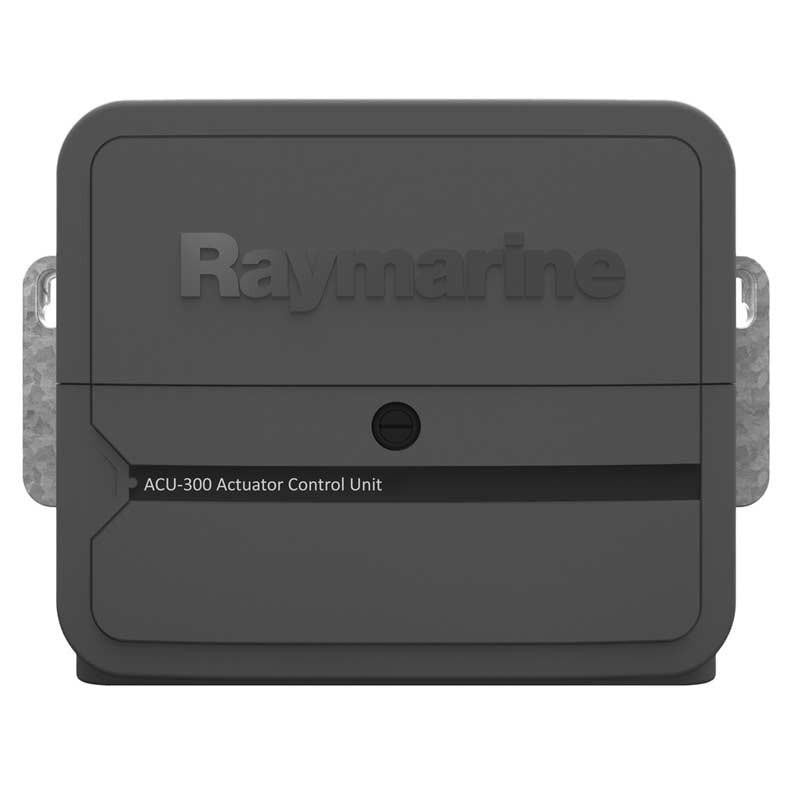

| ACU-300 | 30 A | Solenoid-controlled steering | Larger power and sailing vessels | 10.8–31.2 V DC | 300 mA main power; 20 mA SeaTalkng power | IPX6 | Hydraulic power steering with solenoids |

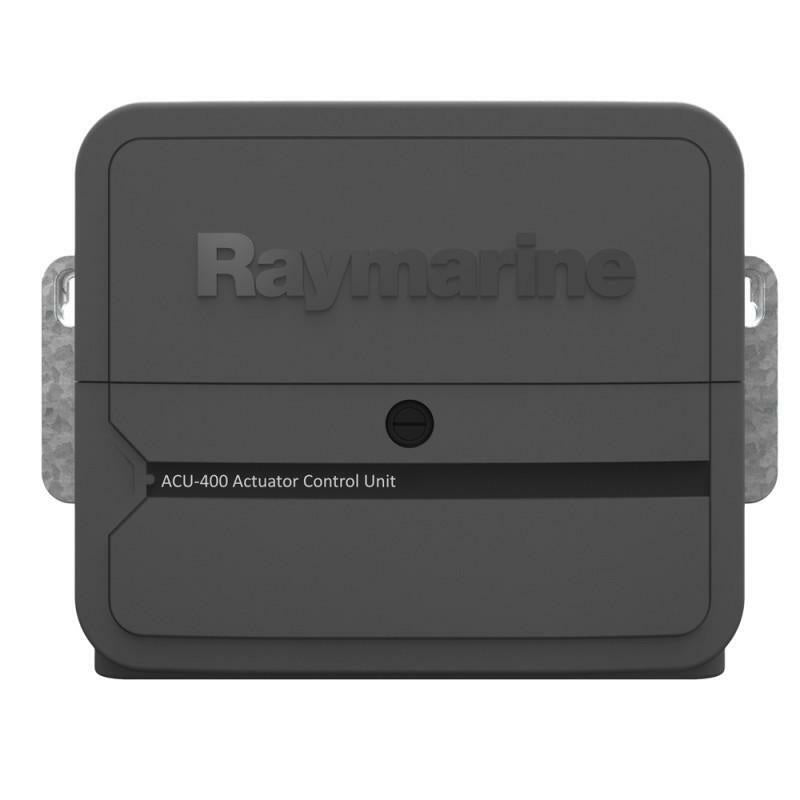

| ACU-400 | 30 A | Type 2 & Type 3 mechanical and hydraulic drives | Large vessels (up to ~20,000 Kg) | 10.8–31.2 V DC | 300 mA main power; 20 mA SeaTalkng power | IPX6 | Heavy-duty mechanical and hydraulic steering |
Additional Details
-
Drive Selection: Depends on boat displacement, steering system type (hydraulic, mechanical, solenoid), and power needed for reliable steering under expected conditions.
-
Hydraulic Steering: ACU-100 and ACU-150 suit smaller to medium hydraulic systems; ACU-200, ACU-300, and ACU-400 when more power or advanced drive compatibility is needed.
-
Mechanical Steering: ACU-200, ACU-300, and ACU-400 increasingly accommodate larger or more power-demanding systems.
-
Power Supply: Operates on 12/24 V DC power with broad voltage tolerance.
-
Connectivity: SeaTalkNG interface for integration into Raymarine autopilot networks.
-
Environmental Protection: Drive electronics rated IPX6 for marine durability.
Typical Applications
| Model | Steering Type | Vessel Size and Use |
|---|---|---|
| ACU-100 | Hydraulic (small tiller and wheel) | Small sailboats and motor boats |
| ACU-150 | Hydraulic (Type 1) | Medium hydraulic systems |
| ACU-200 | Hydraulic and mechanical (Type 1) | Medium-sized powerboats and sailboats |
| ACU-300 | Solenoid-controlled hydraulic | Large hydraulic powerboats |
| ACU-400 | Mechanical Type 2/3 and high power hydraulic drives | Large power and sail vessels up to 20,000 kg |
What’s in the Box
Each ACU model typically includes:
-
Actuator Control Unit housing and electronics
-
Power and network connectors
-
Mounting hardware
-
Installation and operational manual
