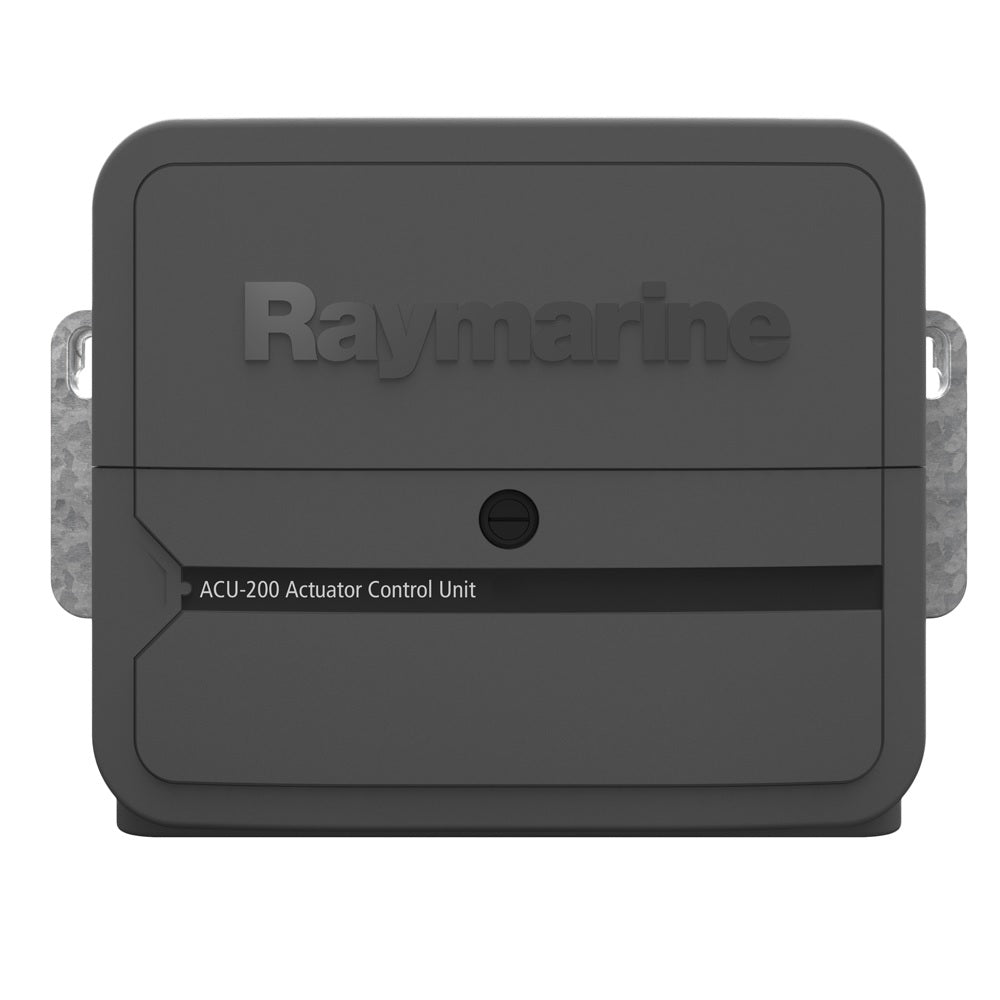

Raymarine ACU-200 Actuator Control Unit

7 A at supply voltage

at supply voltage

30 A at supply voltage

• Up to 4 A continuous at 12 V on 12 V systems,
• Up to 4 A continuous at 24 V on 24 V systems,
• Up to 4 A continuous at 12 V on 24 V systems

• Rudder reference sensor
• Power
• Drive motor
• Ground

• Rudder reference sensor
• Sleep switch
• Power
• Drive motor
• Drive clutch
• Ground

• Rudder reference sensor
• Sleep switch
• Power
• Solenoid drive out / return
• Ground

• Rudder reference sensor
• Sleep switch
• Power
• Drive motor
• Drive clutch
• 723193767962 Ground
• Digital Input / Output (DIO)

12 V

12 V or 24 V

10.8 V to 15.6 V dc

10.8 V to 31.2 V dc

300 mA (12V)

300 mA (12/24 V)

No power supply to SeaTalk^ng&nbs p;

20 mA (12V)

(Load Equivalency Number)

1

No power supply to SeaTalk^ng

3 A at 12 V (fuse protected at 3 A)

SeaTalk^ng

Operating temperature: -20°C to +55°C (-4°F to +131°F)

Storage temperature: -30°C to +70°C (-22°F to +158°F)

Relative humidity: max 93%

Connector panel: IPX2

Drive electronics: IPX6

Drip resistant

(W x H x D)

180 mm x 140 mm x

52 mm

(7.1 in x 5.5 in x 2.0 in)

285 mm x 211.5 mm x 64.5 mm

(11.2 in x 8.3 in x 2.5 in)

0.6 kg (1.32 lbs)

2.2kg (4.84 lbs)

Europe: 2004/108/EC

Australia and New Zealand: C-Tick, Compliance Level 2
