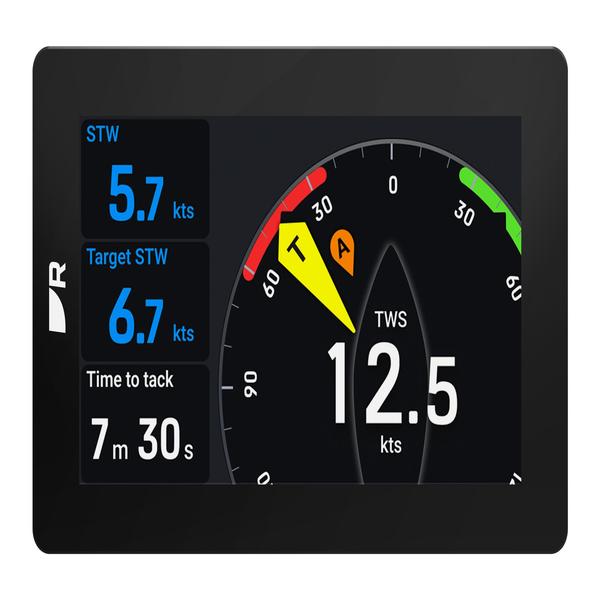

Raymarine Alpha 9 & 7 Performance Display.
Couldn't load pickup availability
Description
Description
Raymarine Alpha 9 & 7 Performance Displays
High‑Visibility Touch Displays for Sailing Data and Performance Analytics
The Raymarine Alpha Performance Series combines brilliant, sunlight‑viewable IPS touchscreens with adaptive sailing intelligence, enabling professional‑grade visualization of wind, navigation, and performance metrics. Designed for mast, helm, or cockpit mounting, Alpha displays deliver customizable real‑time insight into sailing polars, VMG, and performance targets — essential for racing and precision cruising.
The SailPoint™ mode provides a live graphical reference of target wind angles to maximize VMG upwind and downwind. Built for extreme offshore conditions, each display features Raymarine’s HydroTough™ nanocoating for consistent touch control in wet or salt‑spray environments and wide viewing angles for polarized lenses.
Model Numbers
- Alpha 9 Performance Display (9") – Model: E70650
- Alpha 7 Performance Display (7") – Model: E70649
Key Features
- Custom instrument layouts for wind, speed, depth, engine data and polar performance metrics.
- SailPoint™ Mode for optimal VMG tracking and up/downwind efficiency.
- Lockable touchscreen control with remote operation via Axiom chartplotter.
- HydroTough™ nanocoating repels water for responsive touch in heavy spray.
- 1500 nits luminance IPS display – sunlight readable with polarized glasses.
- Supports portrait or landscape mounting.
- Daisy‑chain up to 4 displays via RayNet with a single power/data cable per unit.
- Auto‑dimming sensor adjusts brightness to ambient light.
- Fully networked via Axiom chartplotters (LightHouse 4.5 or later) for live sailing analytics and transducer data.
Model Comparison
| Model | Alpha 9 (E70650) | Alpha 7 (E70649) |
|---|---|---|
| Display Size | 9" | 7" |
| Resolution | 1280 × 720 px | 1024 × 600 px |
| Brightness | 1500 nits | 1500 nits |
| Aspect Ratio | 16 : 9 | 15.4 : 9 |
| Viewing Angle | 85° portrait / 85° landscape | 85° portrait / 85° landscape |
| Touch Technology | Projected capacitive (PCAP) | Projected capacitive (PCAP) |
| Power Input | 10.8 – 32 V DC | 10.8 – 32 V DC |
| Power Consumption | 12.3 W @ 12 V | 10.1 W @ 12 V |
| Mount Option | Mast / Helm (landscape or portrait) | Mast / Helm (landscape or portrait) |
| Waterproof Rating | IPX6 / IPX7 | IPX6 / IPX7 |
| Networking | RayNet Ethernet / Daisy‑chain | RayNet Ethernet / Daisy‑chain |
| Dimensions (W × H × D) | 9.29" × 5.86" × 1.34" | 7.42" × 4.67" × 1.26" |
| Weight | 2.6 lb (1.18 kg) | 1.59 lb (0.72 kg) |
Technical Specifications
- Display Type: IPS TFT LCD (24‑bit color, 16.7 million colors)
- Refresh Rate: 60 Hz
- Voltage: 12 V / 24 V DC (10.8 – 32 V range)
- Operating Temp: –25 °C to +55 °C (–13 °F to +131 °F)
- Waterproof: IPX6 and IPX7 rated
- Connections: 1 × RayNet Ethernet / Power port + 1 × Daisy‑chain connector
What’s in the Box
Alpha 9 (E70650):
- Alpha 9 Performance Display
- Suncover and waterproof gasket
- Mounting brackets, M4 studs and thumb nuts
- Documentation
Alpha 7 (E70649):
- Alpha 7 Performance Display
- Suncover and waterproof gasket
- Mounting brackets, M4 studs and thumb nuts
- Documentation
