Raymarine Axiom+ Multi-Function Displays with Lighthouse North America Charts

Models:

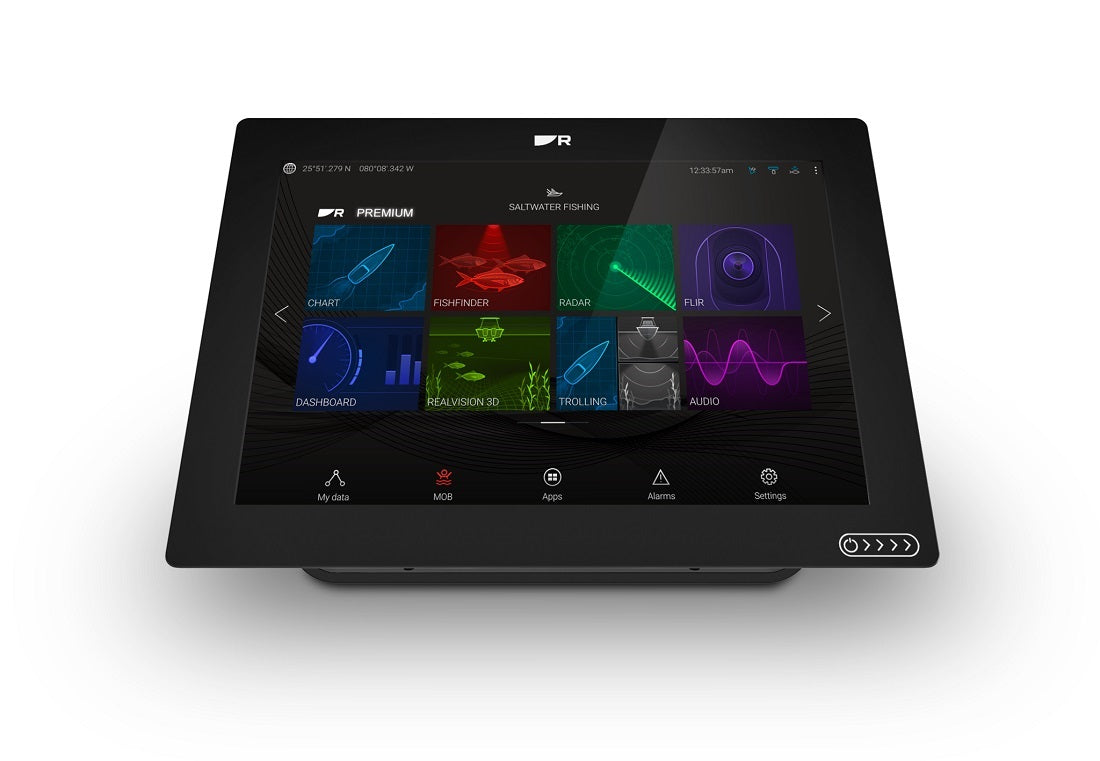

Axiom+ 12" Multi-Function Display | E70638-00-102

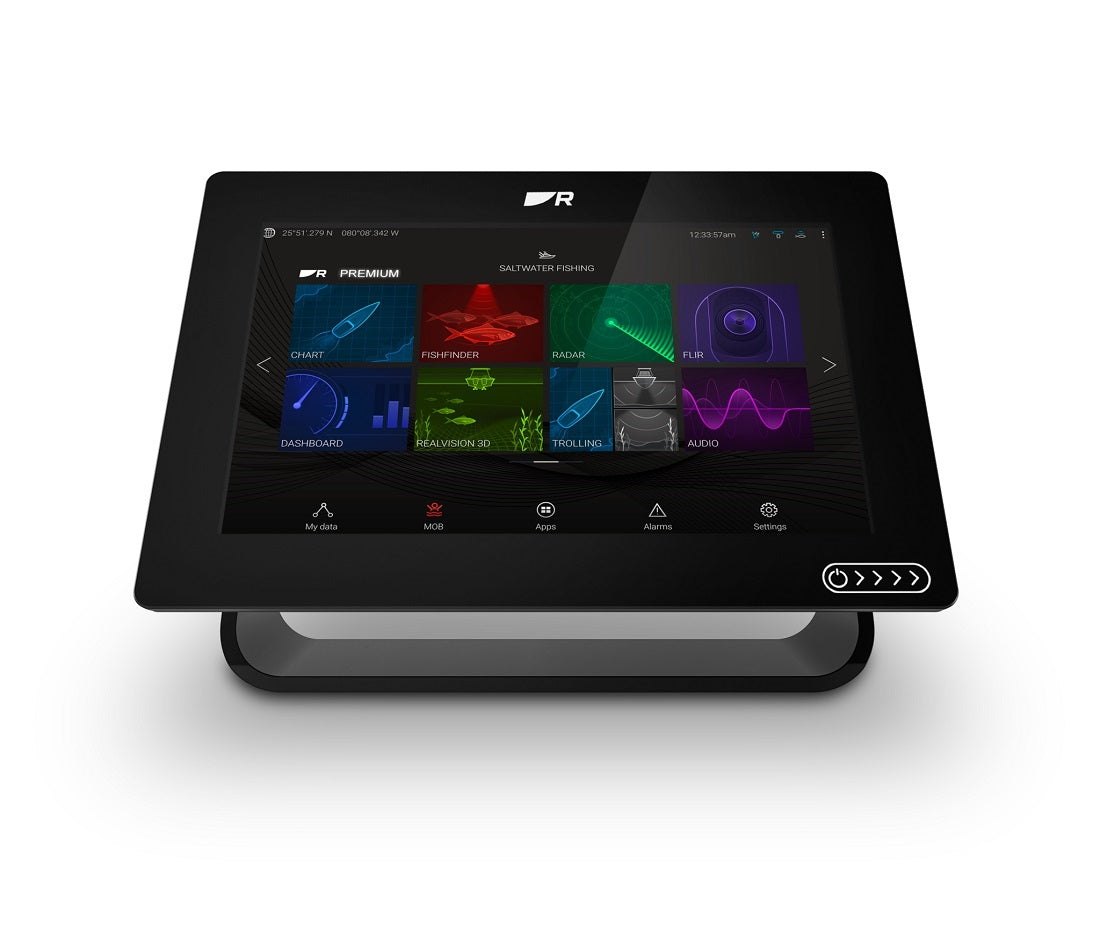

Axiom+ 9" Multi-Function Display |E70636-00-102

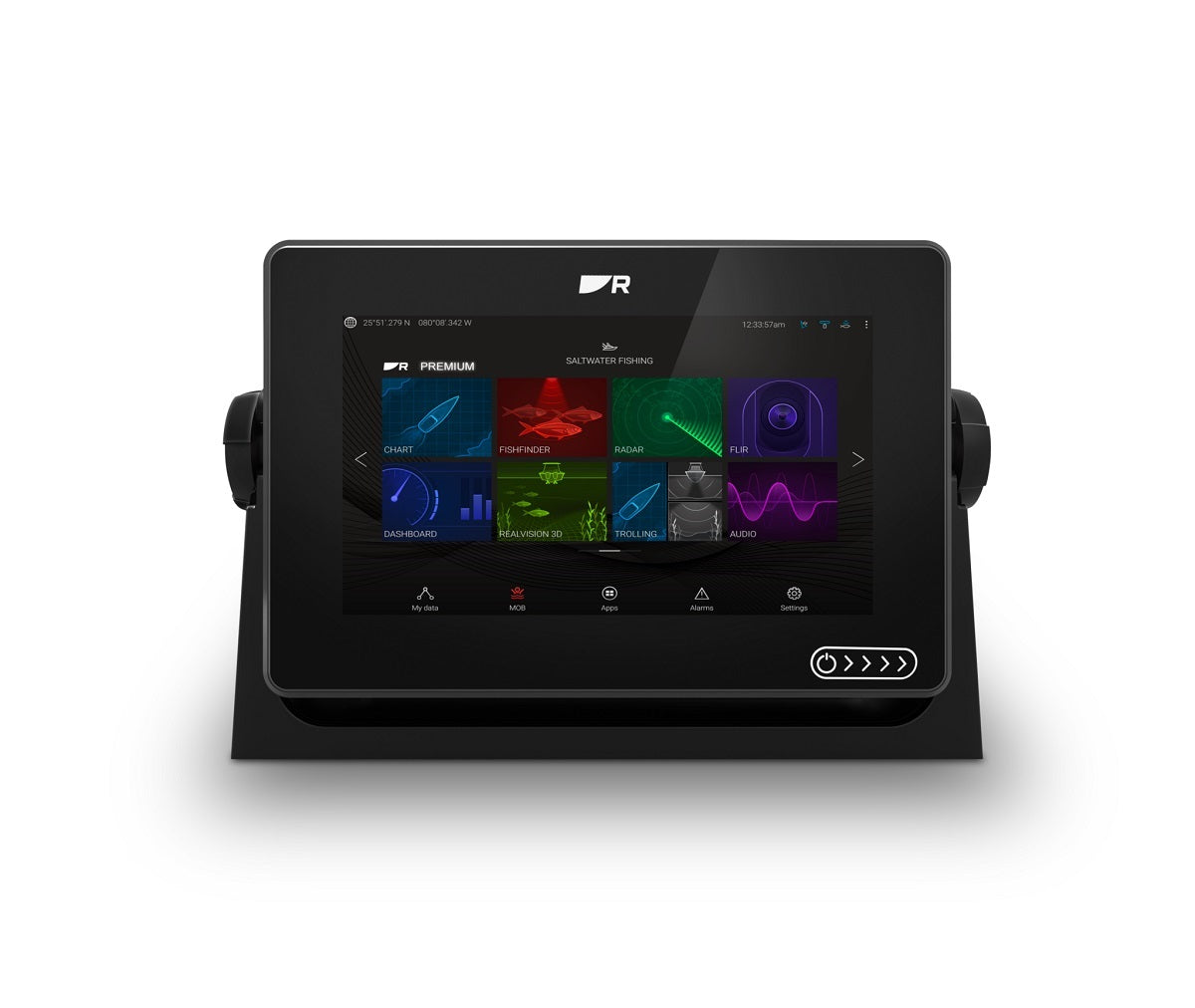

Axiom+ 7" Multi-Function Display | E70634-00-102

Product Description

The Raymarine Axiom+ series represents a new generation of award-winning multifunction displays designed for speed, accuracy, and ease of use. Equipped with powerful quad-core processors and increased onboard storage, these MFDs provide fluid, fast redraws of LightHouse, Navionics, and C-MAP electronic charts. The intuitive LightHouse 3 OS streamlines navigation, enhanced further by ClearCruise™ Augmented Reality for better situational awareness.

The displays feature nano-coated, impact-resistant glass that repels water, oil, and smudges for improved visibility and touch accuracy in all conditions. IPS screen technology offers wider viewing angles and sharper contrast, with brightness levels up to 1,800 nits, making them highly visible in bright sunlight. Networking capabilities allow connection with radars, sonar modules, thermal and IP cameras, Evolution Autopilot, and more.

Next-generation 10 Hz GPS/GNSS receivers with 4X increased sensitivity deliver precise navigation and positioning. These multifunction displays are engineered for marine environments, with rugged waterproof rating IPX6/IPX7 and operating temperature ranges from -25°C to +55°C.

Key Features

High-resolution IPS multitouch display with HydroTough™ nano coating
Quad-core processor and 16 GB solid-state onboard memory
Fast redraw of LightHouse, Navionics, and C-MAP charts
ClearCruise™ Augmented Reality-capable
Nano-coated, impact-resistant glass for durability and clear touch response
Brightness: 1,800 nits (12" model) / 1,500 nits (9" & 7" models)
Wide viewing angles (85°-88°) with sharp contrast
Built-in 10 Hz GPS/GNSS (GPS/GLONASS/Galileo/Beidou*) with 28 channels
Supports RealVision™ 3D sonar, Evolution Autopilot, FLIR thermal cameras, radar, and IP cameras
NMEA 2000, RayNet, USB, Wi-Fi, and Bluetooth connectivity
Waterproof IPX6/IPX7 standard; Operating temperature range -25°C to 55°C
24 language options
External memory support via MicroSD card slot

Comparison Table

Feature	Axiom+ 12" (E70638-00-102)	Axiom+ 9" (E70636-00-102)	Axiom+ 7" (E70634-00-102)
Display Size	12.1" WXGA (1280 x 720)	9.0" WXGA (1280 x 720)	7.0" WSVGA (1024 x 600)
Brightness	1,800 nits	1,500 nits	1,500 nits
Viewing Angle	88°	85°	85°
Power Consumption	15.48 W	8.95 W (11.98W RV Sonar version)	7.34 W (9.84W RV Sonar version)
Mounting Options	Surface, Flush, Trunnion	Surface, Flush, Trunnion	Surface, Flush, Trunnion
Dimensions (WxHxD)	12.36 x 8.54 x 3.0 in	9.65 x 6.22 x 3.0 in	7.92 x 5.24 x 3.0 in
GPS/GNSS	10 Hz, 28 channels	10 Hz, 28 channels	10 Hz, 28 channels
Sonar Built-in	None	None	None
External Sonar Option	Yes via RayNet	Yes via RayNet	Yes via RayNet
Radar Compatibility	Quantum, Digital, HD Colour, Magnum	Quantum, Digital, HD Colour, Magnum	Quantum, Digital, HD Colour, Magnum
AIS	Yes, NMEA2000 compatible	Yes, NMEA2000 compatible	Yes, NMEA2000 compatible
Wireless	Wi-Fi 802.11 a/b/g/n, Bluetooth v4.0	Wi-Fi 802.11 a/b/g/n, Bluetooth v4.0	Wi-Fi 802.11 a/b/g/n, Bluetooth v4.0
Cartography	LightHouse, Navionics, C-MAP	LightHouse, Navionics, C-MAP	LightHouse, Navionics, C-MAP
