Vendor: Raymarine
Sku: RAYE70638

Raymarine Axiom+ Chartplotter No Chart.

$1,979.95
$2,694.99 $1,979.95
Sold out
Shipping calculated at checkout.
Low stock: 2 left
Screen Size: 12 inch

Description

Caret Down

The Raymarine Axiom+ Series is a high-performance line of multifunction displays (MFDs) designed for seamless navigation, featuring fast processing, intuitive operation, and ultra-bright IPS displays. Available in 7", 9", and 12" models, Axiom+ displays run on the LightHouse 3 operating system and offer superior connectivity for radar, sonar, autopilot, and cameras.

Raymarine Axiom+ Multifunction Display

Models:

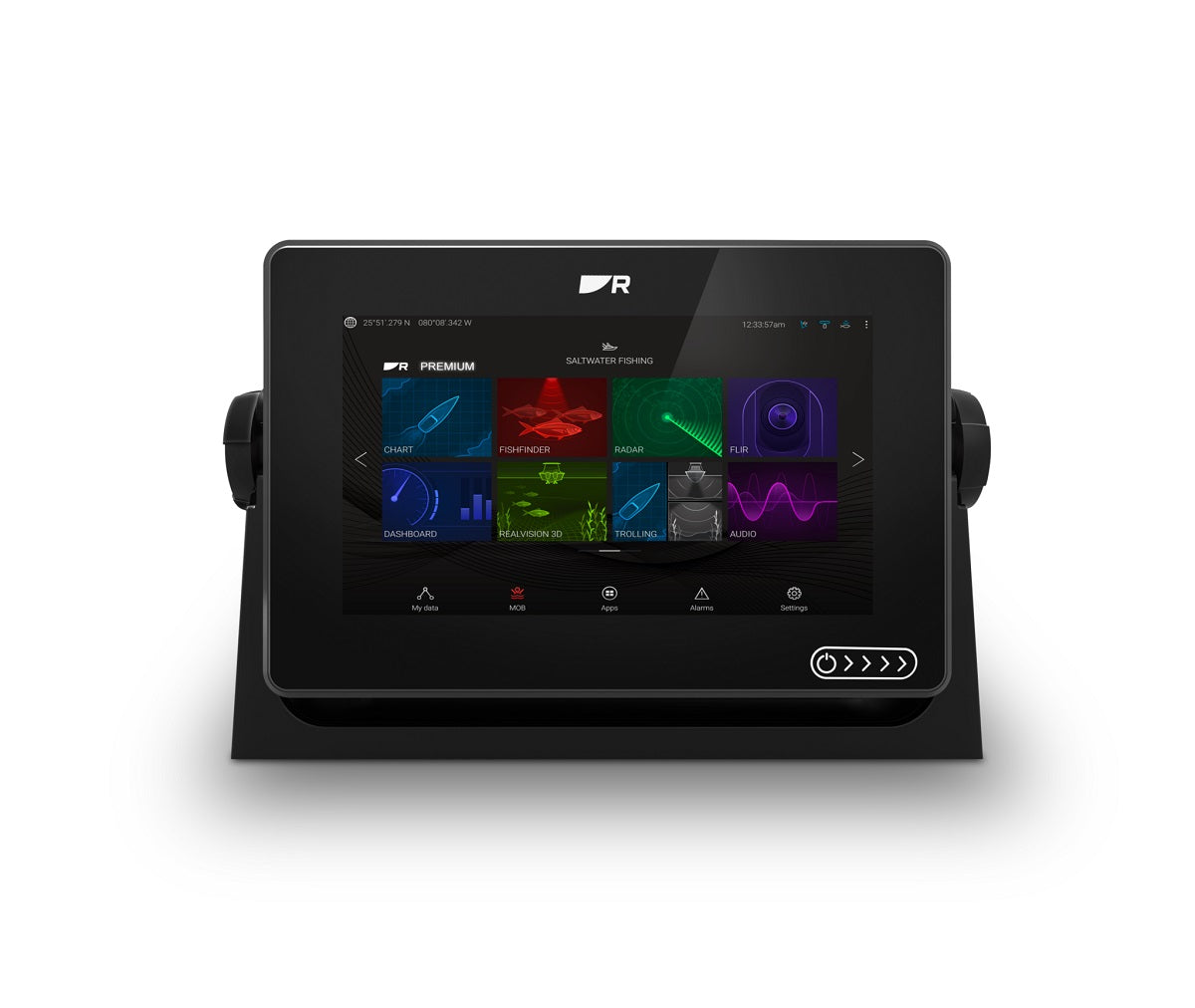

  • Axiom+ 7 (E70634)

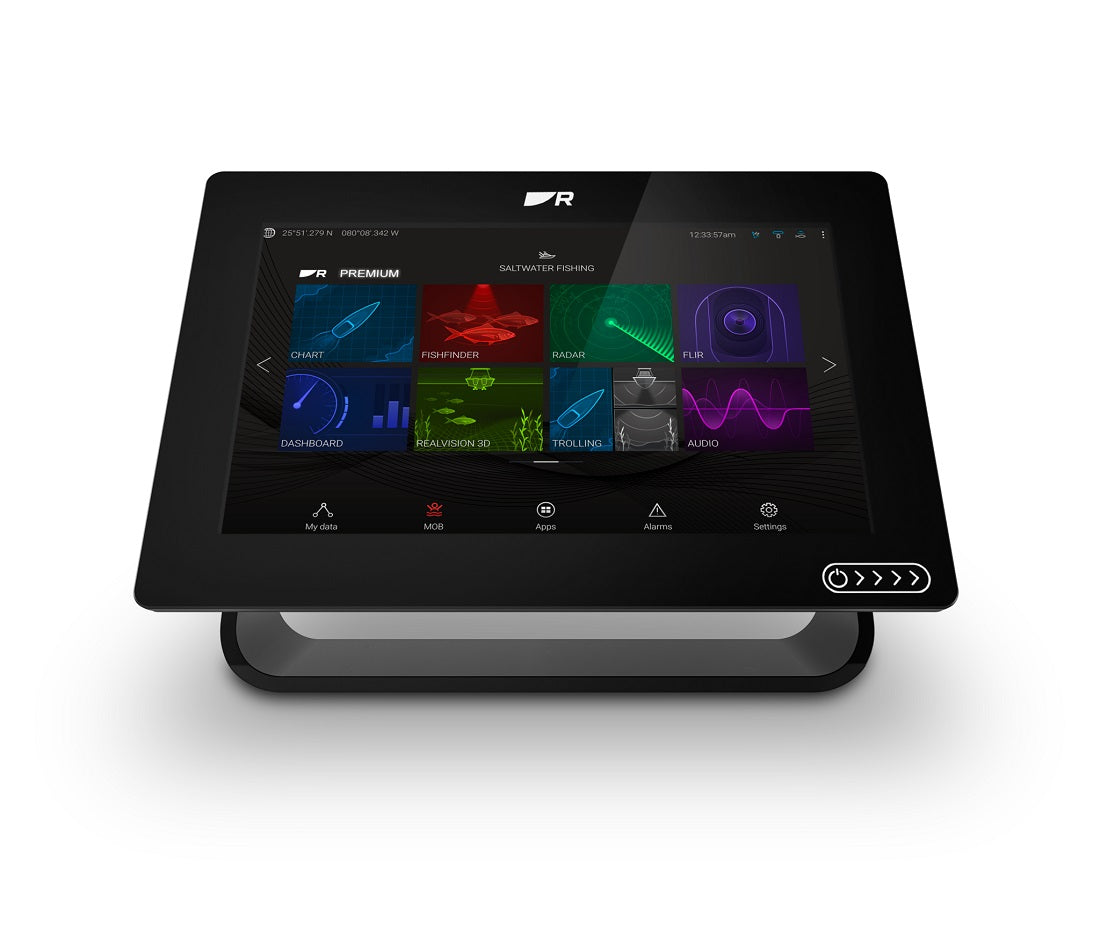

  • Axiom+ 9 (E70636)

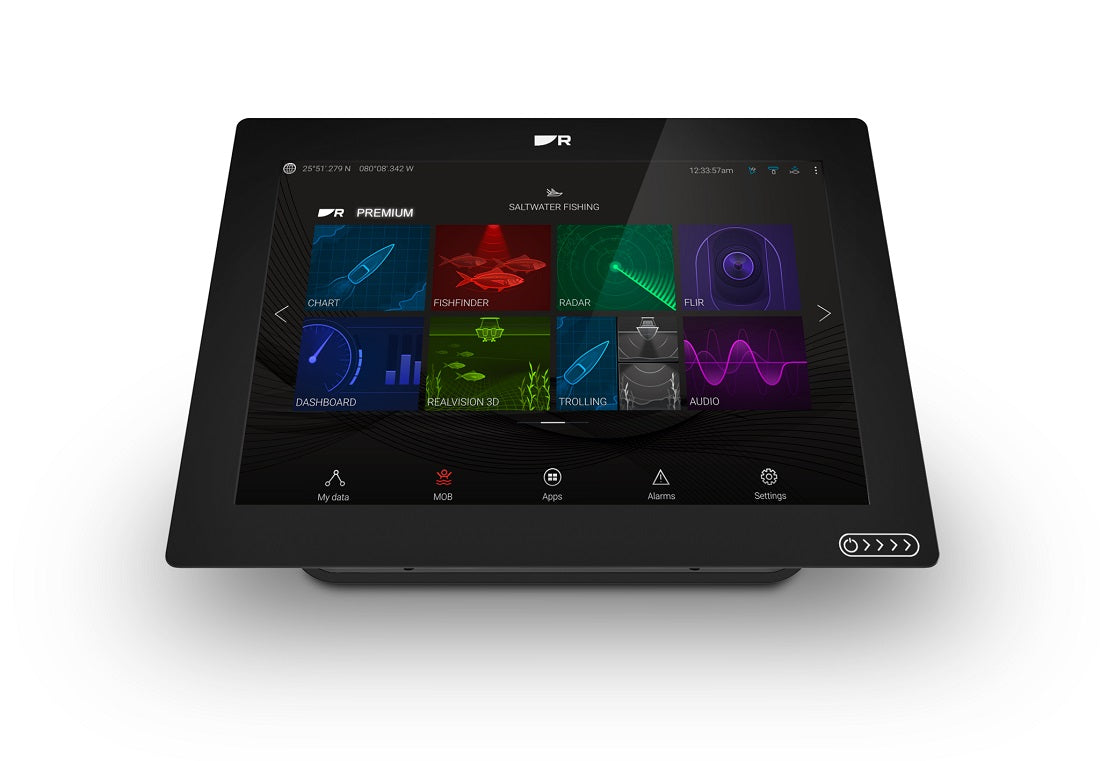

  • Axiom+ 12 (E70638)

Key Features

  • Powerful quad-core performance for fast chart redraws and fluid responses.

  • LightHouse 3 OS — intuitive and easy to use interface.

  • High-brightness IPS display with 25% more brightness and wide 85°–88° viewing angles.

  • Nano-coated “HydroTough” glass repels water, oil, and fingerprints for reliability in harsh marine environments.

  • ClearCruise™ Augmented Reality support for enhanced situational awareness.

  • 10Hz GPS/GNSS receiver (GPS/GLONASS/Galileo/Beidou) with 4× higher sensitivity.

  • Network connectivity via RayNet Ethernet, NMEA2000, Wi‑Fi, and Bluetooth 4.0.

  • Expandable system for radar, sonar, FLIR thermal cameras, digital switching, and remote control (RMK‑10).

  • Chart compatible with LightHouse Charts, Navionics, and C‑MAP.

Model Comparison

Specification Axiom+ 7 (E70634) Axiom+ 9 (E70636) Axiom+ 12 (E70638)
Display Size 7.0" IPS 9.0" IPS 12.1" IPS
Resolution 1024 × 600 1280 × 720 1280 × 720
Brightness 1,500 nits 1,500 nits 1,800 nits
Viewing Angle 85° all sides 85° all sides 88° all sides
Power Consumption 7.34 W 8.95 W 15.48 W
Dimensions (W×H×D) 7.92 × 5.24 × 3.0 in 9.65 × 6.22 × 3.0 in 12.36 × 8.54 × 3.0 in
Internal Memory 16 GB solid-state 16 GB solid-state 16 GB solid-state
External Memory 1× MicroSD slot 1× MicroSD slot 1× MicroSD slot
Mounting Options Surface / Flush / Trunnion Surface / Flush / Trunnion Surface / Flush / Trunnion
Waterproof Rating IPX6 / IPX7 IPX6 / IPX7 IPX6 / IPX7
Radar & Sonar Support Yes (external) Yes (external) Yes (external)
Operating Temp. Range -25°C to +55°C -25°C to +55°C -25°C to +55°C
Networking RayNet, NMEA2000, Wi‑Fi, Bluetooth RayNet, NMEA2000, Wi‑Fi, Bluetooth RayNet, NMEA2000, Wi‑Fi, Bluetooth


Connectivity & Compatibility

  • Radar: Quantum, Digital, HD Colour, Super HD Colour, and Magnum.

  • Sonar Modules (optional): CP100, CP200, CP370, CP470, CP570, RVX1000.

  • Autopilot: Compatible with Evolution Autopilot.

  • Thermal Imaging: Compatible with FLIR AX8, M232, M300, M400, M500.

  • Video: Supports CAM210IP, CAM220IP (up to 10 IP cameras).

  • Digital Switching: EmpirBus & C‑Zone compatible.

  • Audio: NMEA2000, Bluetooth speaker control, optional SiriusXM audio.

What’s in the Box

  • Raymarine Axiom+ Multifunction Display (size as per model)

  • Trunnion mount bracket and knobs (x2)

  • Suncover (Trunnion mount)

  • Panel mount gasket for surface/flush mounting

  • M5×58 threaded studs (x4) and M5 thumb nuts (x4)

  • Rear mounting brackets

  • DeviceNet to SeaTalkng® adaptor cable (120 mm / 4.7 in)

  • Power/NMEA2000 cable (1.5 m power + 0.5 m NMEA lead)

  • Documentation pack
